AudioCodes Mediant 800 MSBG - Table 3-3: Areas of the Home Page

SIP User's Manual 60 Document #: LTRT-12804
Mediant 800 MSBG
• LOCKED - device is locked (i.e. no new calls are accepted)
• UNLOCKED - device is not locked
• SHUTTING DOWN - device is currently shutting down
To perform these operations, see ''Maintenance Actions'' on page 333.
The table bel
ow describes the areas of the 'Home' page.

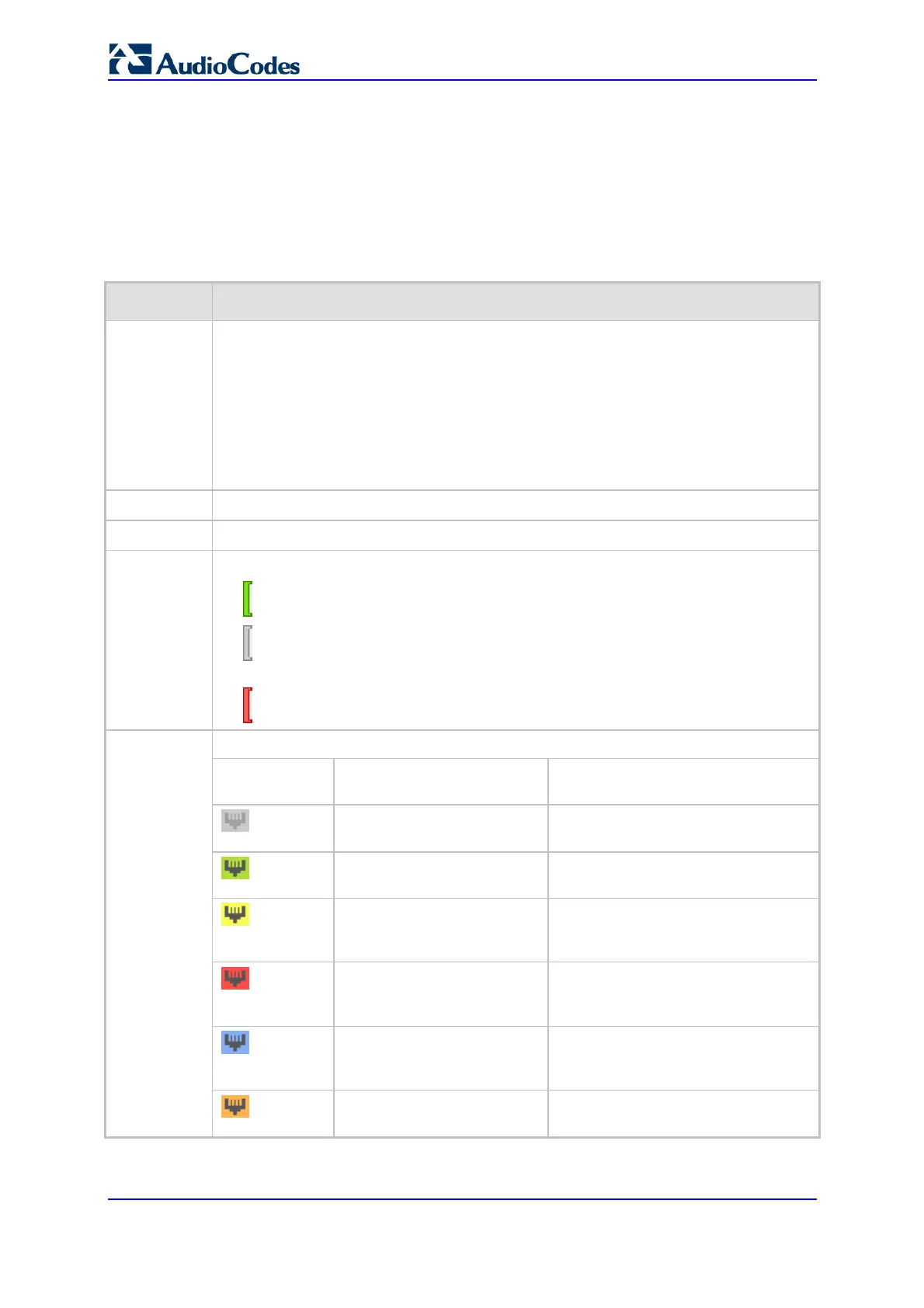

Table 3-3: Areas of the Home Page
Item # Description
1
Displays the highest severity of an active alarm raised (if any) by the device:
 Green = No alarms
 Red = Critical alarm
 Orange = Major alarm
 Yellow = Minor alarm
To view a list of active alarms in the 'Active Alarms' page (see "Viewing Active Alarms"
on page 349), click the Ala
rms area.
2
Module slot number (1 to 3).
3
Module interface type: FXS, FXO, DIGITAL (i.e., E1/T1 PRI), and BRI.
4
Module status icon:
 (green): Module has been inserted or is correctly configured
 (gray): Module was removed. 'Reserved' is displayed alongside the module's
name
 (red): Module failure. 'Failure' is displayed instead of the module's name
5
Port (trunk or channel) status icon.
Icon Trunk Description
(Digital Module)
Channel Description
(Analog Modules)
(gray)
Disable: Trunk not
configured (not in use)
Idle: Channel is currently on-hook
(green)
Active - OK: Trunk
synchronized
Call Connected: Active RTP stream
(yellow)
RAI Alarm: Remote Alarm
Indication (RAI), also known
as the Yellow Alarm
-
(red)
LOS/LOF Alarm: Loss due to
LOS (Loss of Signal) or LOF
(Loss of Frame)
Not Connected: No analog line is
connected to this port (FXO only)
(blue)
AIS Alarm: Alarm Indication
Signal (AIS), also known as
the Blue Alarm
Handset Offhook: Channel is off-
hook, but there is no active RTP
session
(orange)
D-Channel Alarm: D-channel
alarm
-
