Version 6.2 237 February 2011
SIP User's Manual 3. Web-Based Management
8. If EFM mode was selected, skip the following steps and proceed to ''Configuring
Ethernet WAN Interface'' on page 225.
9. Open
the 'Protocol Interface Settings' page (Configuration tab > Data menu > WAN
Access > Protocol Interface Settings); the current ATM interface list is displayed.

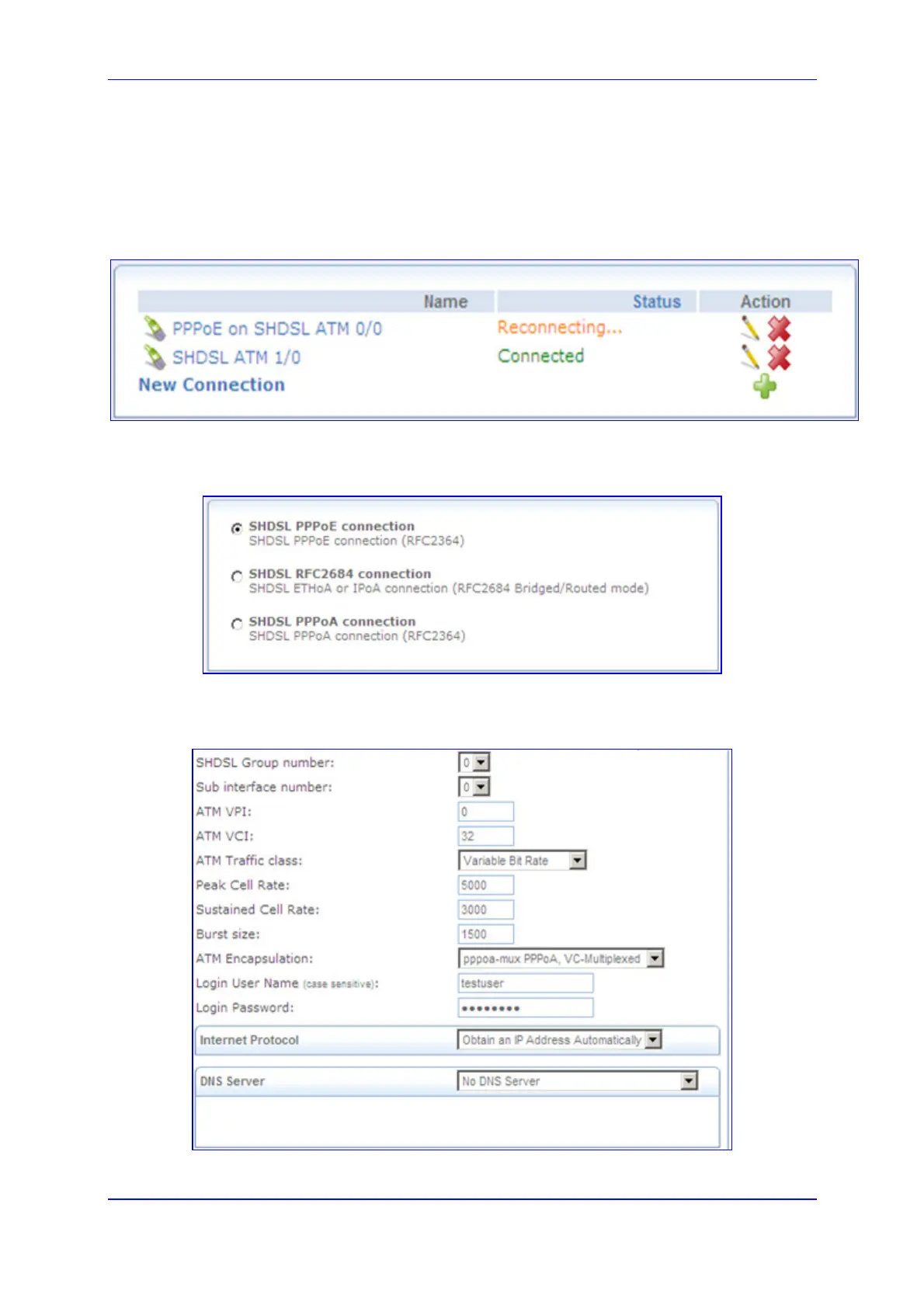

Figure 3-137: Protocol Interface Settings Page
10. Click New Connection, select the 'Internet Connection' option, and then click Next.
Figure 3-138: Choosing Internet Connection Type
11. Select the required IP encapsulation method, and then click Next.
Figure 3-139: Configuring Internet Connection
a. Select a unique sub-interface number for the new connection.
