Version 6.2 297 February 2011
SIP User's Manual 3. Web-Based Management
4. Select the 'Manual IP Address Configuration' option, and then click Next; a summary
of the new connection is shown.

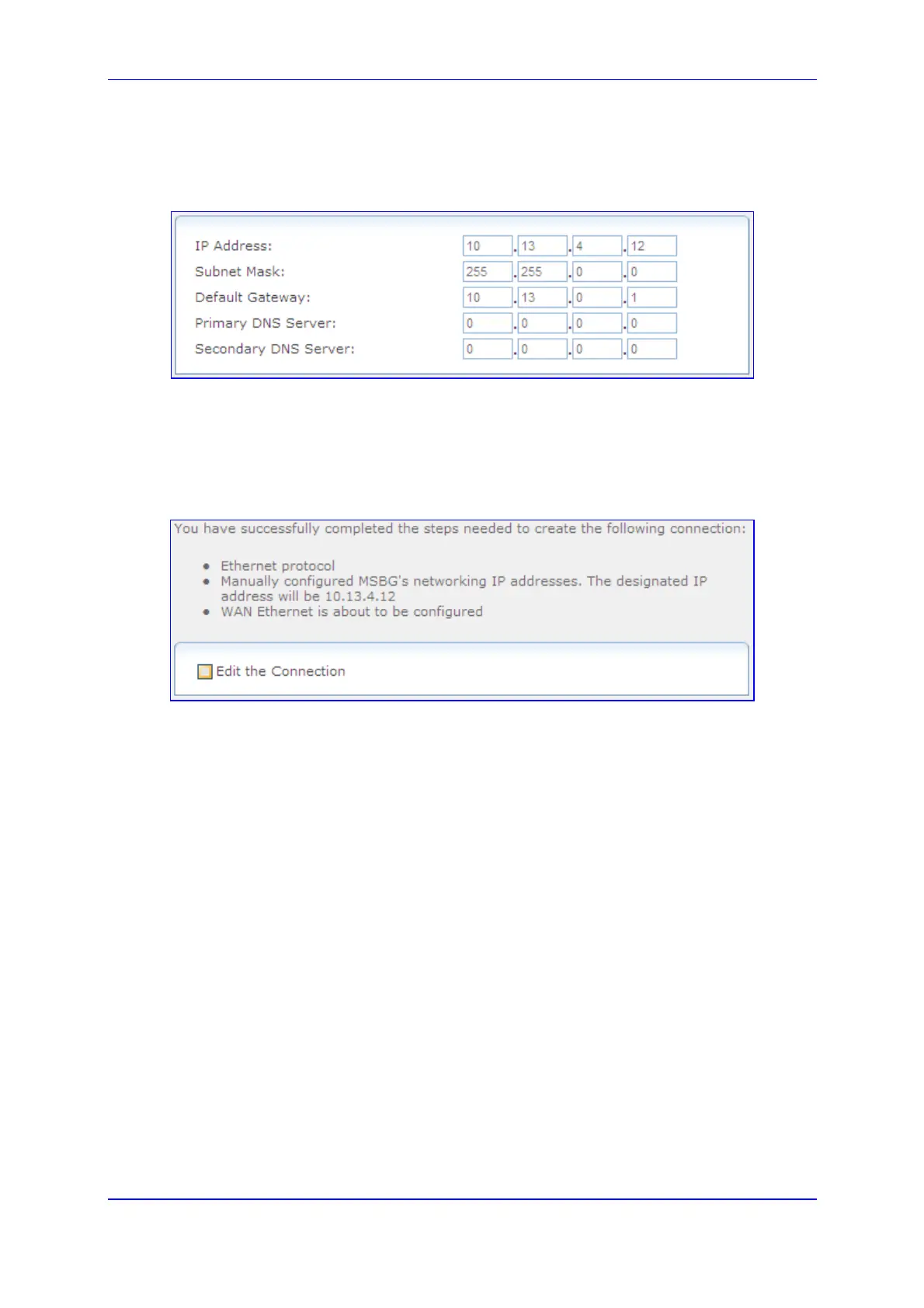

Figure 3-228: Manual IP Address Configuration
5. Enter the IP address, subnet mask, default gateway, and DNS server addresses in
their respective fields. These values should either be provided to you by your ISP or
configured by your system administrator.
6. Click Next; a summary of the new connection is shown.
Figure 3-229: Manual WAN Ethernet Added Successfully
7. Select the 'Edit the Connection' check box if you want to edit the new connection after
clicking Finish.
8. Click Finish to save the settings; the WAN Ethernet connection is added.
3.3.3.9.3.3 Point-to-Point Protocol over Ethernet (PPPoE)
Point-to-Point Protocol over Ethernet (PPPoE) relies on two widely accepted standards,
PPP and Ethernet. PPPoE enables your home network PCs that communicate on an
Ethernet network to exchange information with PCs on the Internet. PPPoE supports the
protocol layers and authentication widely used in PPP and enables a point-to-point
connection to be established in the normally multi-point architecture of Ethernet. A
discovery process in PPPoE determines the Ethernet MAC address of the remote device in
order to establish a session.
