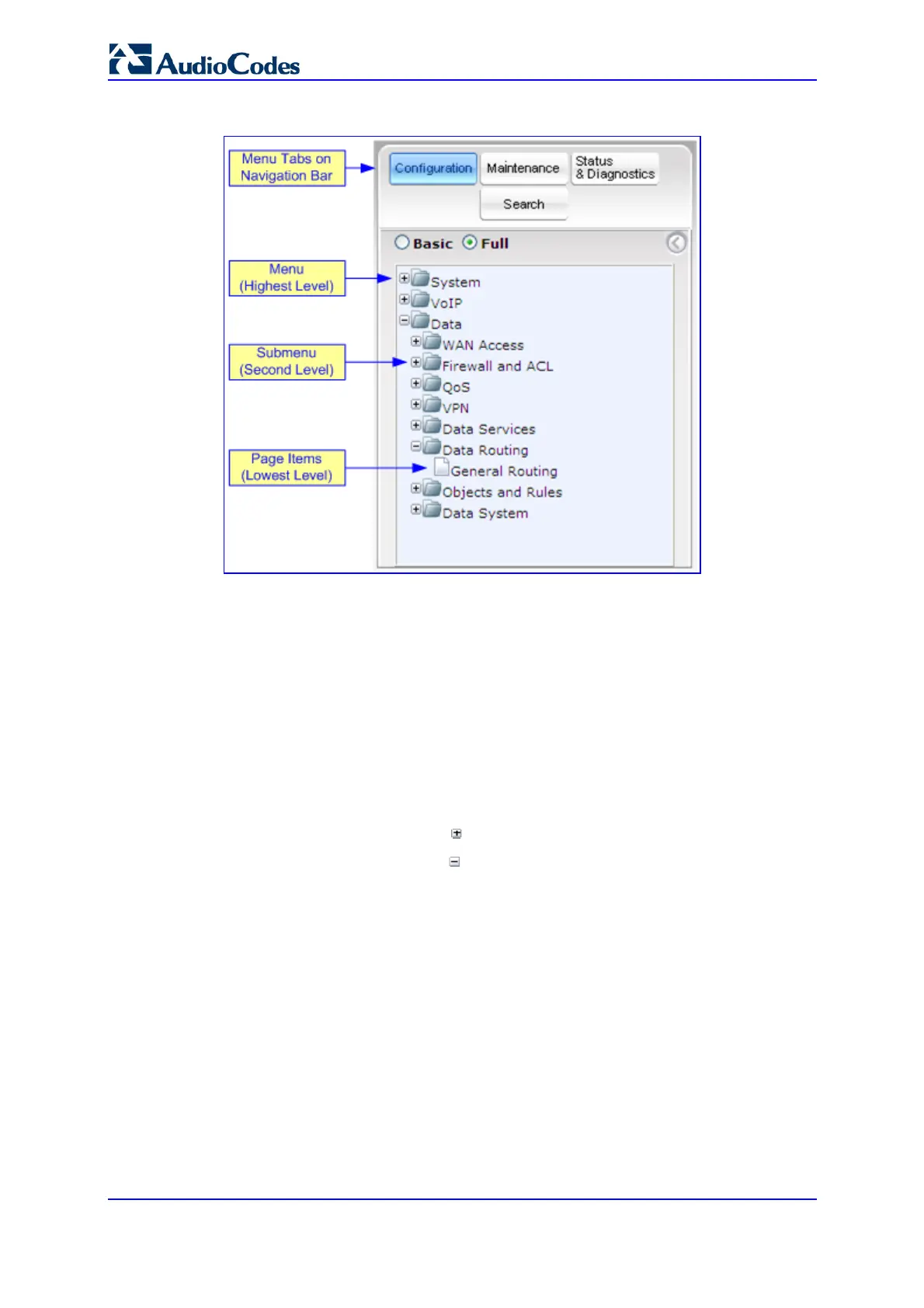

Figure 3-4: Navigation Tree
¾ To view menus in the Navigation tree:
On the Navigation bar, select the required tab:
• Configuration (see ''Configuration Tab'' on page 65)
• Ma
intenance (see ''Maintenance Tab'' on page 333)
• Statu
s & Diagnostics (see ''Status & Diagnostics Tab'' on page 346)
¾ To navigate to a page:
1. Navigate to the required page item, by performing the following:
• Drilling-down using the plus
signs to expand the menus and submenus
• Drilling-up using the minus
signs to collapse the menus and submenus
2. Select the required page item; the page opens in the Work pane.
3.1.5.1 Displaying Navigation Tree in Basic and Full View
You can view an expanded or reduced Navigation tree display regarding the number of
listed menus and submenus. This is relevant when using the configuration tabs
(Configuration, Maintenance, and Status & Diagnostics) on the Navigation bar.
The Navigation tree menu can be displayed in one of two views:
Basic: displays only commonly used menus
Full: displays all the menus pertaining to a configuration tab.
The advantage of the Basic view is that it prevents "cluttering" the Navigation tree with
menus that may not be required. Therefore, a Basic view allows you to easily locate
required menus.
