Table 76 – Example SkyView/SV-XPNDR-261/262 Serial Port Connections

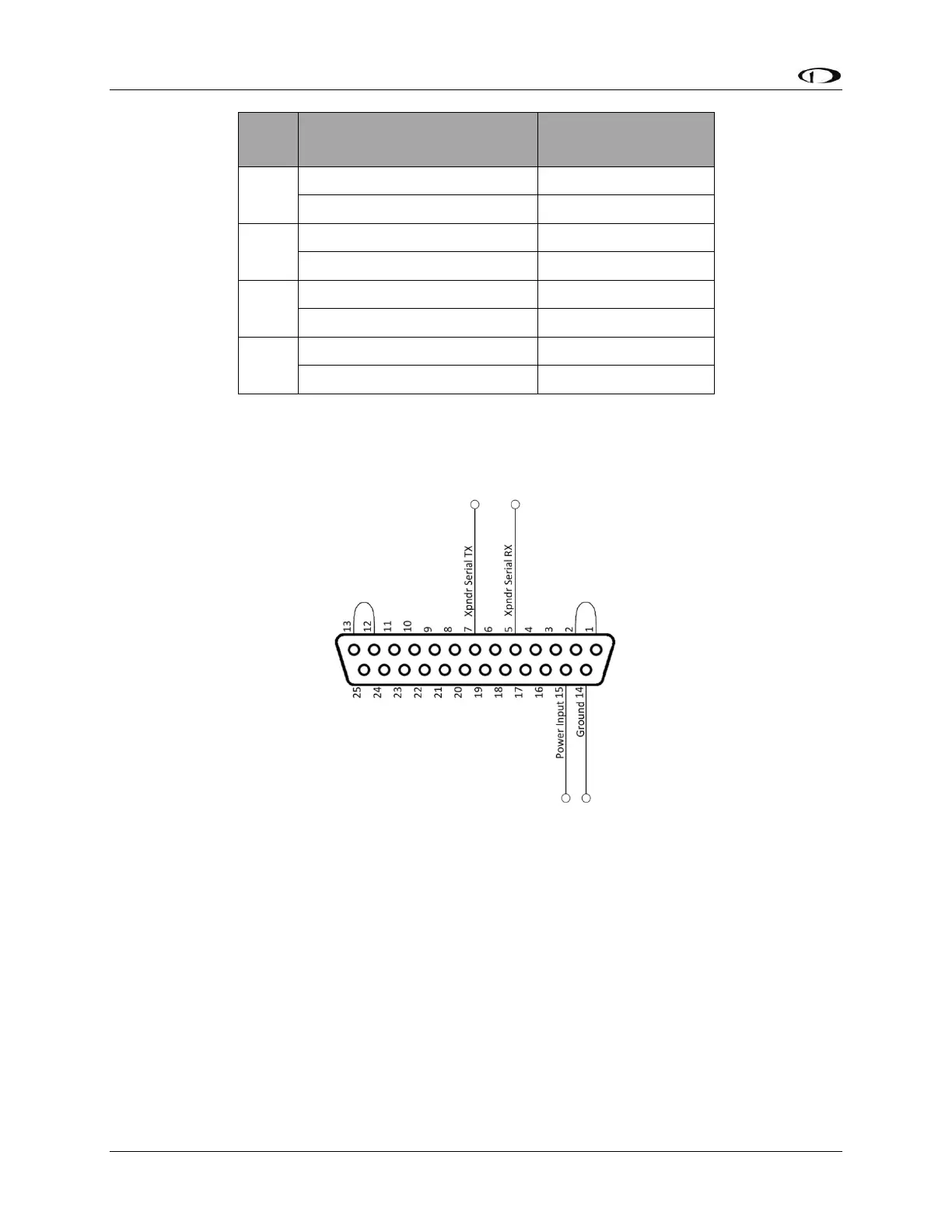

Figure 132 below shows a typical set of connections for the SV-XPNDR-261/262 D25 connector,
as viewed from the wiring side of the D25 connector:
Figure 132 – Typical SV-XPNDR-261/262 Connections (Rear Pin Insertion View)
Figure 133 below shows all possible connections, as viewed from the wiring side of the D25
connector:
