Configuring the ECN330-switch
122 1553-KDU 137 365 Uen D 2006-06-16
• Write View – The configured view for write access. (Range: 1-32
characters)
• Notify View – The configured view for notifications. (Range: 1-32
characters)
Note: Refer to the Alarm Description manual for a list of supported
notification messages.
Web – Click SNMP, SNMPv3, Groups. Click New to configure a new group. In
the New Group page, define a name, assign a security model and level, and then
select read and write views. Click Add to save the new group and return to the
Groups list. To delete a group, check the box next to the group name, then click
Delete.

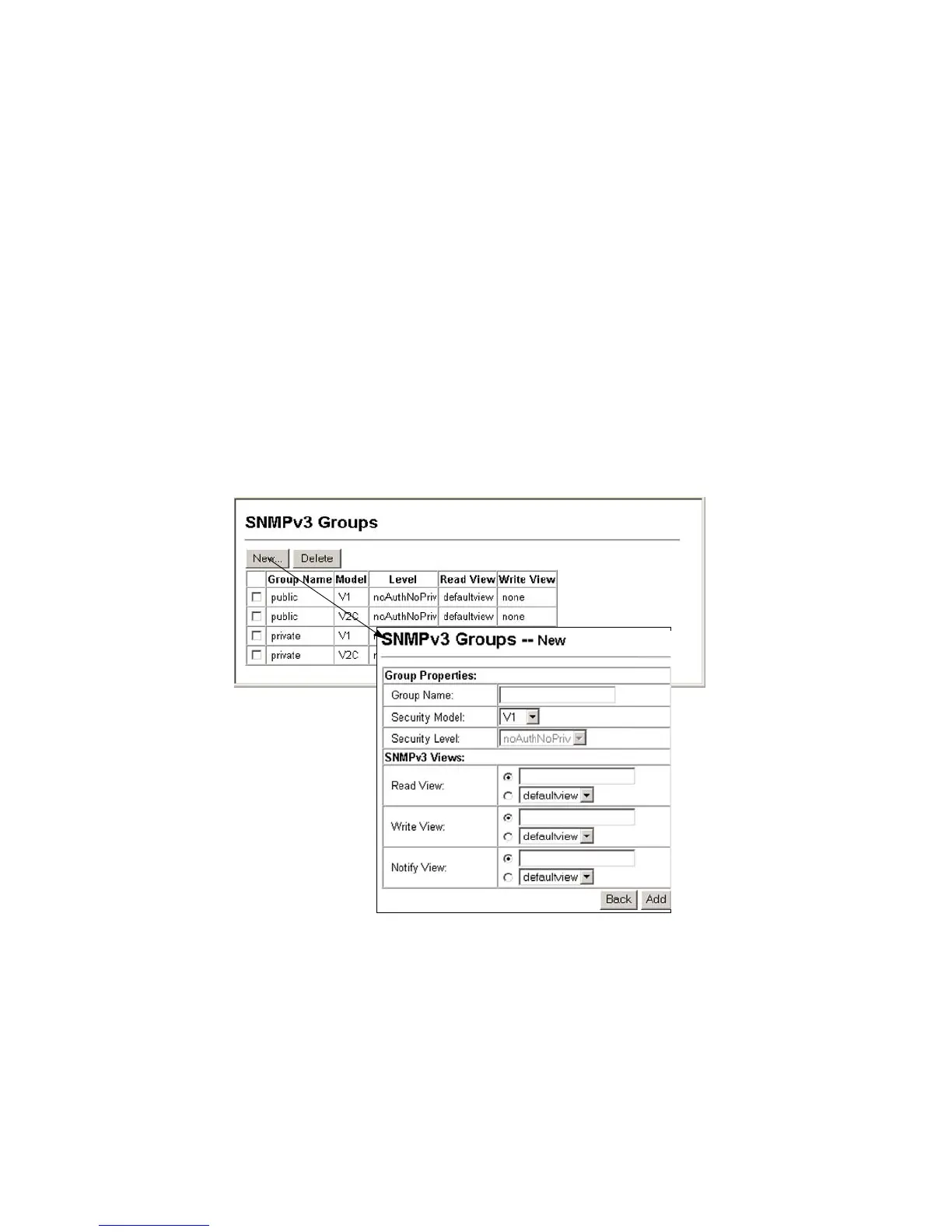

Figure 40 Configuring SNMPv3 Groups
