• Each EAPS domain can have only one master node.
• The hello timer and fail timer must be configured on the master node.
Afterwards, the master node will send timer configuration messages to
the transit nodes to reset their hello-timer and fail-timer.
• One VLAN must be added to an EAPS domain as the CVLAN. This can
be designated as any VLAN, other than the management VLANs (246-
249, 4093). The CVLAN should only contain ring ports, and must NOT
be configured with an IP address.
6.11.1 EAPS Configuration
Use the EAPS Configuration page to globally enable or disable EAPS on the
ECN330-switch.
Command Usage
The EAPS function must be enabled on the ECN330-switch before an EAPS
domain can start running on the ring (EAPS Domain Configuration, section
6.11.2 on page 265). Once enabled, the master node and transit node state
machines will start, and the domain will enter the active state. When the
domain is in the active state, no EAPS configuration changes can be made.
Command Attribute
• EAPS Status – Enables or disables EAPS on the ECN330-switch.
(Default: Disabled)
Web – Click EAPS, Configuration. Mark the check box to enable EAPS globally
on the ECN330-switch, and click Apply.

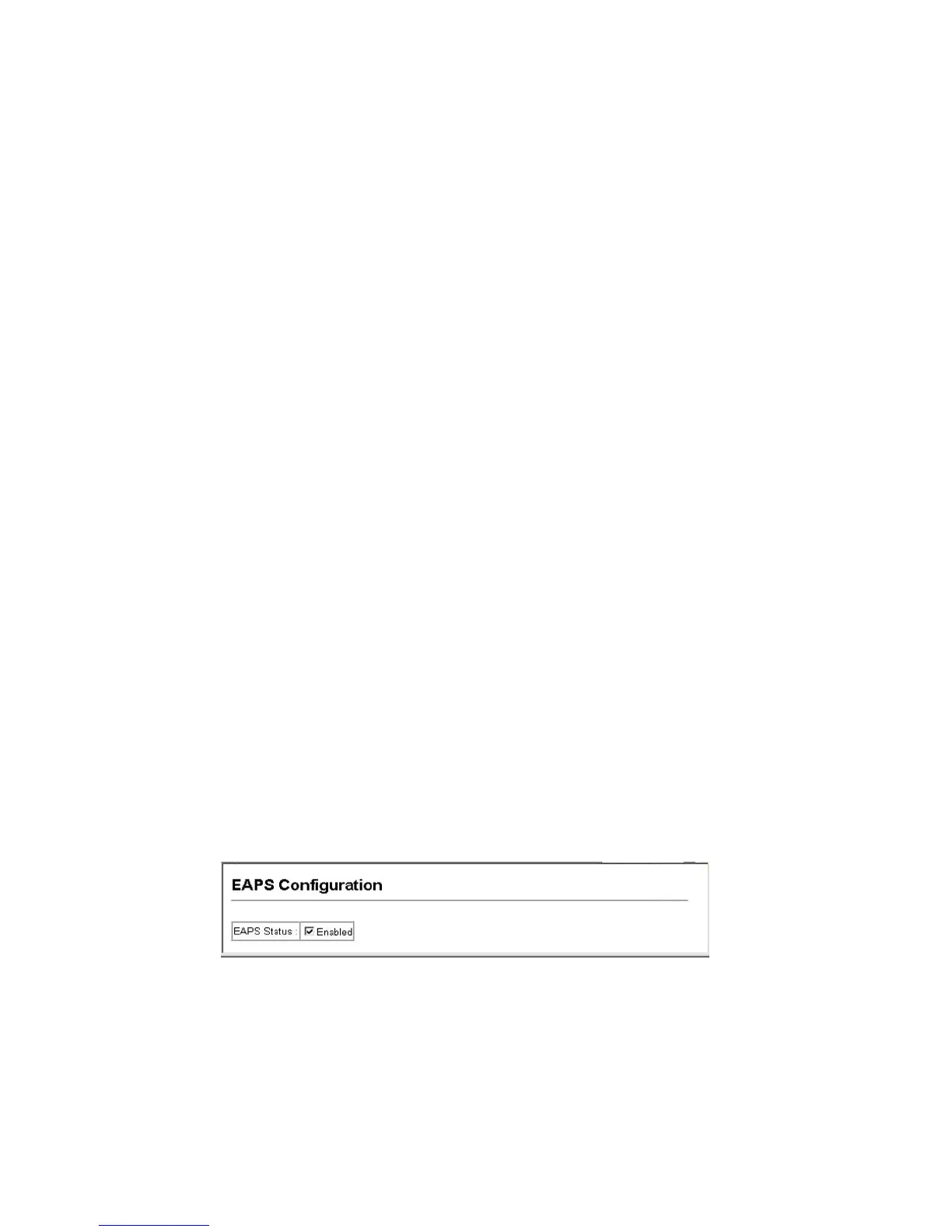

Figure 104 Setting EAPS Global Status
