• Ports List – The list of ports (and assigned port type) in the selected
private VLAN.
Web – Click VLAN, Private VLAN, Information. Select the desired port from the
VLAN ID drop-down menu.

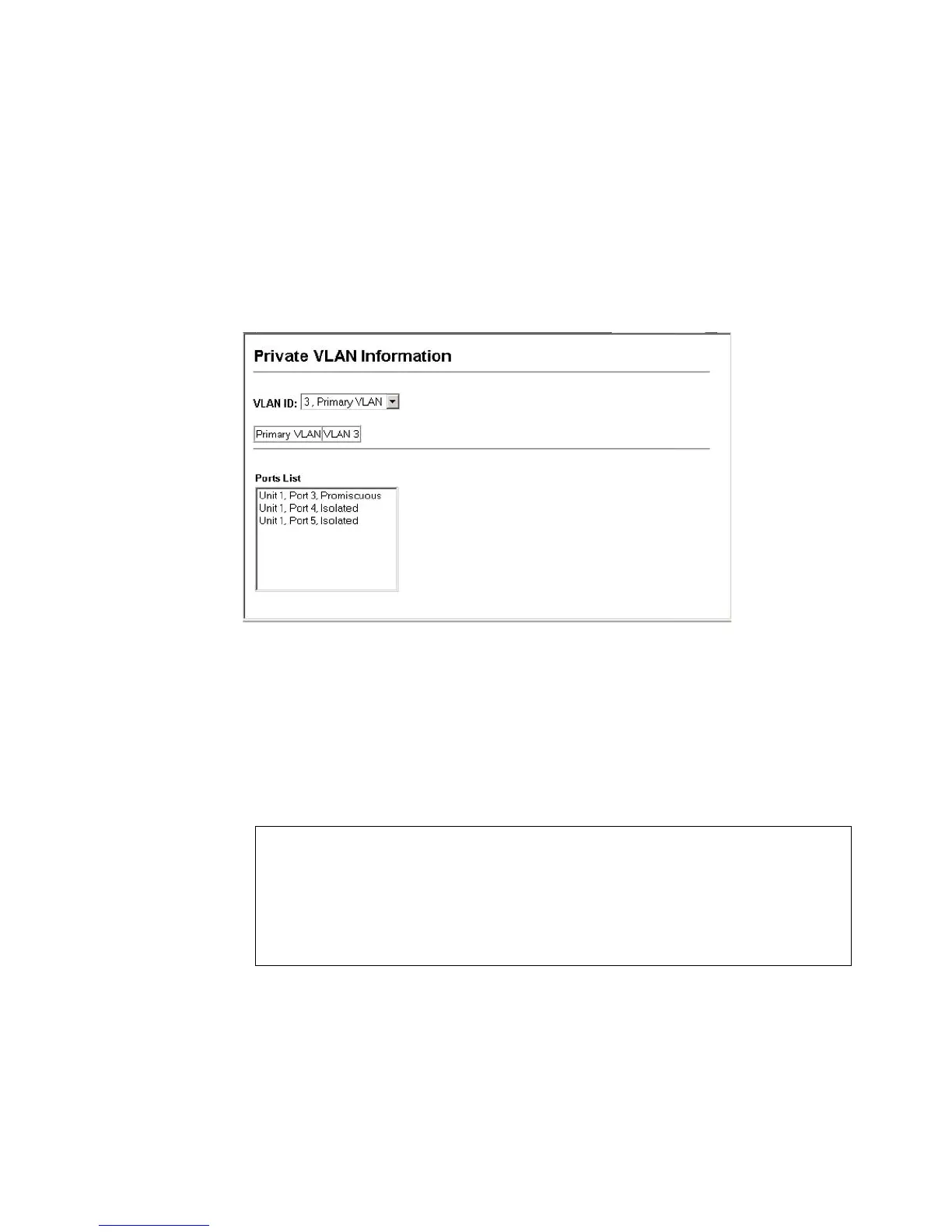

Figure 120 Private VLAN Information
CLI – This example shows the ECN330-switch configured with primary VLAN 3
and isolated VLANs 4 and 5. The isolated VLANs are associated with VLAN 3.
Port 3 has then been configured as a promiscuous port and mapped to the
Primary VLAN, while ports 4 and 5 have been configured as isolated ports and
assigned to isolated VLAN 4 and 5 respectively. This means that traffic for port
4 and 5 can only pass through port 3.
Console#show vlan private-vlan
Primary Secondary Type Interfaces
-------- ----------- ---------- ---------------------------------
3 Primary Eth1/ 3
3 4 Isolated Eth1/ 4
3 5 Isolated Eth1/ 5
Console#
