Configuring the ECN330-switch
306 1553-KDU 137 365 Uen D 2006-06-16
6.12.2.2 Configuring Private VLANs
The Private VLAN Configuration page is used to create/remove primary or
isolated VLANs.
Command Attributes
• VLAN ID – ID of configured VLAN (1-4094).
• Type – There are two types of private VLANs:
• Primary – Conveys traffic between promiscuous ports in the
primary VLAN, and to isolated ports within any associated isolated
VLANs.
• Isolated – Conveys traffic only between the VLAN’s isolated ports
and to promiscuous ports in the associated primary VLAN. Traffic
between isolated ports within the VLAN is blocked.
• Current – Displays a list of the currently configured VLANs.
Web – Click VLAN, Private VLAN, Configuration. Enter the VLAN ID number,
select Primary or Isolated type, then click Add. To remove a private VLAN from
the ECN330-switch, highlight an entry in the Current list box and then click
Remove. Note that all member ports must be removed from the VLAN before it
can be deleted.

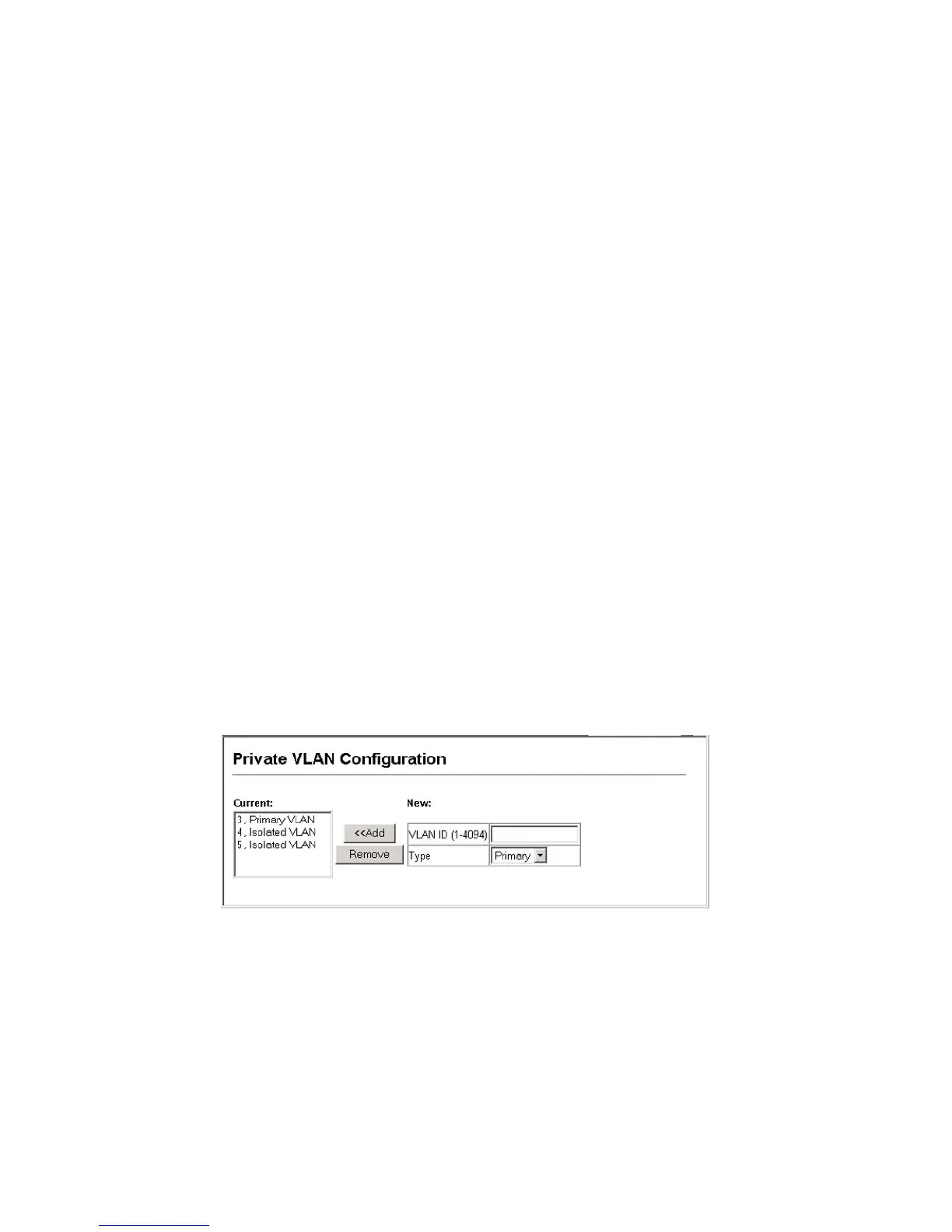

Figure 121 Private VLAN Configuration
