Configuring the ECN330-switch
312 1553-KDU 137 365 Uen D 2006-06-16
3. Map the protocol for each interface to the appropriate VLAN using the
Protocol VLAN Port Configuration page.
6.12.3.1 Configuring Protocol Groups
Create a protocol group for one or more protocols.
Command Attributes
• Protocol Group ID –
Group identifier of this protocol group.
(Range: 1-2147483647)
• Frame Type – Frame type used by this protocol. (Options: Ethernet,
RFC_1042, LLC_other)
• Protocol Type – The only option for the LLC_other frame type is
IPX_raw. The options for all other frames types include: IP, ARP, RARP.
Note: SNAP frame types are not supported by the ECN330-switch due to
hardware limitations.
Web – Click VLAN, Protocol VLAN, Configuration. Enter a protocol group ID,
frame type and protocol type, then click Apply.

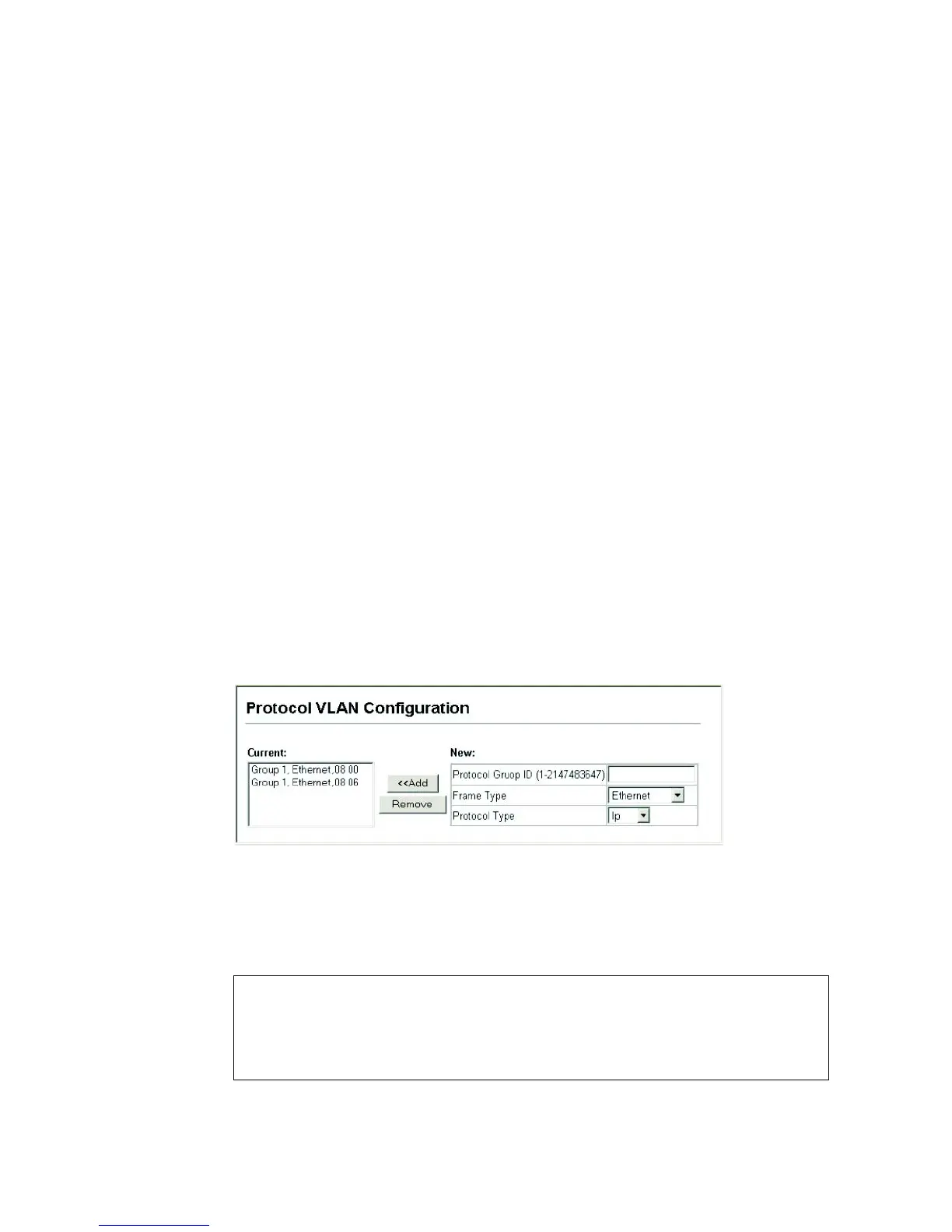

Figure 125 Protocol VLAN Configuration
CLI – The following creates protocol group 1, and then specifies Ethernet frames
with IP and ARP protocol types.
Console(config)#protocol-vlan protocol-group 1 add frame-
type ethernet protocol-type ip
Console(config)#protocol-vlan protocol-group 1 add frame-
type ethernet protocol-type arp
Console(config)#
