Configuring the ECN330-switch
5051553-KDU 137 365 Uen D 2006-06-16
• Group Address – An IP multicast group address. If a group address is
not specified, the RP is used for all multicast groups.
• Group Mask – Subnet mask that is used for the group address.
• Priority (0-255) – Priority used by the candidate RP in the election
process. The RP candidate with the largest priority is preferred. If the
priority values are the same, the candidate with the larger IP address is
elected to be the RP. (Range: 0-255; Default: 192)
Web – Click Routing Protocol, PIM-SM, RP Candidate. Specify the VLAN
interface for which this router is bidding to become the RP, the multicast group
address and mask, and the priority for RP selection, then click Apply.

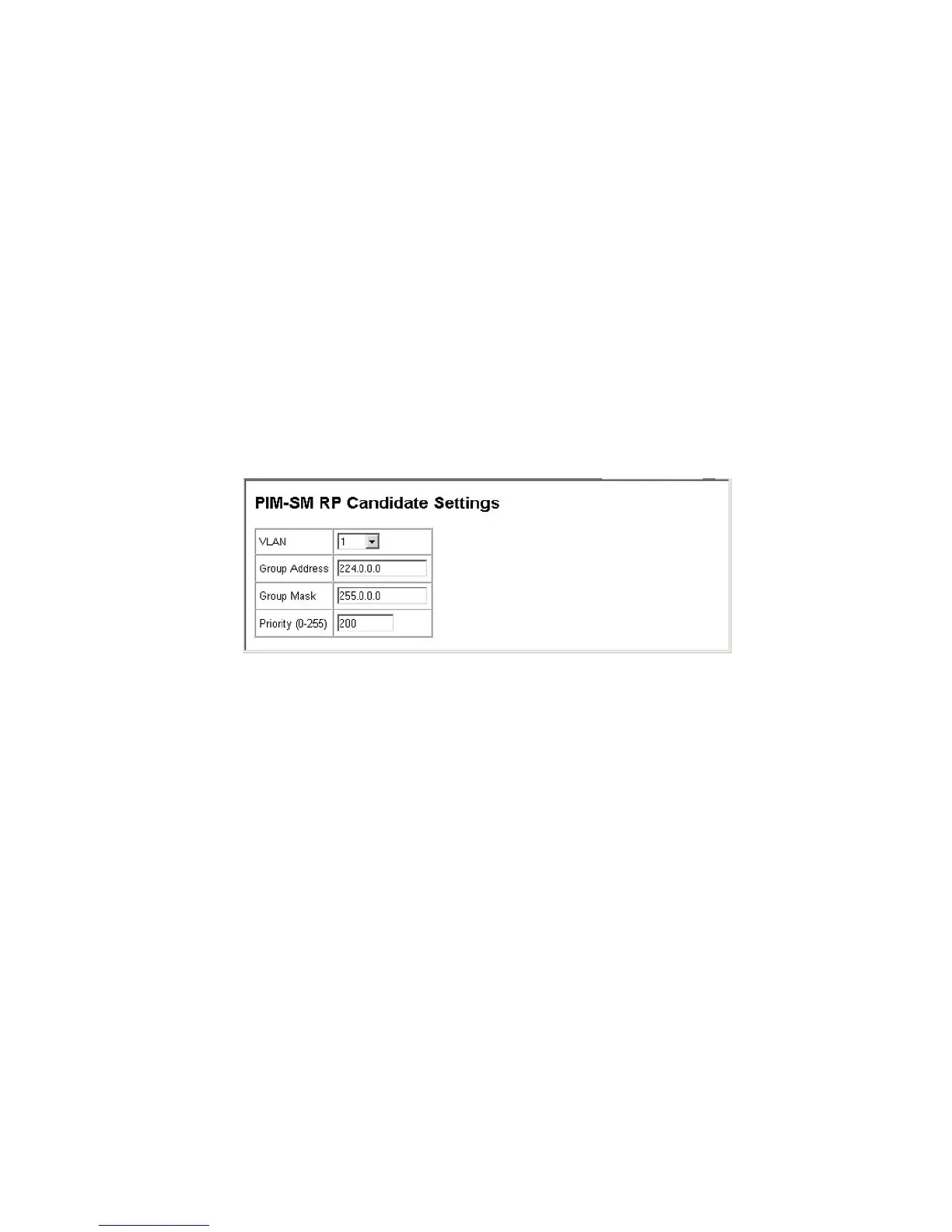

Figure 233 RP Candidate Settings
