MX480 SCBE2 Description
The Switch Control Board (SCBE2) serves the carrier Ethernet services router and carrier
Ethernet transport markets that require higher-capacity traffic support, demanding
greater interface density (slot and capacity scale) as well as improved services. The
upgraded SCB is supported on MX960, MX480, and MX240 routers. Some key attributes
of the SCBE2 are:
•
A bandwidth of up to 340 Gbps per slot with redundant fabric support and 480 Gbps
per slot without redundancy, and improved fabric performance on account of using
the next-generation fabric (XF2) chip.
•
A central clocking module and a centralized clocking architecture that support clock
cleanup and distribution. The Stratum 3 clock module performs clock monitoring,
filtering, and holdover at a centralized chassis location.
•
Full performance with fabric redundancy for higher-capacity line cards such as MPC4.
•
Support for MPC line cards only.
•
Two 10-Gigabit Ethernet SFP+ ports. SFP+ port 0 can be used to connect an external
device as a Route Reflector. SFP+ port 1 is unused.
•
Support for cross-coupling of clock input (which requires an enhanced midplane:
CHAS-BP3-MX480-S). You can configure the system such that one SCBE2 supports
a GPS interface, and the other SCBE2 supports a BITS interface.
The Routing Engine is installed directly into a slot on the SCBE2 (see Figure 39 on page 113).

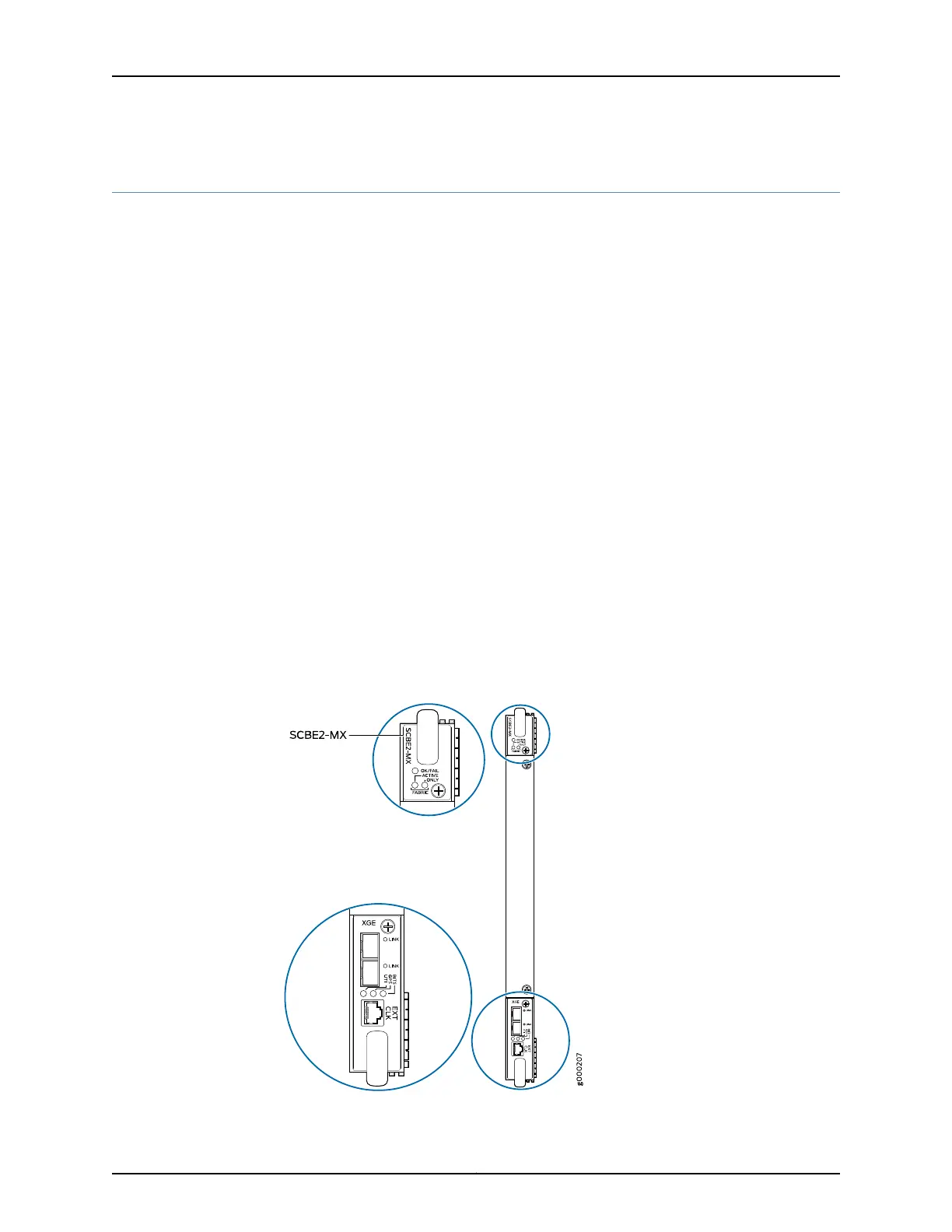

Figure 39: SCBE2
