Routing Engine LEDs (RE-S-X6-64G)

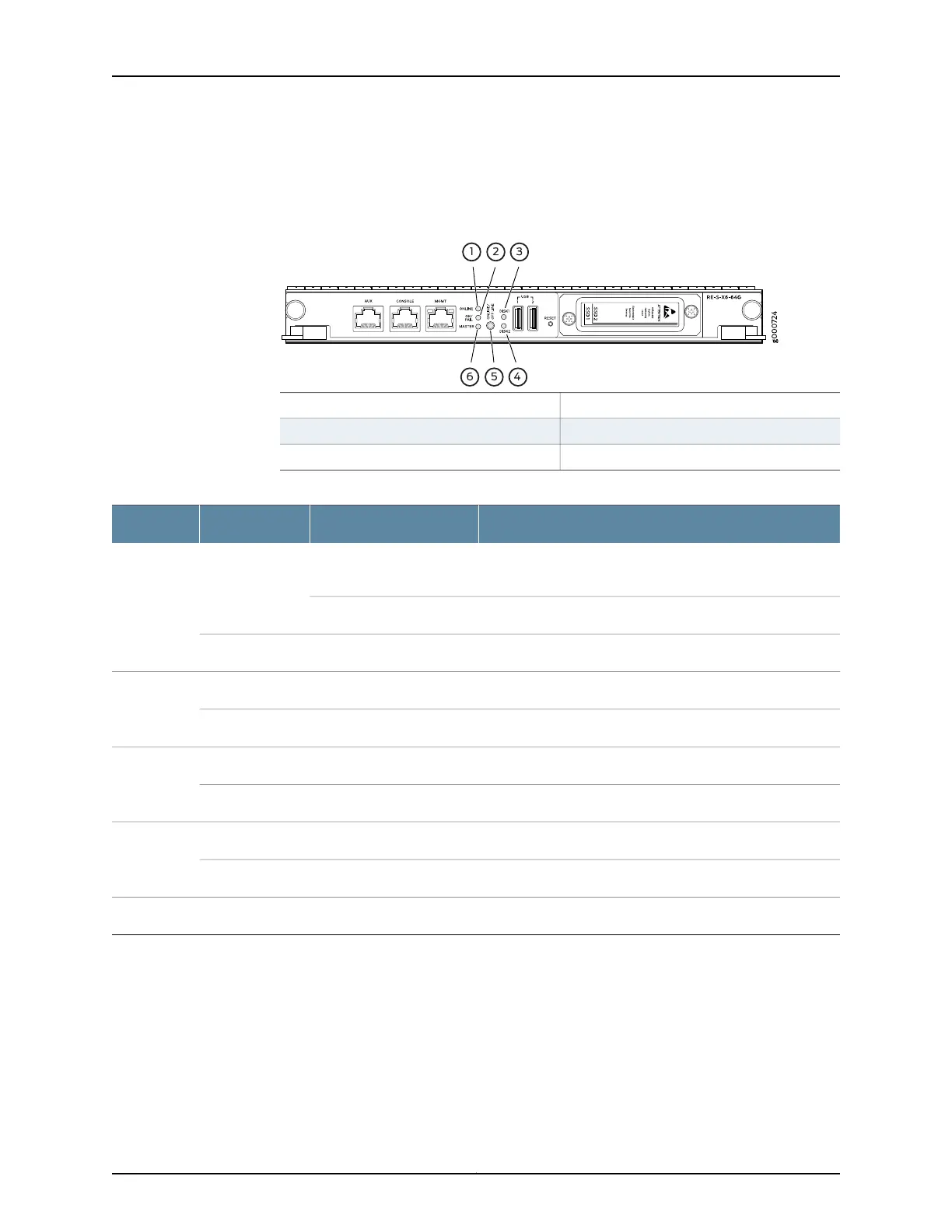

Figure 20: RE-S-X6-64G Routing Engine LEDs
4—1—
DISK2 LEDONLINE LED
5—2—
ONLINE/OFFLINE ButtonOK/FAIL LED
6—3—
MASTER LEDDISK1 LED
Table 19: Routing Engine LEDs (RE-S-X6-64G)
DescriptionStateColorLabel
Routing Engine is in the process of booting BIOS, and the host
OS.
Blinking slowlyGreenONLINE
Routing Engine is in the process of booting Junos OS.Blinking rapidly
Routing Engine is not online or not functioning normallyOff-
Indicates presence of the disk activity.BlinkingGreenDISK1
There is no disk activity.Off-
Indicates presence of the disk activity.BlinkingGreenDISK2
There is no disk activity.Off-
Routing Engine is powering up.On steadilyGreenOK/FAIL
Routing Engine is not powering up indicating failure.On steadilyYellow
This Routing Engine is the Master Routing Engine.On steadilyBlueMASTER
Related
Documentation
MX480 Routing Engine Description on page 27•
• Replacing an MX480 Routing Engine on page 301
