Juniper MX480 Hardware Guide

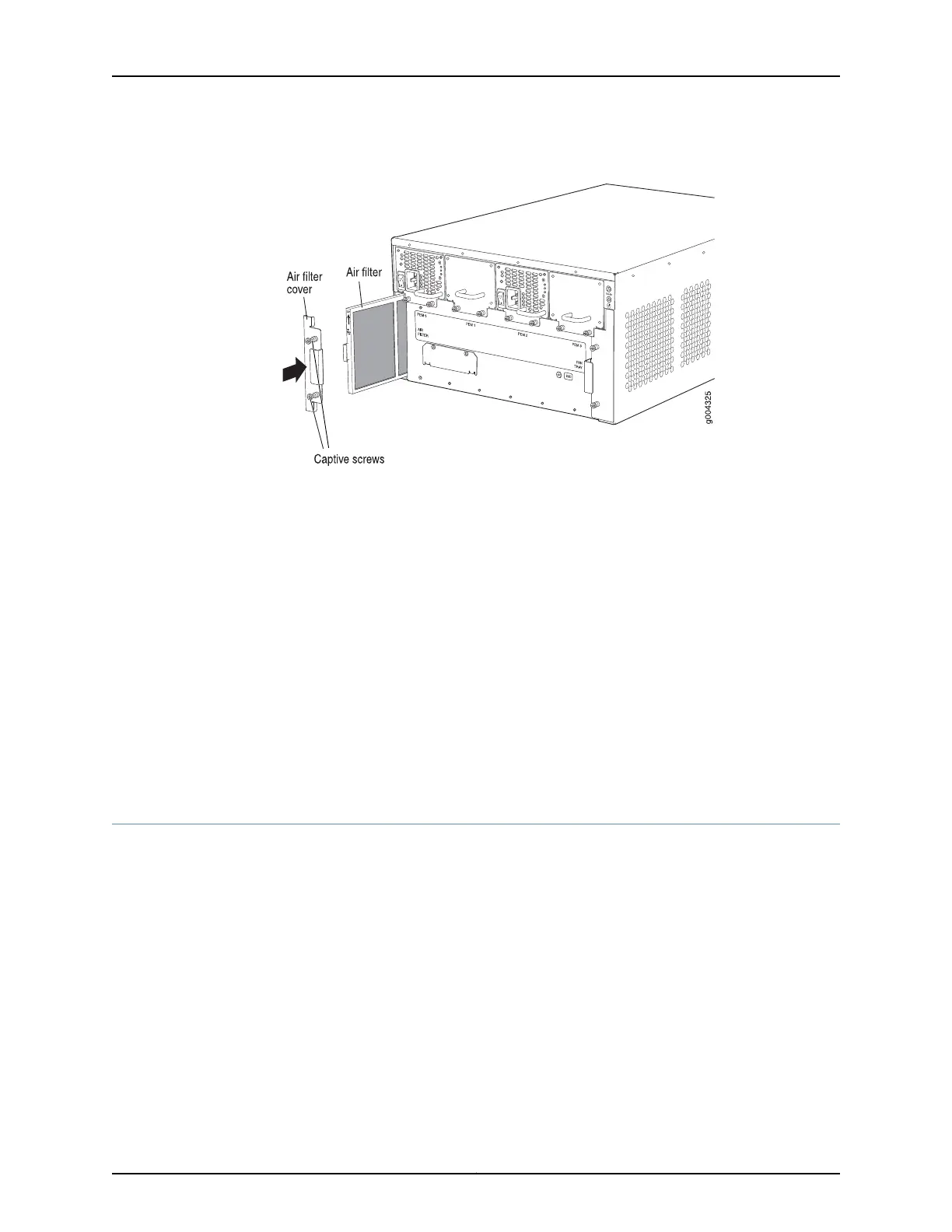

Figure 120: Installing the Air Filter
See Also Preventing Electrostatic Discharge Damage to an MX480 Router on page 484•
• Removing the MX480 Air Filter on page 295
• Maintaining the MX480 Air Filter on page 415
• MX480 Cooling System Description on page 21
• Troubleshooting the MX480 Cooling System on page 442
Related
Documentation
Preventing Electrostatic Discharge Damage to an MX480 Router on page 484•
• Maintaining the MX480 Air Filter on page 415
• MX480 Cooling System Description on page 21
• Troubleshooting the MX480 Cooling System on page 442
Replacing the MX480 Fan Tray
1.
Removing the MX480 Fan Tray on page 298
2.
Installing the MX480 Fan Tray on page 299
297Copyright © 2017, Juniper Networks, Inc.
Chapter 23: Replacing Cooling System Components

Juniper MX480 Specifications

General

Cooling	Front-to-back airflow
Operating System	Junos OS
Form Factor	Modular
Routing Engine	RE-S-1800x4
Maximum Capacity	7.68 Tbps
Throughput	Up to 3.84 Tbps per slot
Power Supply	Redundant AC or DC power supplies
Chassis Slots	6 slots
Operating Temperature	0°C to 40°C (32°F to 104°F)
Supported Protocols	BGP, OSPF, IS-IS, MPLS, IPv4, IPv6
Redundancy	Redundant Routing Engines, power supplies
