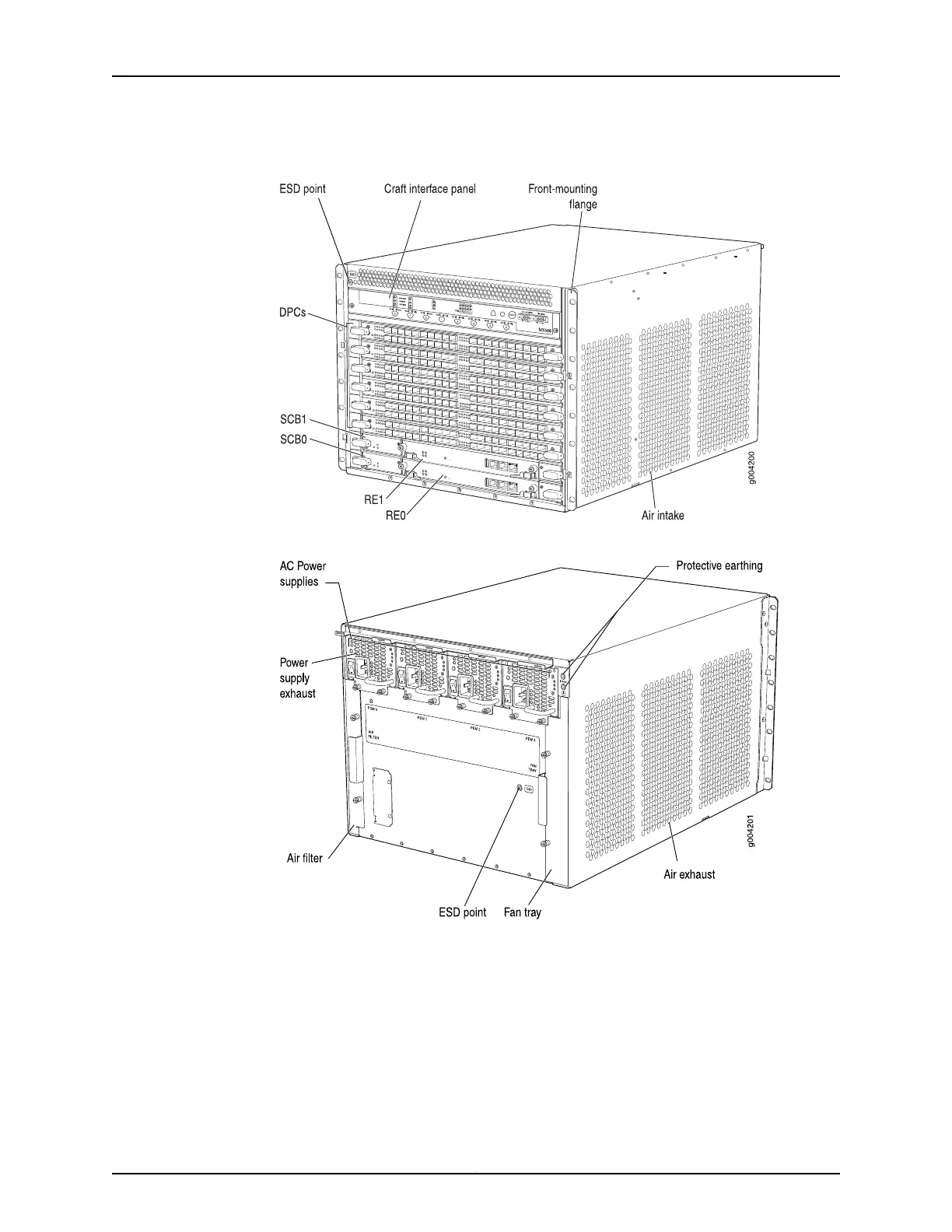

Figure 1: Front View of a Fully Configured Router Chassis
Figure 2: Rear View of a Fully Configured AC-Powered Router Chassis
Copyright © 2017, Juniper Networks, Inc.10
MX480 3D Universal Edge Router Hardware Guide

Table of Contents

Other manuals for Juniper MX480

Preview: Quick Guide
Quick Guide31 pages
Preview: Manual
Manual6 pages
Preview: Instruction For Upgrading
Instruction For Upgrading35 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Juniper MX480 and is the answer not in the manual?

Juniper MX480 Specifications

General IconGeneral
CoolingFront-to-back airflow
Operating SystemJunos OS
Form FactorModular
Routing EngineRE-S-1800x4
Maximum Capacity7.68 Tbps
ThroughputUp to 3.84 Tbps per slot
Power SupplyRedundant AC or DC power supplies
Chassis Slots6 slots
Operating Temperature0°C to 40°C (32°F to 104°F)
Supported ProtocolsBGP, OSPF, IS-IS, MPLS, IPv4, IPv6
RedundancyRedundant Routing Engines, power supplies
