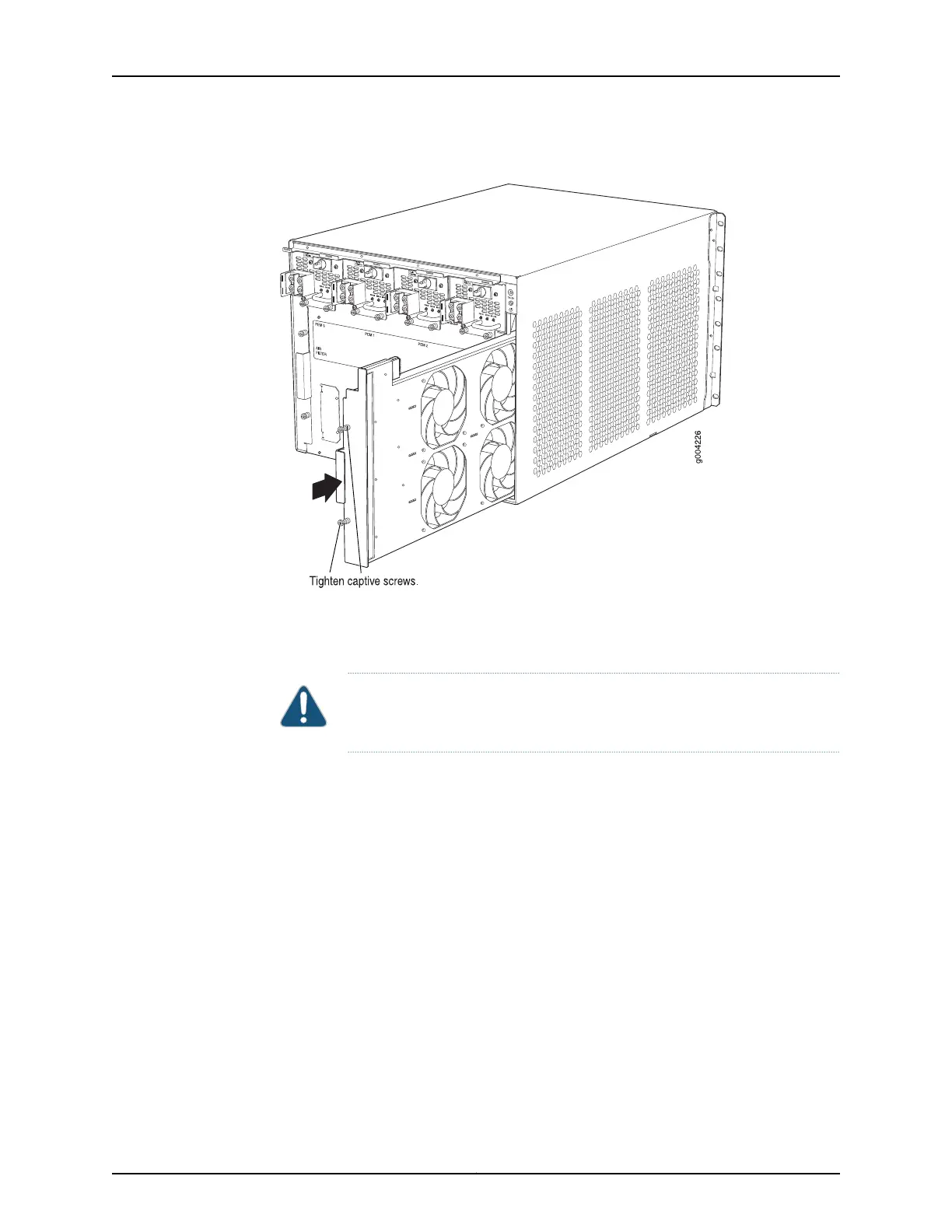

Figure 59: Reinstalling a Fan Tray
Reinstalling the SCBs After Installing the MX480 Router with a Lift
To reinstall an SCB (see Figure 60 on page 199):
CAUTION: Before removing or replacing an SCB, ensure that the ejector
handles are stored vertically and pressed toward the center of the SCB.
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Carefully align the sides of the SCB with the guides inside the chassis.
3. Slide the SCB into the chassis until you feel resistance, carefully ensuring that it is
correctly aligned.
4. Grasp both ejector handles, and rotate them simultaneously clockwise until the SCB
is fully seated.
5. Place the ejector handles in their proper position, horizontally and toward the center
of the board. To avoid blocking the visibility of the LEDs position the ejectors over the
PARK icon.
Copyright © 2017, Juniper Networks, Inc.198
MX480 3D Universal Edge Router Hardware Guide
