Table 14: Routing Engine LEDs (continued)
DescriptionStateColorLabel
Routing Engine is transitioning online.BlinkingGreenONLINE
Routing Engine is functioning normally.On steadily
Routing Engine has failed.On steadilyRedOK/FAIL
Related
Documentation
MX240 Routing Engine Description•
• MX480 Routing Engine Description on page 27
• MX960 Routing Engine Description
RE-S-X6-64G Routing Engine Description
Figure 17 on page 32 shows the Routing Engine.

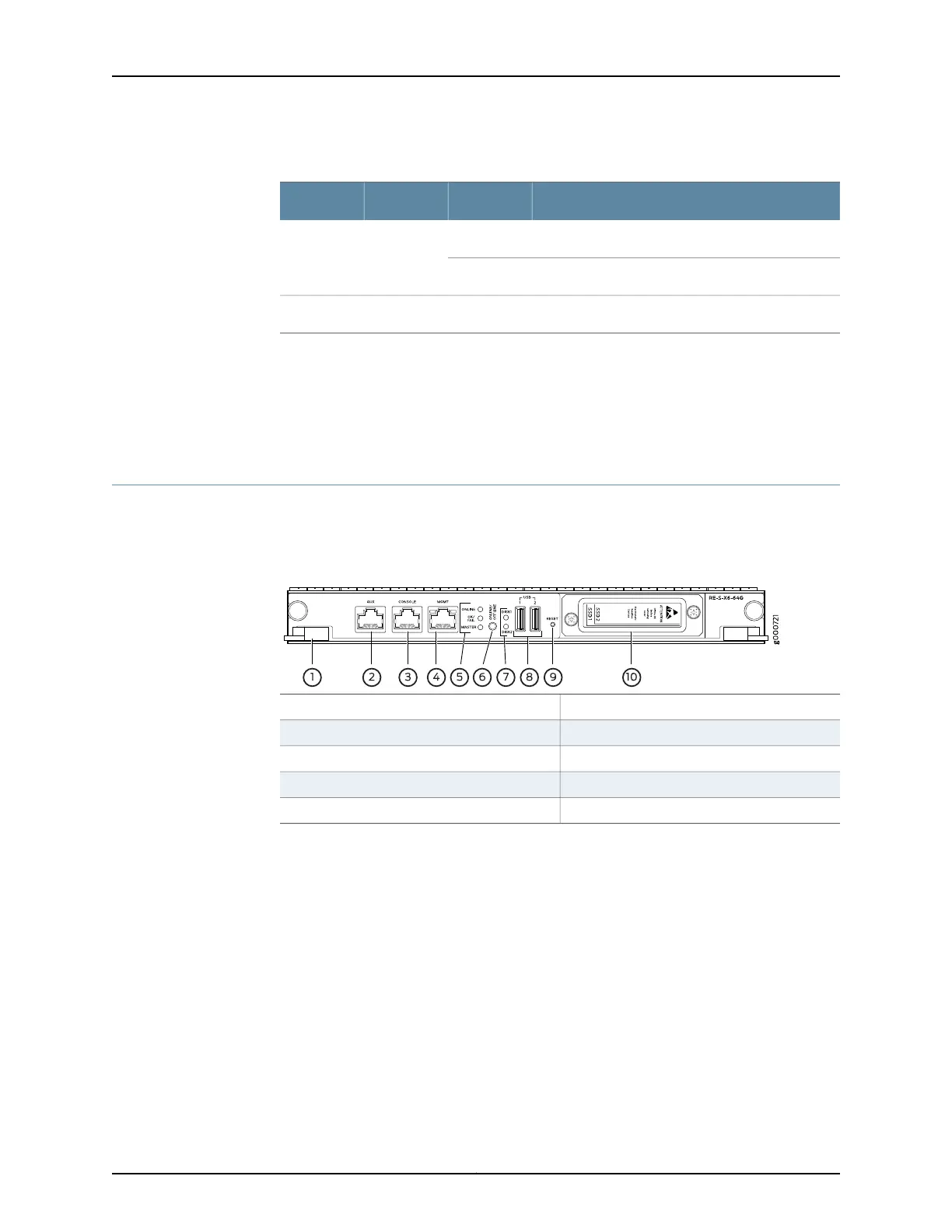

Figure 17: RE-S-X6-64G Routing Engine Front View
6—1—
ONLINE/OFFLINE button
Extractor clips
7—2—
SSD LEDs—DISK1 and DISK2Auxiliary port (AUX)
8—3—
Ports—USB1 and USB2Console port (CONSOLE)
9—4—
RESET buttonManagement port (MGMT)
10—5— SSD card slot cover
LEDs—ONLINE, OK/FAIL, and MASTER
•
RE-S-X6-64G Routing Engine Components on page 32
•
RE-S-X6-64G Routing Engine Boot Sequence on page 33
RE-S-X6-64G Routing Engine Components
In routers with dual Routing Engines, both Routing Engines must be RE-S-X6-64G Routing
Engines.
Each RE-S-X6-64G Routing Engine (shown in Figure 17 on page 32) consists of the
following components:
•
CPU—Runs Junos OS to maintain the routing tables and routing protocols.
•
EEPROM—Stores the serial number of the Routing Engine.
