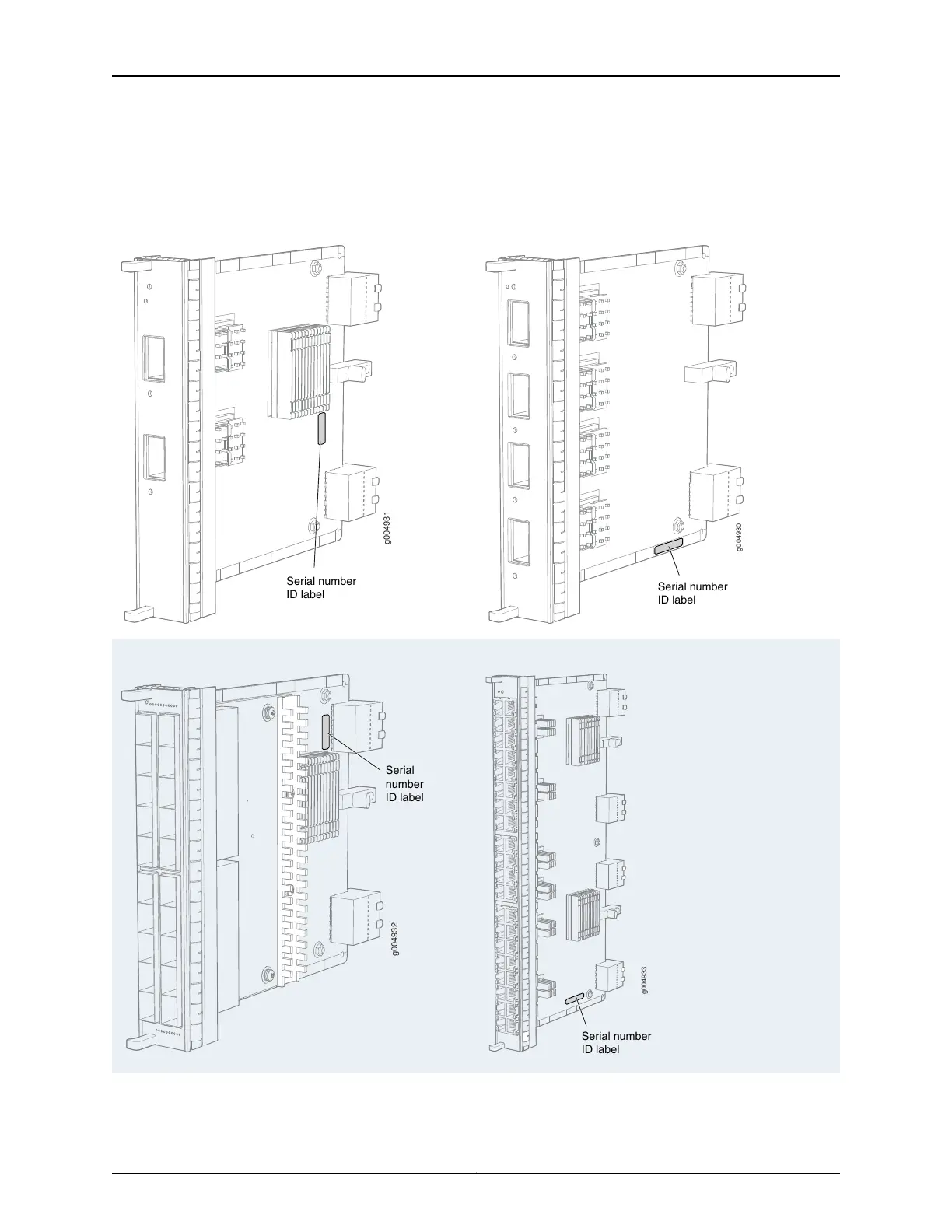

Juniper MX480 - Figure 180: 2-Port MIC Serial Number Label; Figure 181: 4-Port MIC Serial Number Label; Figure 182: 20-Port MIC Serial Number Label; Figure 183: 40-Port MIC Serial Number Label

depending on the placement of components on the MIC board (see Figure180 on page466,
Figure 181 on page 466, Figure 182 on page 466, and Figure 183 on page 466).
Figure 181: 4-Port MIC Serial Number Label
g004930
Serial number
ID label
Figure 180: 2-Port MIC Serial Number Label
g004931
Serial number
ID label
Figure 183: 40-Port MIC Serial Number Label
g004933
Serial number
ID label
Figure 182: 20-Port MIC Serial Number Label
g004932
Serial
number
ID label
