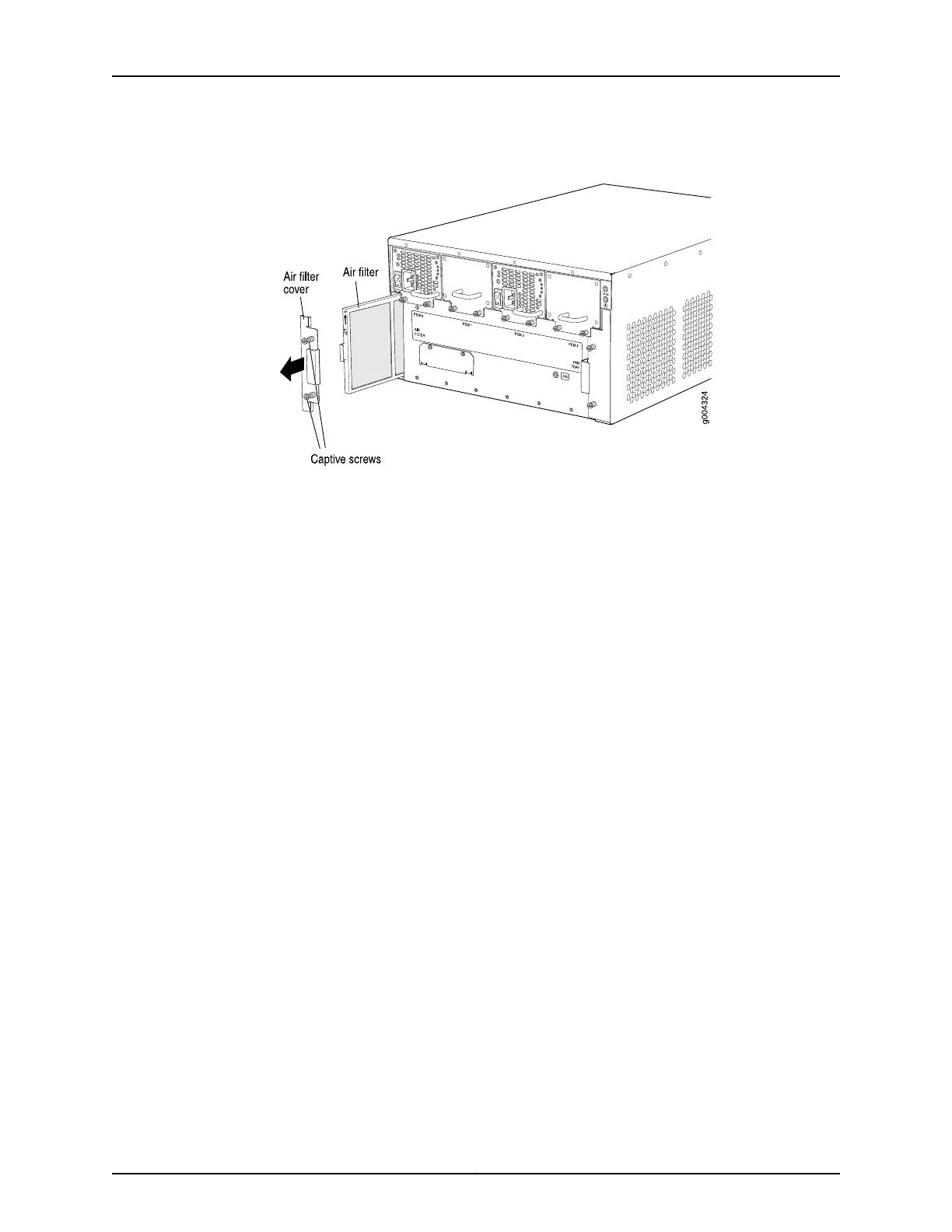

Juniper MX480 - Installing the MX480 Air Filter; Figure 119: Removing the Air Filter

Figure 119: Removing the Air Filter
See Also Preventing Electrostatic Discharge Damage to an MX480 Router on page 484•
• Installing the MX480 Air Filter on page 252
• Maintaining the MX480 Air Filter on page 415
• MX480 Cooling System Description on page 21
• Troubleshooting the MX480 Cooling System on page 442
Installing the MX480 Air Filter
To install the air filter (see Figure 92 on page 253):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Locate the up arrow and ensure that the air filter is right side up.
3. Slide the air filter straight into the chassis until it stops.
4. Align the captive screws of the air filter cover with the mounting holes on the chassis.
5. Tighten the captive screws on the air filter cover.
