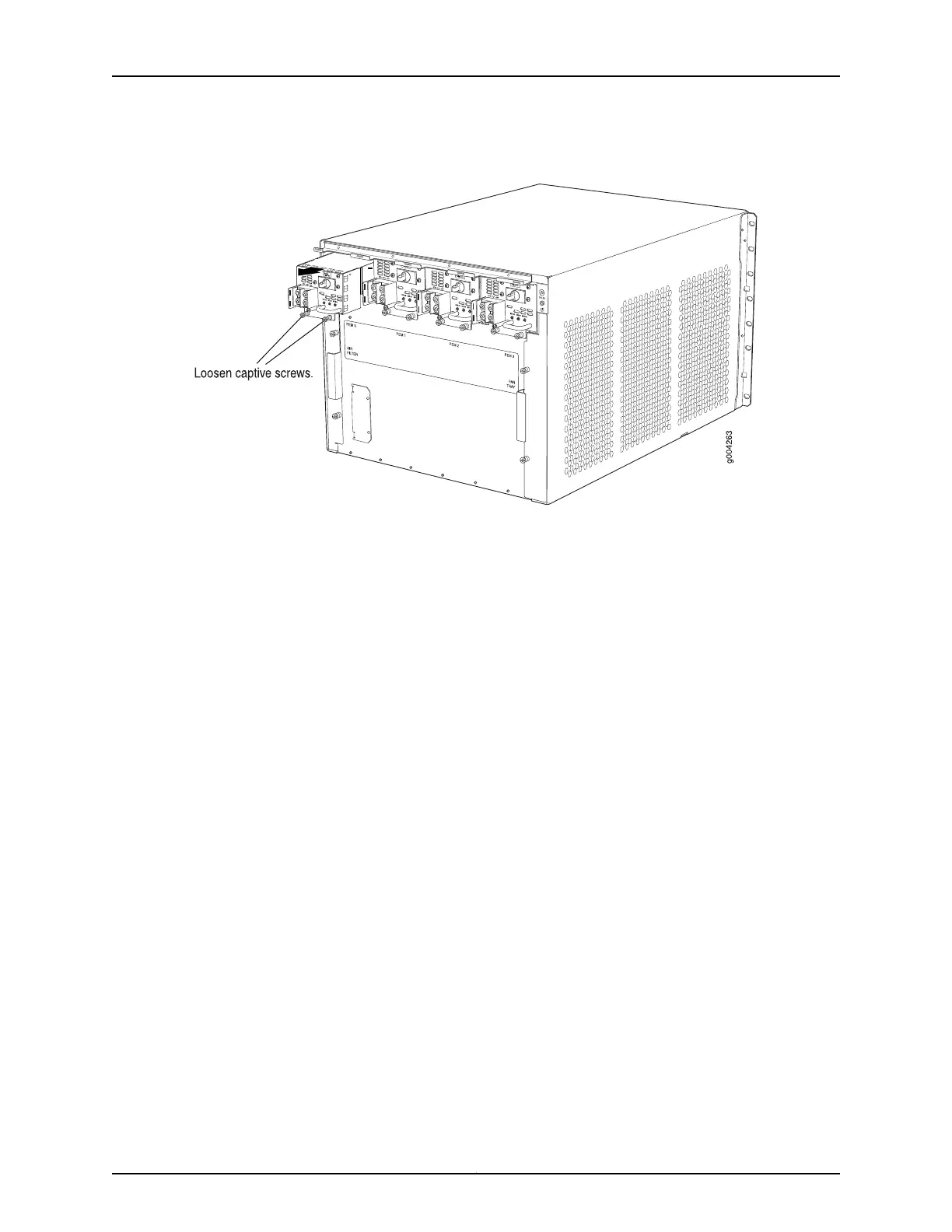

Figure 52: Removing a Power Supply Before Installing the Router
Removing the Fan Tray Before Installing the MX480 Router with a Lift
To remove the fan tray (see Figure 53 on page 191 ):
1. Attach an electrostatic discharge (ESD) grounding strap to your bare wrist, and connect
the strap to an approved site ESD grounding point. See the instructions for your site.
2. Loosen the captive screws on the fan tray faceplate.
3. Grasp the fan tray handle, and pull it out approximately 1 to 3 inches.
4. Press the latch located on the inside of the fan tray to release it from the chassis.
5. Place one hand under the fan tray to support it, and pull the fan tray completely out
of the chassis.
Copyright © 2017, Juniper Networks, Inc.190
MX480 3D Universal Edge Router Hardware Guide
