For more information on specific PICs, see “PICs Supported by MX240, MX480, and
MX960 Routers” on page 68 in the MX Series Interface Module Reference.
•
port—Port number.
The MX480 supports up to three FPCs that install horizontally and are numbered from
bottom to top.
Figure 26 on page 67 shows a Channelized OC12/STM4 Enhanced IQ (IQE) PIC with SFP
installed in PIC slot 0 of an FPC installed in slot 3 and slot 4.

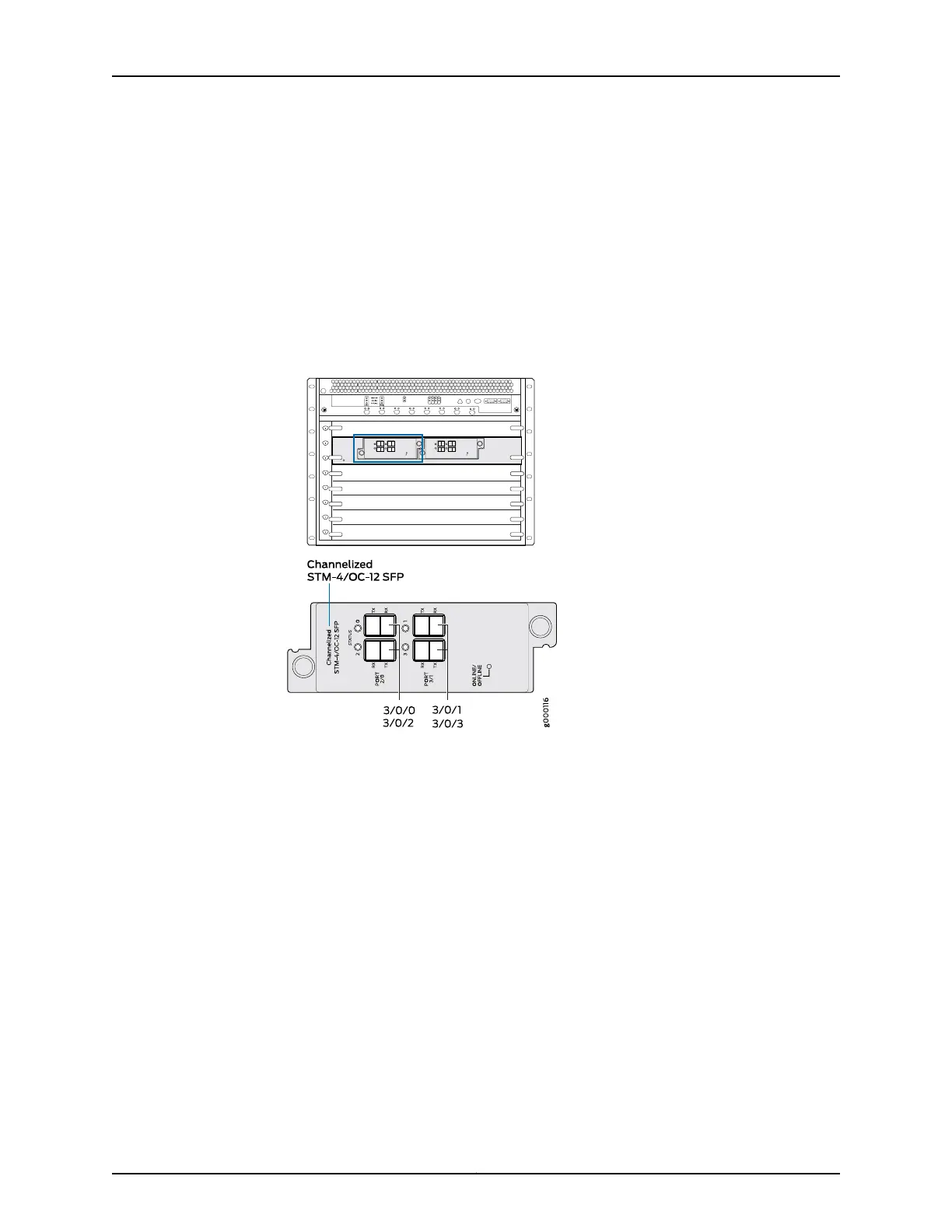

Figure 26: MX480 PIC Interface Port Mapping
The show chassis hardware command output displays a Channelized OC12/STM4
Enhanced IQ (IQE) PIC (4x CHOC12 IQE SONET) installed in MX FPC Type 2.
user@host> show chassis hardware
...
FPC 3 REV 01 710-024386 JW9571 MX FPC Type 2
CPU REV 03 710-022351 KE2986 DPC PMB
PIC 0 REV 00 750-022630 DS1284 4x CHOC12 IQE SONET
Xcvr 0 REV 01 740-011782 PB821SG SFP-SX
Xcvr 1 REV 01 740-011782 PB829Q6 SFP-SX
Xcvr 2 REV 01 740-011613 P9F15NQ SFP-SX
Xcvr 3 REV 01 740-011782 P7N036X SFP-SX...
The show interfaces terse command output displays the channelized SONET OC12
interfaces (coc12), that correspond to the four ports located on the PIC.
user@host>show interfaces terse
...
coc12-3/0/0 up up
67Copyright © 2017, Juniper Networks, Inc.
Chapter 6: Line Card Components and Descriptions
