• Protocols and Applications Supported by Enhanced Queuing IP Services DPCs
(DPCE-R-Q)
• Protocols and Applications Supported by Enhanced Queuing Ethernet Services DPCs
(DPCE-X-Q)
• Protocols and Applications Supported by the Multiservices DPC (MS-DPC)
Interface Modules—FPCs and MICs
•
MX480 Flexible PIC Concentrator (FPC) Description on page 63
•
MX480 Flexible PIC Concentrator (FPC) LEDs on page 65
•
FPCs Supported by MX240, MX480, and MX960 Routers on page 65
•
MX480 PIC Description on page 66
•
MX480 PIC Port and Interface Numbering on page 66
•
MX480 PIC LEDs on page 68
•
PICs Supported by MX240, MX480, and MX960 Routers on page 68
MX480 Flexible PIC Concentrator (FPC) Description
A Flexible PIC Concentrator (FPC) occupies two DPC slots on an MX Series router. The
router has six dedicated DPC slots that are numbered 0 through 5, bottom to top. Up to
three FPCs can be installed horizontally on the front of the router (see
Figure 24 on page 63). The interface corresponds to the lowest numbered DPC slot for
which the FPC is installed.

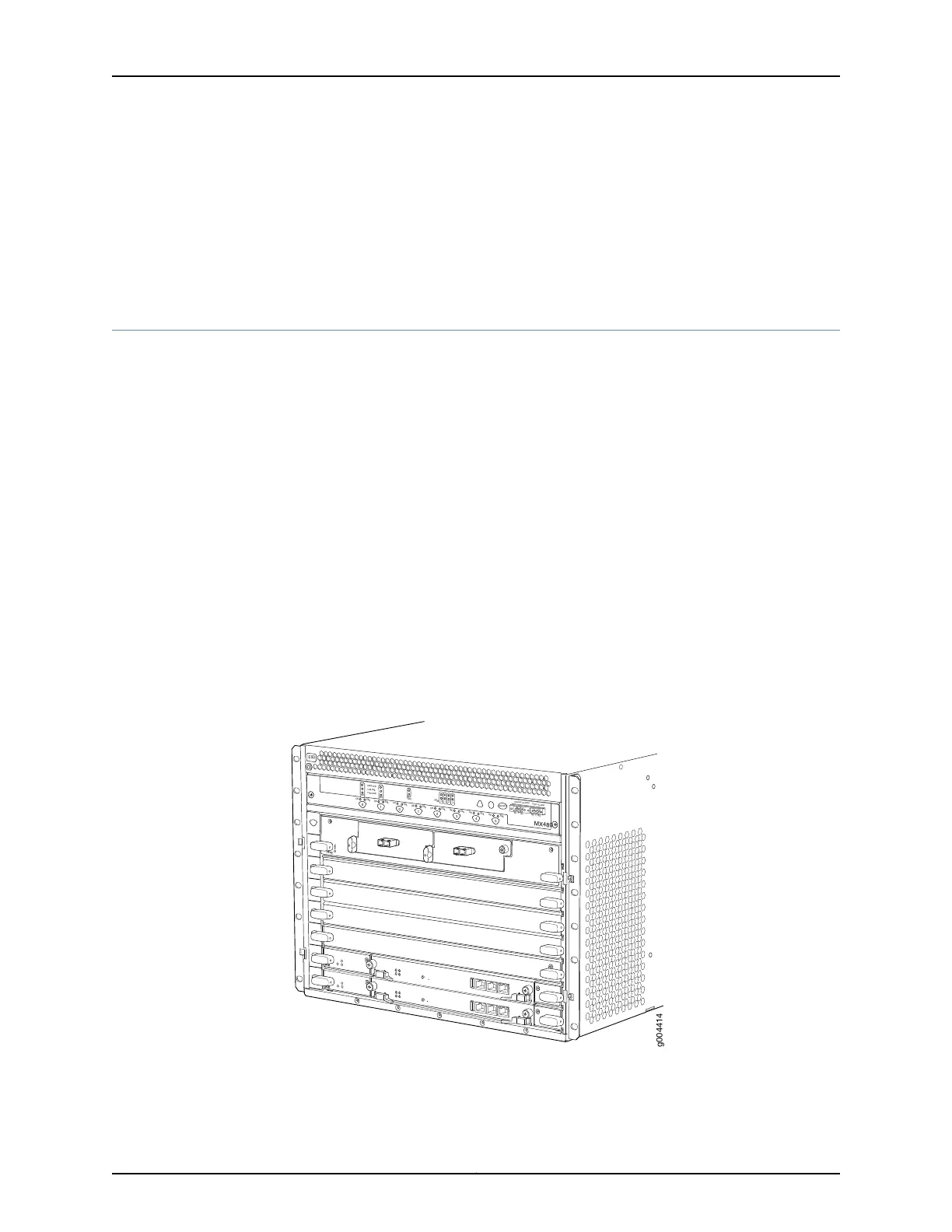

Figure 24: FPC Installed in the MX480 Router Chassis
OK
MASTER
F
AN
ONLINE
OFFLINE
0
1
1
0
F
AI
L
F
AI
L
PEM
F
AI
L
F
AI
L
F
AI
L
F
AI
L
F
AI
L
F
AI
L
ESD
OK
OK
OK
OK
OK
OK
OK
2
3
4
5
ACO/
L
T
Y
EL
L
OW ALARM
RED ALARM
NC
NO
C
NC
NO
C
MX480
REO
RE1
0
1
2
3
g004414
Figure 25 on page 64 shows the typical FPCs supported on the MX480 router.
63Copyright © 2017, Juniper Networks, Inc.
Chapter 6: Line Card Components and Descriptions
