Juniper MX480 - Installing an MX480 as MSC; Figure 104: Installing an as MLC

For more information about the command, see the CLI Explorer.
CAUTION: Afterthe OK LED lights steadily, wait atleast 30 seconds before
removing the AS MLC again, removing an AS MLC from a different slot, or
inserting an AS MLC in a different slot.
You can also verify correct AS MLC and AS MSC or AS MXC functioning by issuing the
show chassis fpc and show chassis fpc pic-status.

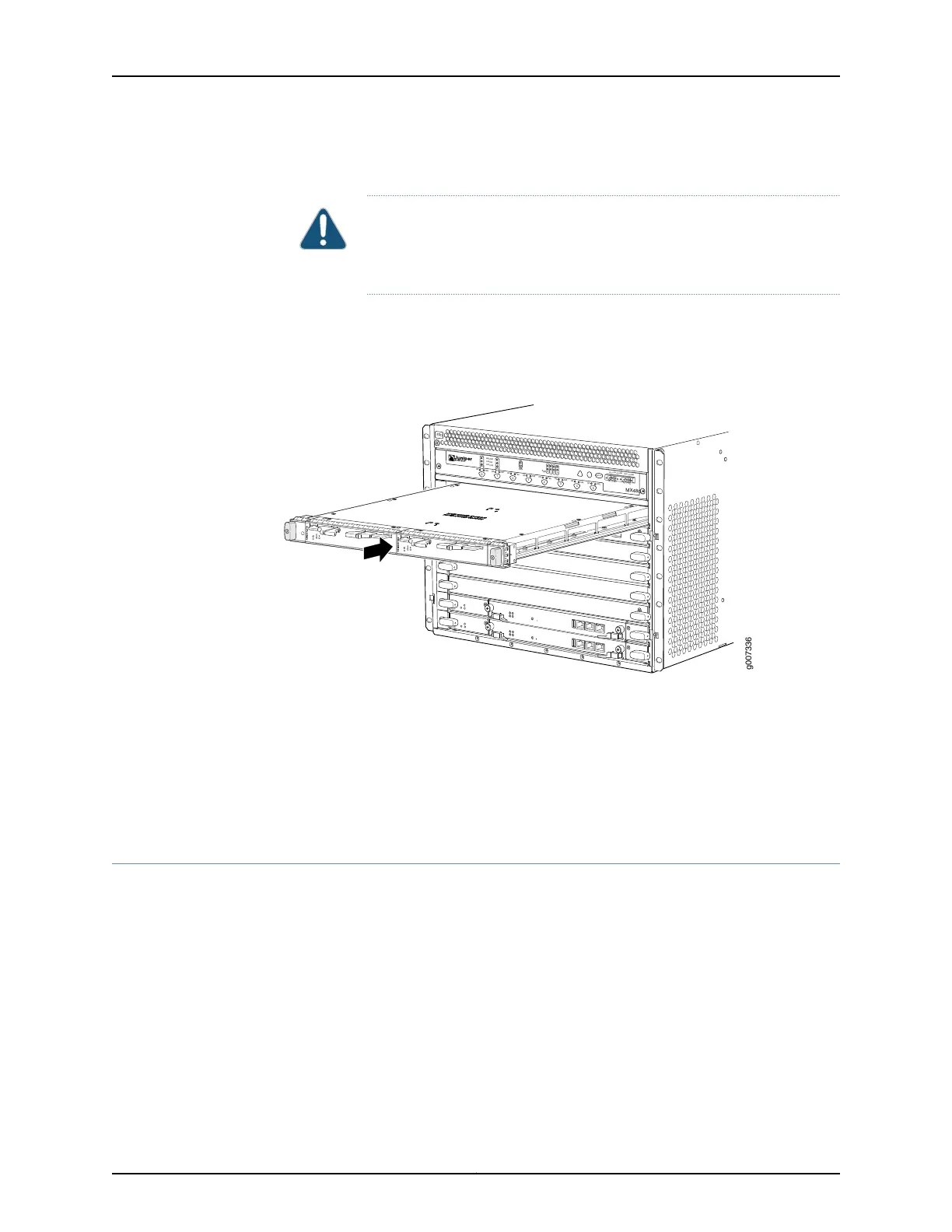

Figure 104: Installing an AS MLC
OK
MASTER
FAN
ONLINE
OFFLINE
0
1
1
0
FAIL
FAIL
PEM
FAIL
FAIL
FAIL
FAIL
FAIL
FAIL
ESD
OK
OK
OK
OK
OK
OK
OK
2
3
4
5
ACO/LT
YELLOW ALARM
RED ALARM
NC
NO
C
NC
NO
C
MX480
REO
RE1
0
1
2
3
SCB
SCB
g007336
Related
Documentation
Preventing Electrostatic Discharge Damage to an MX480 Router on page 484•
• Installing an MX480 AS MSC on page 275
• Installing an MX480 AS MXC on page 277
• Removing an MX480 AS MLC on page 356
Installing an MX480 AS MSC
To install an AS MSC (see Figure 105 on page 276):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Align the notches in the connector at the rear of the AS MSC with the notches in the
AS MSC slot (slot 0—the top slot in the AS MLC ), and then slide the AS MSC in until
it lodges firmly in the AS MLC.
275Copyright © 2017, Juniper Networks, Inc.
Chapter 21: Installing Components
