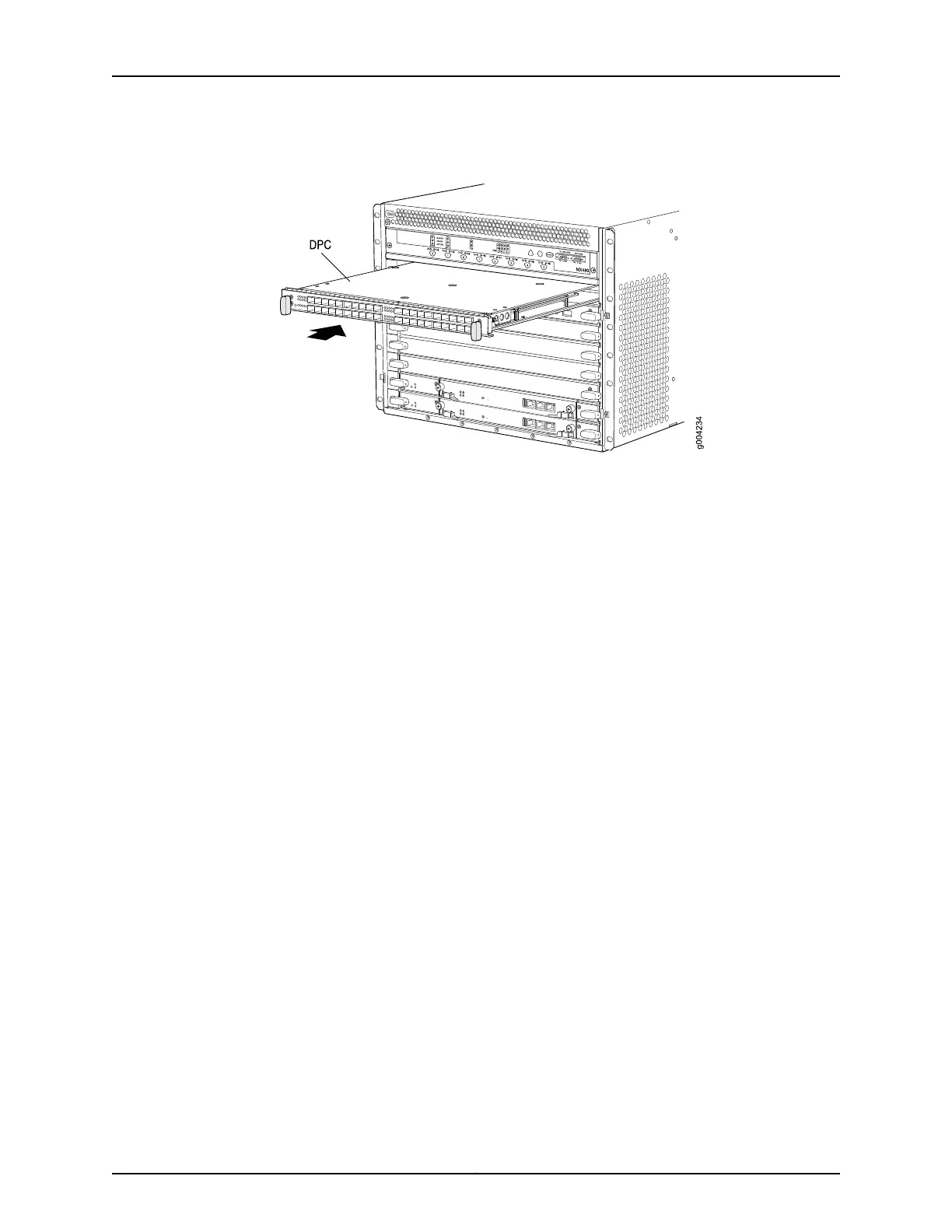

Figure 72: Reinstalling a DPC
Reinstalling the FPCs After Installing the MX480 Router Without a Lift
To reinstall a DPC (see Figure 73 on page 215):
1. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the
ESD points on the chassis.
2. Place the FPC on an antistatic mat, or remove it from its electrostatic bag.
3. Identify the two DPC slots on the router where the FPC will be installed.
4. Verify that each fiber-optic transceiver on the PIC is covered by a rubber safety cap.
If it does not, cover the transceiver with a safety cap.
5. Orient the FPC so that the faceplate faces you.
6. Lift the FPC into place, and carefully align the sides of the FPC with the guides inside
the card cage.
7. Slide the FPC all the way into the card cage until you feel resistance.
8. Grasp both ejector handles, and rotate them clockwise simultaneously until the FPC
is fully seated.
Copyright © 2017, Juniper Networks, Inc.214
MX480 3D Universal Edge Router Hardware Guide

Juniper MX480 Specifications

General

Cooling	Front-to-back airflow
Operating System	Junos OS
Form Factor	Modular
Routing Engine	RE-S-1800x4
Maximum Capacity	7.68 Tbps
Throughput	Up to 3.84 Tbps per slot
Power Supply	Redundant AC or DC power supplies
Chassis Slots	6 slots
Operating Temperature	0°C to 40°C (32°F to 104°F)
Supported Protocols	BGP, OSPF, IS-IS, MPLS, IPv4, IPv6
Redundancy	Redundant Routing Engines, power supplies
