DC Power Cable Specifications for the MX480 Router
DC Power Cable Lug Specifications—The accessory box shipped with the router includes
the cable lugs that attach to the terminal studs of each power supply (see
Figure 48 on page 173).

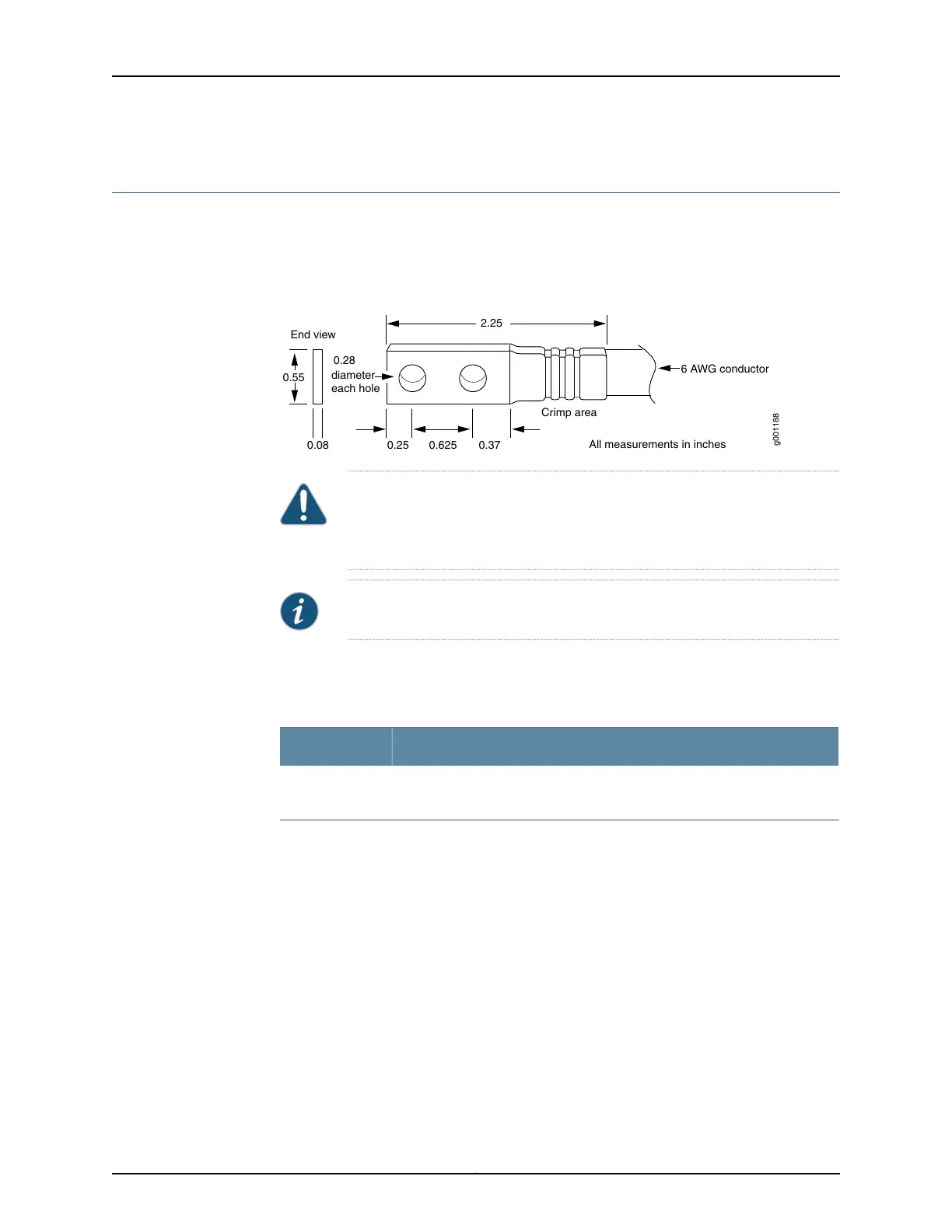

Figure 48: DC Power Cable Lug
Crimp area
6 AWG conductor
All measurements in inches
0.28
diameter
each hole
2.25
0.25 0.370.625
g001188
0.55
End view
0.08
CAUTION: Beforerouterinstallation begins, a licensed electrician must attach
a cable lug to the grounding and power cables that you supply. A cable with
an incorrectly attached lug can damage the router.
NOTE: The same cable lug is used for the grounding cable.
DC Power Cable Specifications—Table 97 on page 173 summarizes the specifications for
the power cables, which you must supply.
Table 97: DC Power Cable Specifications
Quantity and SpecificationCable Type
Eight 6-AWG (13.3 mm
2
), minimum 60°C wire, or as required by the local
code
Power
Related
Documentation
• DC Power Source Cabling for the MX480 Router on page 172
• MX480 DC Power Supply Description on page 102
