Repair Information 4-7
4023-001

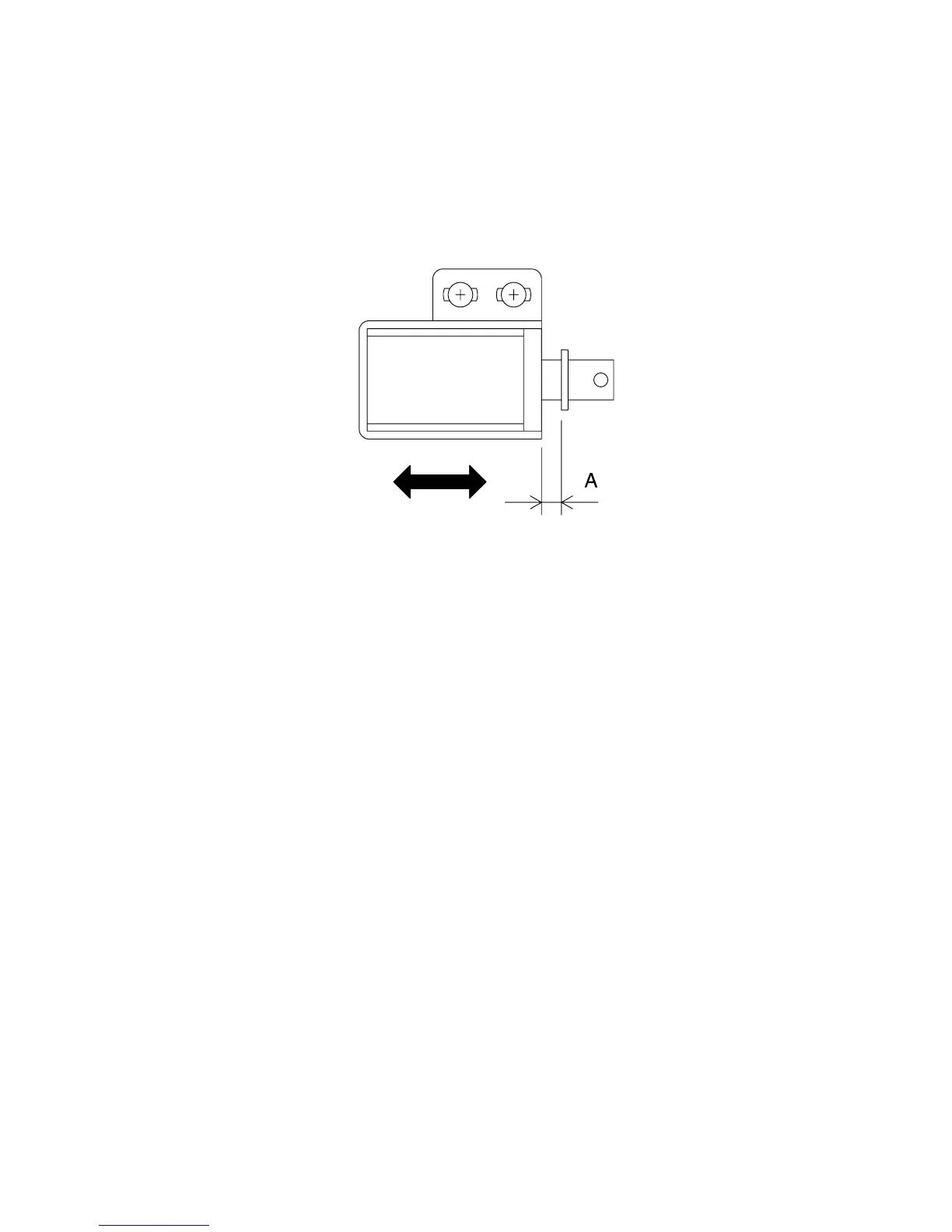

Upper Entrance Switching Solenoid (SL1)
1. Loosen the two screws.
2. Move SL1 left and right so that dimension A measures
4 ±1 mm.
3. Secure two screws.
