Omron Q2V Series User Manual

Parameter Details
12
12.2 b: APPLICATION
SIEPCYEUOQ2V01A Q2V Technical Manual 467
■ PID Control Operation
This figure shows PID control operation. The modified output (output frequency) changes when the drive uses
PID control to keep the deviation (the difference between the target value and the feedback value) constant.

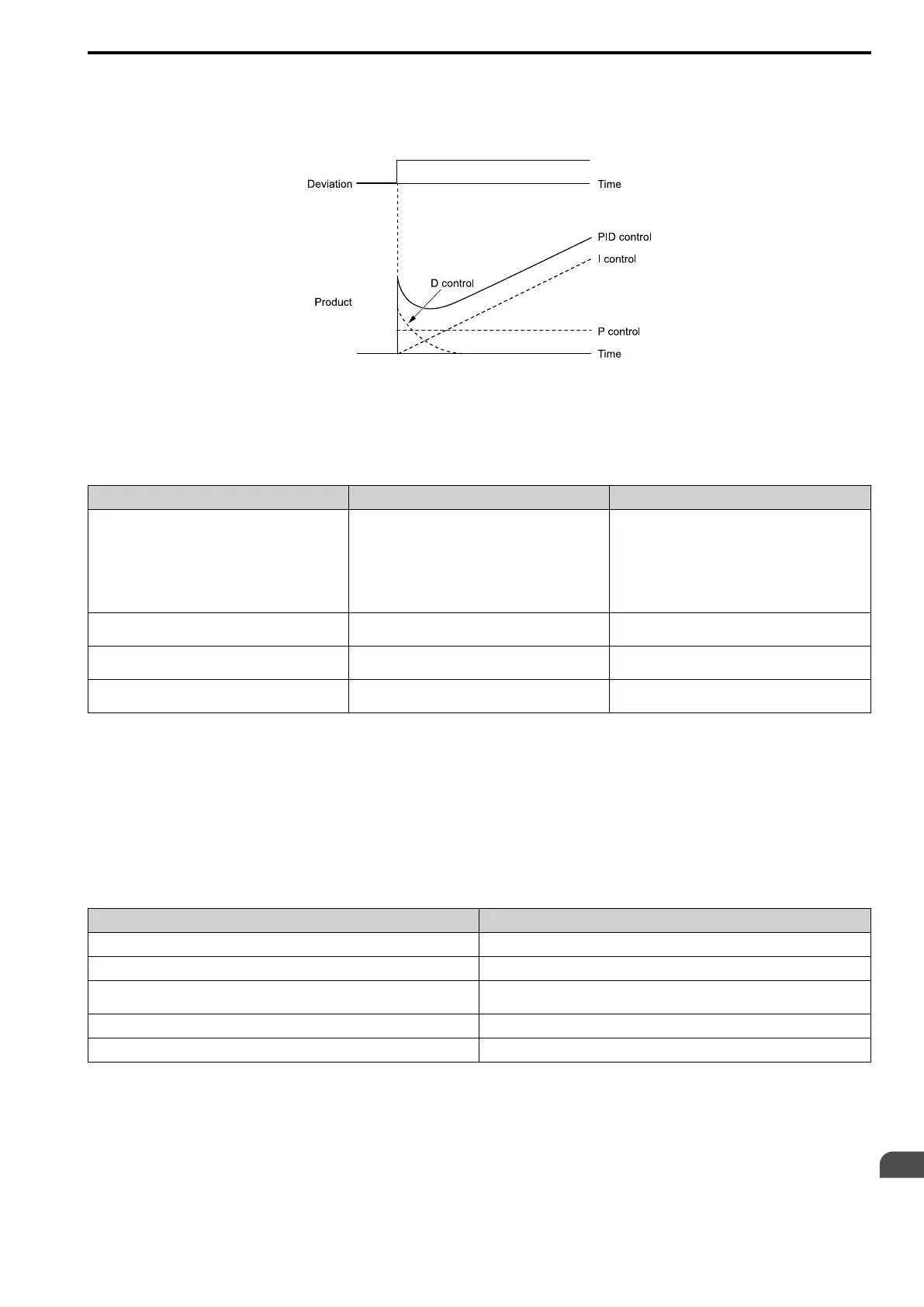

Figure 12.28 PID Control Operation
■ PID Control Applications
This table shows applications for PID control.
Table 12.12 PID Control Applications
Application Control Content Sensors Used
Speed Control • The drive uses a feedback signal for the machine
speed, and adjusts that speed to align with the target
value.
• The drive uses speed data from other machinery as the
target value to do synchronous control. The drive then
adds that target value to the feedback from the
machine it is operating to align its speed with the other
machinery.
Tacho generator
Pressure control The drive uses feedback from the actual pressure to hold
constant pressure.
Pressure sensor
Flow control The drive uses feedback from the actual flow to hold
constant flow.
Flow rate sensor
Temperature control The drive uses feedback from the actual temperature to
control a fan and hold constant temperature.
Thermocoupler, thermistor
■ Input Methods for the PID Setpoint
Use b5-01 = 1 [PID Enable = Enabled] and b5-70 to b5-72 to select how the PID setpoint is input to the drive.
When b5-70 = 0 [PID MainRefMode = PID only] or b5-70 = 1 [Fref + PID] and b5-72 = 0 [PID D-FF Mode =
D=Fdback], either the frequency reference set in b1-01 [Freq. Ref. Sel. 1] or b1-15 [Freq. Ref. Sel. 2] will be the
PID setpoint, or the one of the inputs in Table 12.13 will be the PID setpoint.
When b5-70 = 1 [Fref + PID] or b5-70 = 1 [Fref + PID] and b5-72 = 1 [D=Fdback], one of the inputs in Table
12.13 will be the PID setpoint.
Table 12.13 Input Methods for the PID Setpoint
Input Methods for the PID Setpoint Setting Value
MFAI terminal AI1 Set H3-02 = 10 [AI1 Function Selection = PID SetPoint].
MFAI terminal AI2 Set H3-10 [AI2 Function Selection] = 10.
Modbus register 0006H Sets Modbus register 000FH (Control Selection Setting) bit 1 to 1 (PID setpoint input).
Enters the PID setpoint to Modbus register 0006H (PID Target, 0.01% units, signed).
Pulse train input terminal DI Set H6-01 = 2 [PI Pulse Train Function = PID SP Value].
b5-19 [PID Setpoint Value] Set b5-18 = 1 [b5-19 PID SP Selection = Enabled]. Enters the PID setpoint to b5-19.
Note:
If you set two inputs for the PID setpoint, it will trigger operation error oPE07 [Analog Input Selection Error].
■ Entering the PID Feedback Value
You can use two methods to input the PID feedback value to the drive. One method uses a single feedback signal
for usual PID control. The other method uses two signals. The difference between those signals sets the deviation.
• Use a single feedback signal.
