12.3 C: TUNING
SIEPCYEUOQ2V01A Q2V Technical Manual 501

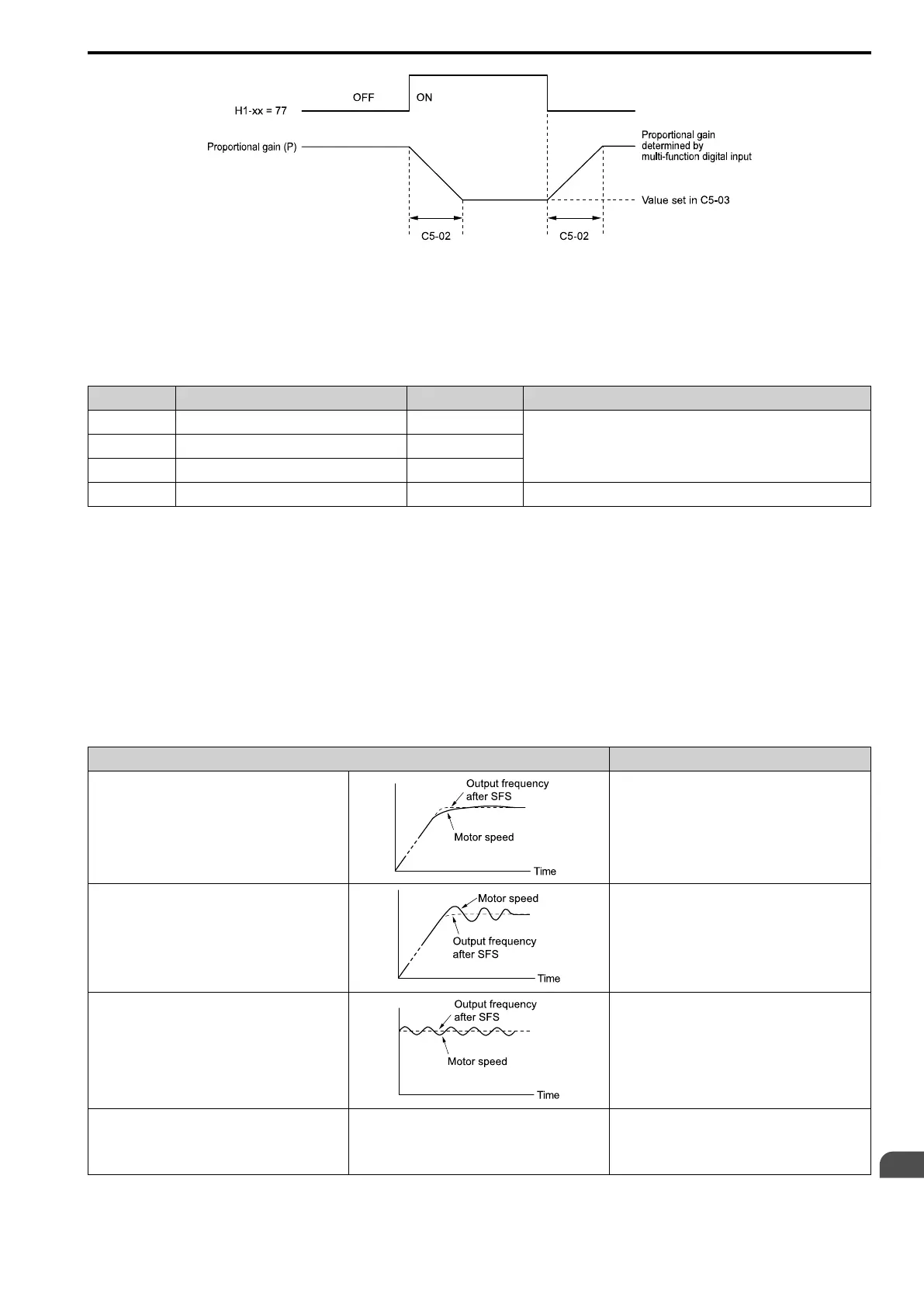

Figure 12.46 Proportional Gain through Multi-function Digital Input Switch
■ Speed Waveform Monitoring Method
To make small adjustments of ASR parameters, monitor the speed waveforms when you make the adjustments.
Table 12.21 shows example settings of parameters to monitor speed waveforms.
Table 12.21 Example Settings of MFAO Terminals to Monitor Speed Waveforms
No. Name Setting Value Description
H4-01 AO An.Out Select 116 Lets you use terminal AM to monitor U1-16 [SFS Output Frequency].
H4-02 AO An.Out Gain 100.0%
H4-03 AO An.Out Bias 0.0%
H4-07 AO Signal Level Select 0 Lets you monitor in a 0 V to 10 V range.
Based on this setting, MFAO terminal AM outputs the output frequency after SFS in a 0 V to 10 V (0% to 100%)
range. The MFAO common is terminal A0V:
The manufacturer recommends that you monitor the output frequency after SFS and the motor speed for delays in
response and differences in reference values.
■ Adjust ASR Parameters
Use Table 12.22 to adjust ASR. The table lists parameters for motor 1. You can make the same changes to motor 2
parameters when you run a second motor.
Note:
When adjusting the proportional gain and integral time, adjust the proportional gain first.
Table 12.22 ASR Response and Possible Solutions
Problem Possible Solutions
Speed response is slow.
• Increase C5-01/C5-03 [ASR PGain 1/ASR PGain 2].
• Decrease C5-02/C5-04 [ASR ITime 1/ASR ITime 2].
Overshoot or undershoot occurs at the end of acceleration
or deceleration.
• Decrease C5-01/C5-03.
• Increase C5-02/C5-04.
Vibration and oscillation occur at constant speed.
• Decrease C5-01/C5-03.
• Increase C5-02/C5-04.
• Increase C5-06 [ASR Delay Time].
Oscillation at low speed and response is too slow at high
speed.
Oscillation at high speed and response is too slow at low
speed.
-
When A1-02 = 6 [Control Method = PM AOLVector], use
C5-01 to C5-04 to set the best ASR settings for high and
low speed. Use C5-07 [ASR Gain Switch Frequency] to
switch the ASR proportional gain and ASR integral time
as specified by the output frequency.
