Omron RX2 Series User Manual

8 - 97
8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-4 Control Function
8
8-4-6 Forced Operation
Precautions for Correct Use
• For using the bypass mode, it is necessary to implement a interlock taking into consideration
the operation delay of the contactor when shifting to the commercial operation. •Make sure
that the system operation is safe in using the mode.
• The timing of the contactor control can be taken using the [EMBP] bypass mode signal (out-
put terminal: 076) as the contactor control signal. Take a interlock between the contactor on
the commercial power supply side and that on the inverter output side.
• Since the commercial circuit does not operate either when the earth leakage circuit breaker
(ELCB) trips, connect the commercial circuit of another system to MC2 if the backup is
required.
Example of timing from INV to the commercial operation
 Parameter Setting
Item Parameter Data Description
Default
data
Commercial power
supply bypass function
selection
[PA-04]
00 Disabled
00
01 Enabled
Delay time of Bypass
function
[PA-05] 0.0 to 1000.0(s)
Set the delay time until the bypass mode
operation.
5.0
M
R
S
T
U
V
W
Ai1(10V)
L
FW
RV
COM
AL1
AL0
AL2
THR
MC1
MC3
ELCB
FW
RV
MC2
H
R0
T0
NFB
16a
16c
EMBP

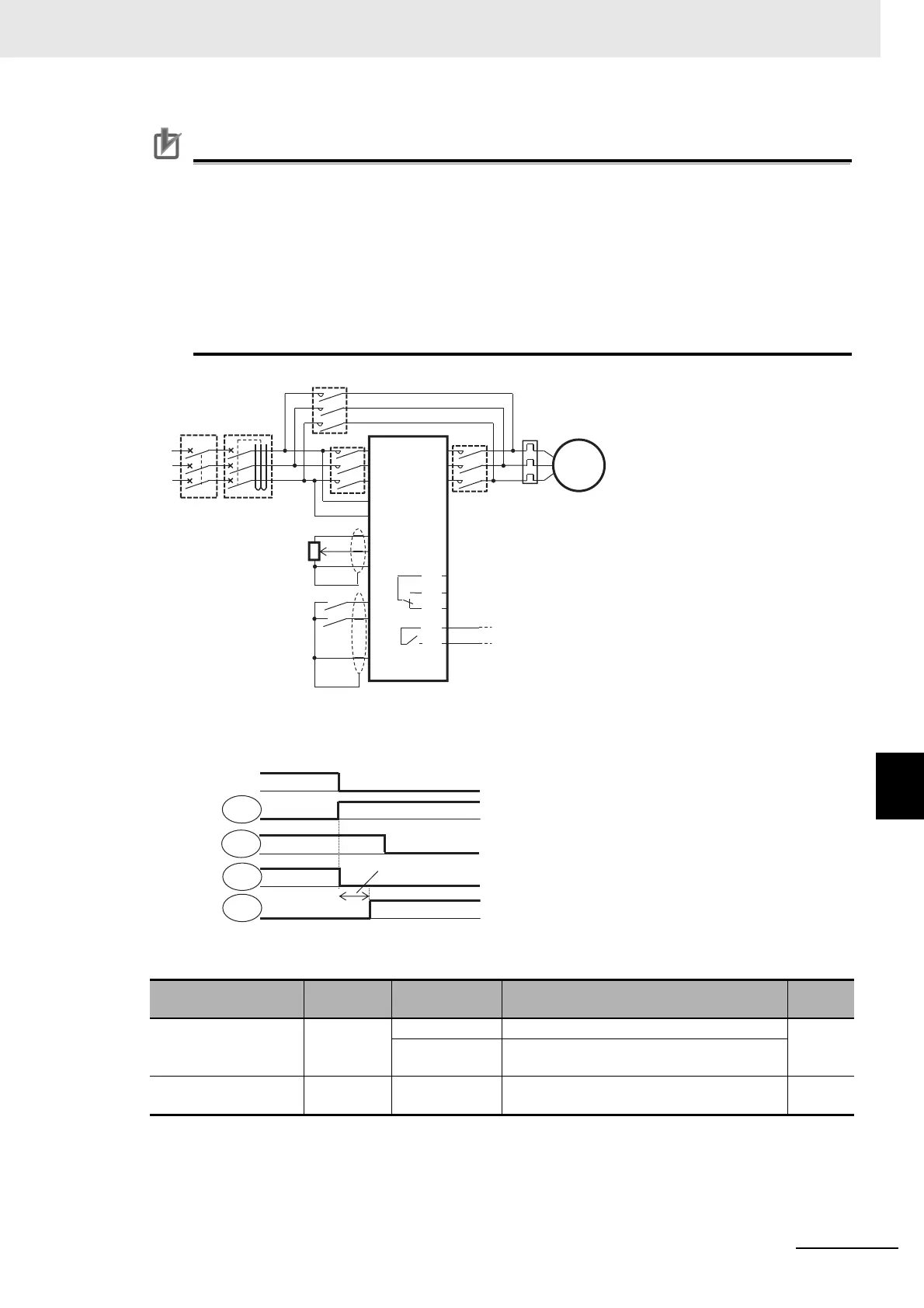

Sample connection diagram when shifting to the commercial operation and timing
To the contactor control
circuit
ON
MC2
ON
MC3
ON
EMBP
ON
MC1
Inverter output
Operation
Interlock time for MC2 and MC3
(0.5 to 1 s)
