Omron RX2 Series - Page 583

8 - 183
8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-11 Output Terminal Function
8
8-11-5 Analog Output Terminal Switch Settings

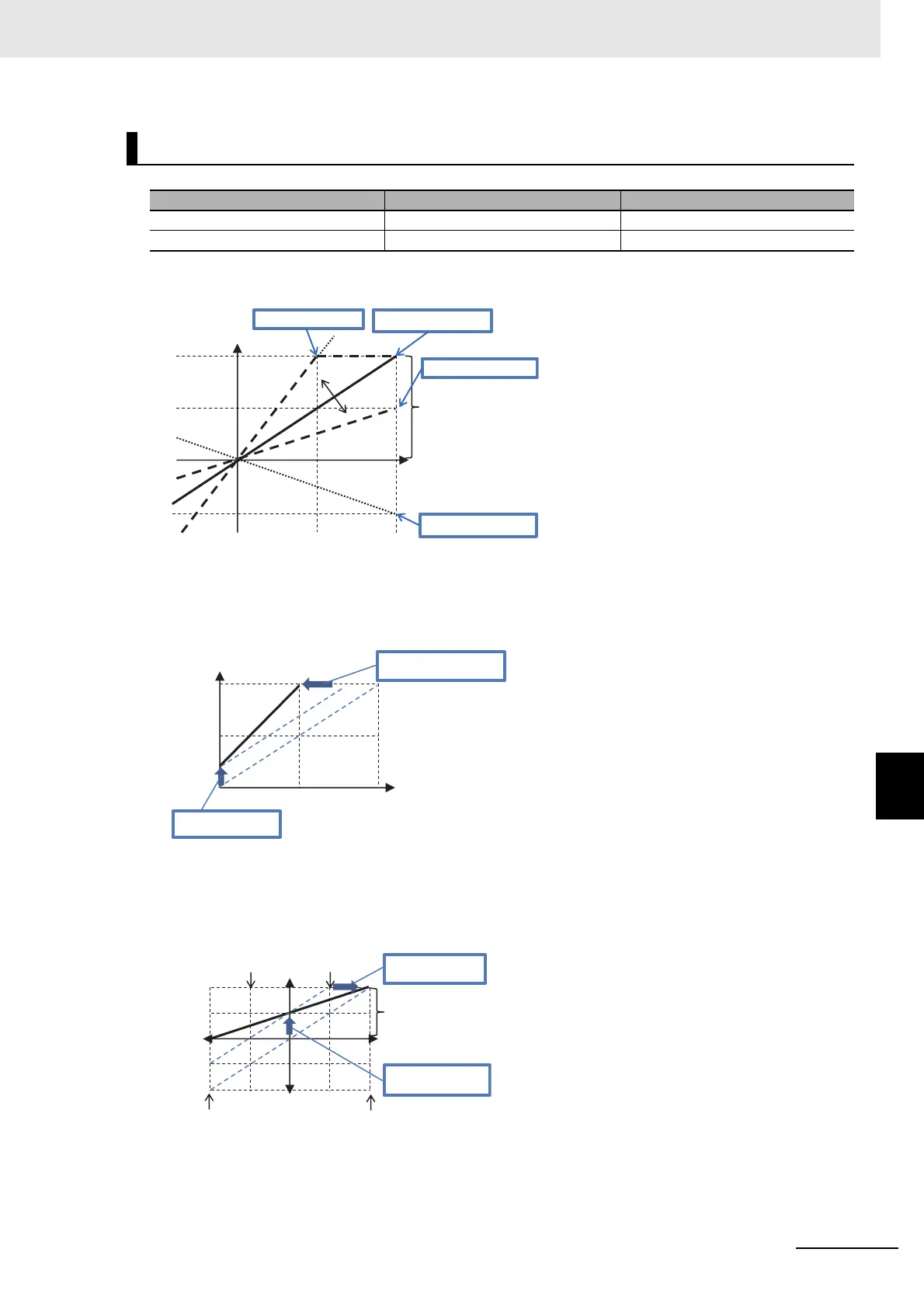

You can change an inclination as shown in the below figure.
(Ex.) Outputting information on the output current monitor to [Ao2] in a current range from 4 to 20 mA
Monitor the current in a range from 0 A to the inverter rated current.
[Cd-33]=20.0%, [Cd-34]=160.0%
(Ex.) Outputting information on the output torque monitor to [Ao2] in a voltage range from 0 to 10 V
Set a voltage output range from 0 to 10 V in a torque range from -200 to 200%.
[Cd-32]=01, [Cd-33]=50.0%, [Cd-34]=50.0%
Note When [Cd-32]=00 is set in the above described example, corresponding values in a range from 5 to 10 V
will be output for a range from 0 to -200% on the “(-) rated torque” side.
Gain Adjustment of Analog Output
Terminal Current/voltage Gain parameter
Ao1 Common to voltage/current [Cd-24]
Ao2 Common to voltage/current [Cd-34]
(V):(mA)
10 :20
0:0
0
5:10
-5:-10
Outputting will
be made in this
range.
Maximum
[Gain]=100.0(%)
[Gain]=50.0(%)
[Gain]=-50.0(%)
[Gain]=200.0(%)
Full scale (FS)
Change in
inclination
(mA)
20
0
0A
10
[Cd-33 ]= 20.0 (%)
4
[Cd-34 ]=16 0.0(%)
Rated current
Output current (A)
Rated current × 2
(V)
10
-10
0
0
[Cd-33 ]= 50.0%
[Cd-34 ]= 50.0%
(-) rated torque × 2
Output torque (Nm)
(+) rated torque × 2
Outputting will
be made in this
range.
(-) rated torque (+) rated torque
