Omron RX2 Series - Page 587

8 - 187
8 Applied Settings
High-function General-purpose Inverter RX2 Series User’s Manual
8-11 Output Terminal Function
8
8-11-6 Output Functions (FM)

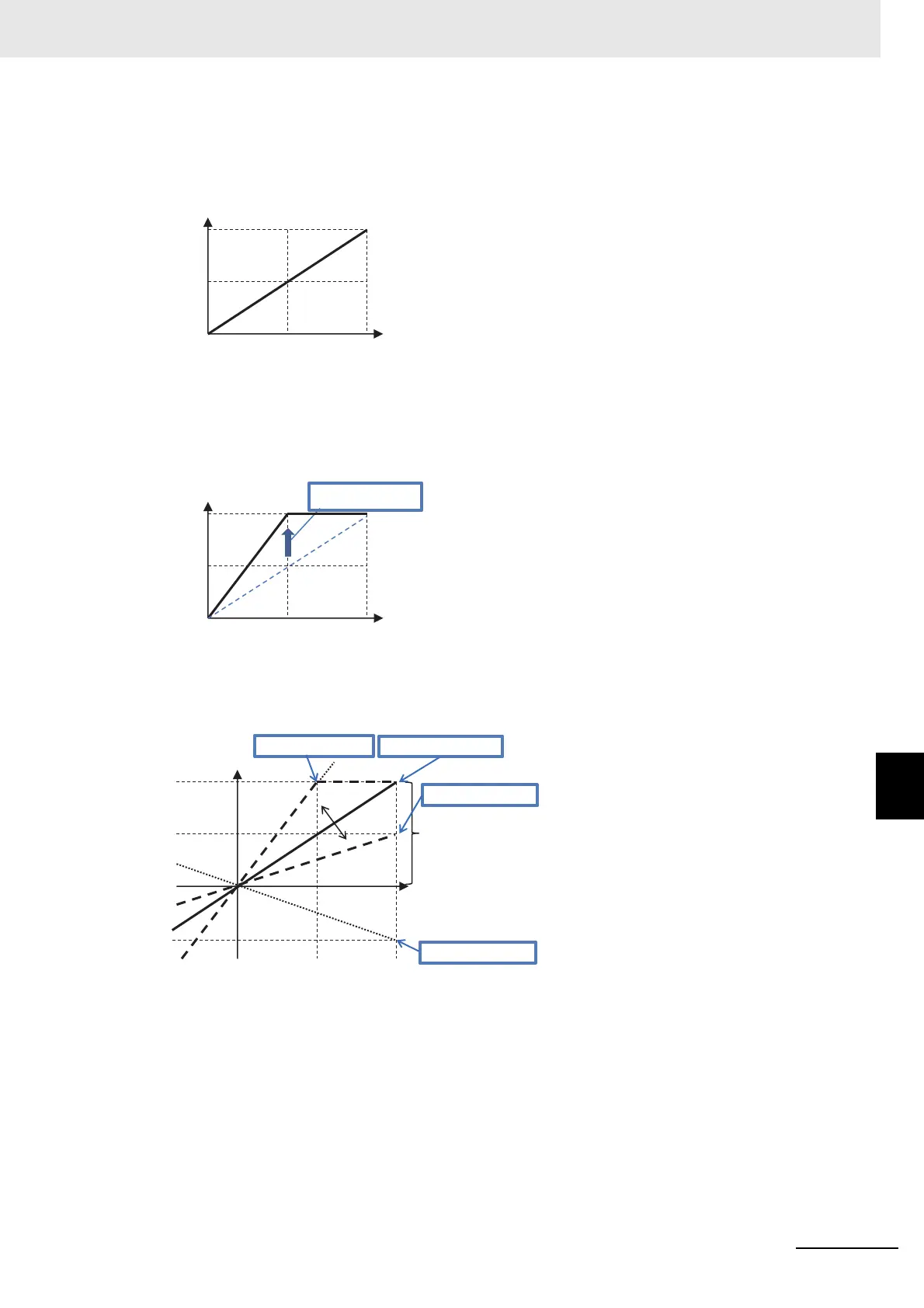

(Ex.) PWM-outputting [dA-01] output frequency monitor
Output until a current reaches the maximum frequency when the PWM output is 100%.
[Cd-13]=0.0%, [Cd-14]=100.0%
(Ex.) PWM-outputting [dA-02] output current monitor
Output until a current reaches the inverter rated current when the PWM output is 100%.
[Cd-13]=0.0%, [Cd-14]=200.0%
With the “Gain adjustment [Cd-14]” of the “PWM output,” you can change an inclination as shown in the
below figure.
t/T(%)
10 0
0
60Hz
0Hz
50
30Hz
Maximum frequency
Output frequency (Hz)
t/T(%)
10 0
0
0A
50
[Cd-14]=200.0%
Rated current × 2 (A)
Output current (A)
Rated current
(A)
t/T(%)
10 0
0
[Cd-14]=200.0(%)
[Cd-14]=50.0(%)
[Cd-14]=100.0(%)
0
50
-50
[Cd-14]=-50.0(%)
Full scale (FS)
Outputting will
be made in
this range.
Maximum
Change in
inclination
