8 Applied Settings
8 - 188
High-function General-purpose Inverter RX2 Series User’s Manual

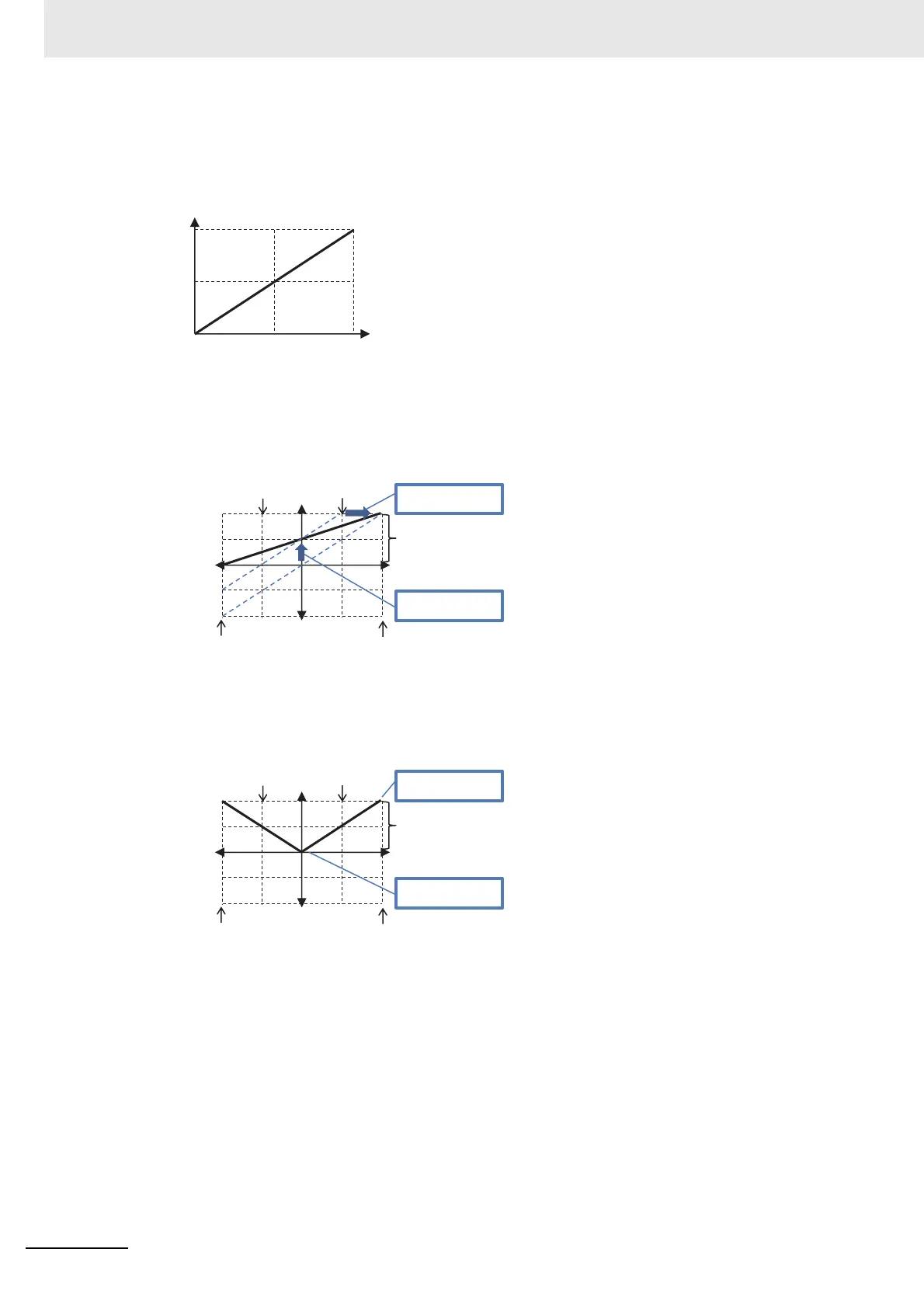

(Ex.) PWM-outputting [dA-18] output voltage monitor
Monitoring of Output Voltage
[Cd-13]=0.0%, [Cd-14]=133.0%
(Ex.) PWM-outputting [dA-17] output torque monitor
Set PWM output range from 0 to 100% in a torque range from -200 to 200%.
[Cd-12]=01, [Cd-13]=50.0%, [Cd-14]=50.0%
(Ex.) PWM-outputting [dA-17] output torque monitor
Set PWM output range from 0 to 100% in a torque range from 0 to ±200%.
[Cd-12]=00, [Cd-13]=0.0%, [Cd-14]=100.0%
t/T(%)
10 0
0
200V
0V
50
100V
Motor rated voltage
Output voltage (V)
t/T(%)
10 0
-10
0
0
[Cd-13]=50.0%
[Cd-14]=50.0%
(-) rated torque × 2
Output torque (Nm)
(+) rated torque × 2
Outputting will be
made in this
range.
(-) rated torque
(+) rated torque
t/T(%)
10 0
-10
0
0
[Cd-13]=0.0%
[Cd-14]=100.0%
(-) rated torque × 2
Output torque (Nm)
(+) rated torque × 2
Outputting will be
made in this
range.
(+-) rated torque (+) rated torque
