SECTION 05: COOLING SYSTEM
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
31

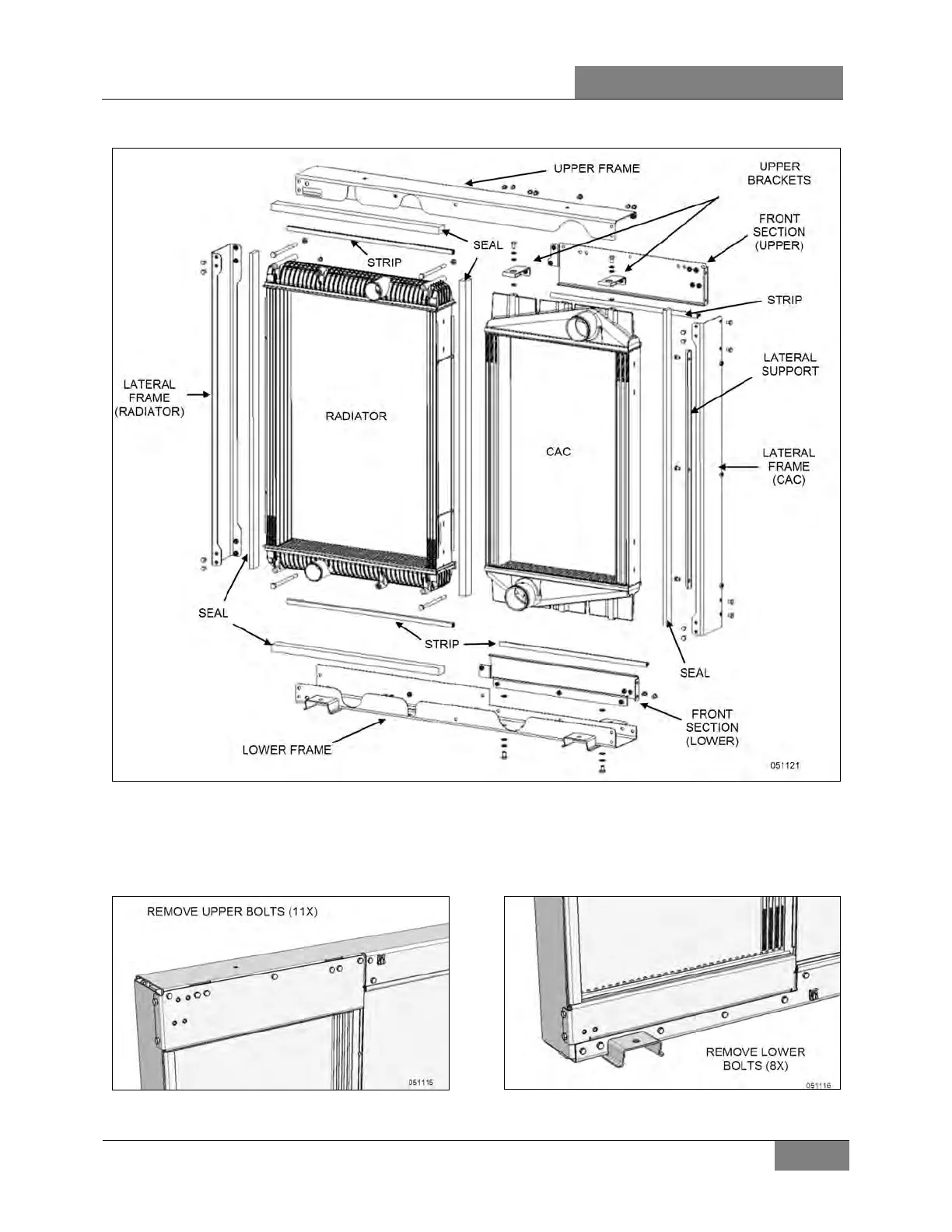

FIGURE 46: COOLING PACK EXPLODED VIEW
7. Remove CAC upper front frame structure by
unscrewing the 11 hex bolts holding it
(Figure 47).
FIGURE 47: UPPER FRAME BOLTS
8. Remove the CAC lower front frame structure
by unscrewing the 8 hex bolts holding it
(Figure 48).
FIGURE 48: LOWER FRAME BOLTS

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
