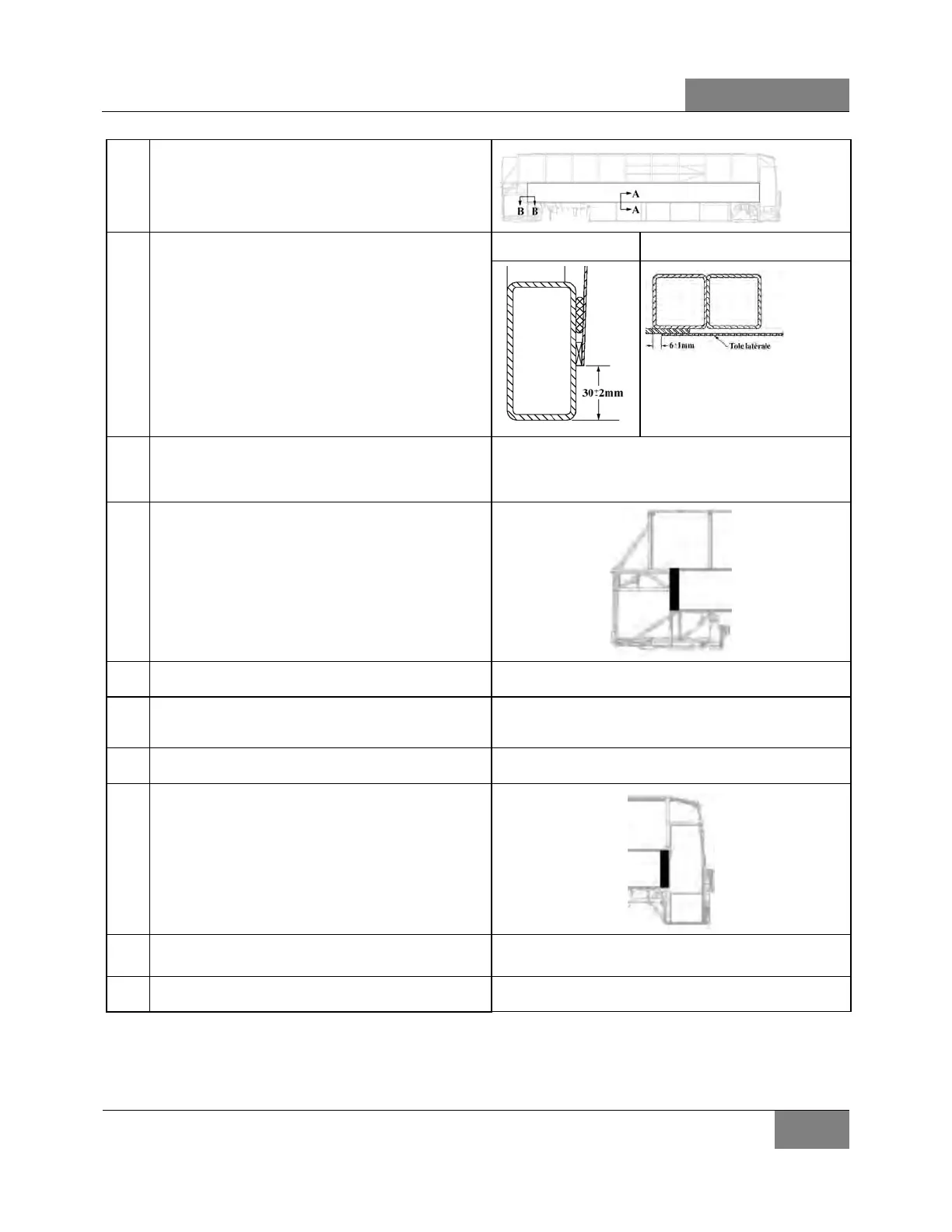

SECTION 18: BODY
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
79
G
Install side panel onto support jig.
H
Position side panel in front of vehicle structure
Section A-A Section B-B
I
Perform final adjustment to make sure that side
panel is true and square
30 mm. ± 2 with reference to bottom tubing
6 mm ± 1 with reference to vertical tubing
J
Sand rear of side panel 2" wide
K Perform tig spot welding (1” apart) Quantity of "tig spot": 30 minimum.
L
Install pulling equipment at the other end of side
panel
M Make a final adjustment in height
N
Sand front of side panel 2" wide
O
Pull side panel so that panel moves 1/8”
Make sure the equipment pulls along the whole width of
side panel
P Perform tig spot welding Quantity of "tig spot": 30 minimum.
