Improving level performance
R&S
®
SMA100B
224User Manual 1178.3834.02 ─ 09
b) Proceed with step 4.
3. If you need to create a file:
a) Select "UCOR Data > New".
b) Enter the filename UCOR_Data and confirm with "Ok".
c) Choose the file and confirm with "Select".
d) Select "Edit UCOR Data".
e) To fill the user correction data table, proceed as described in Chapter 7.7, "List
editor", on page 207.
4. Select "RF Level > RF State > On".
5. Select "User Cor. Data > State > On".

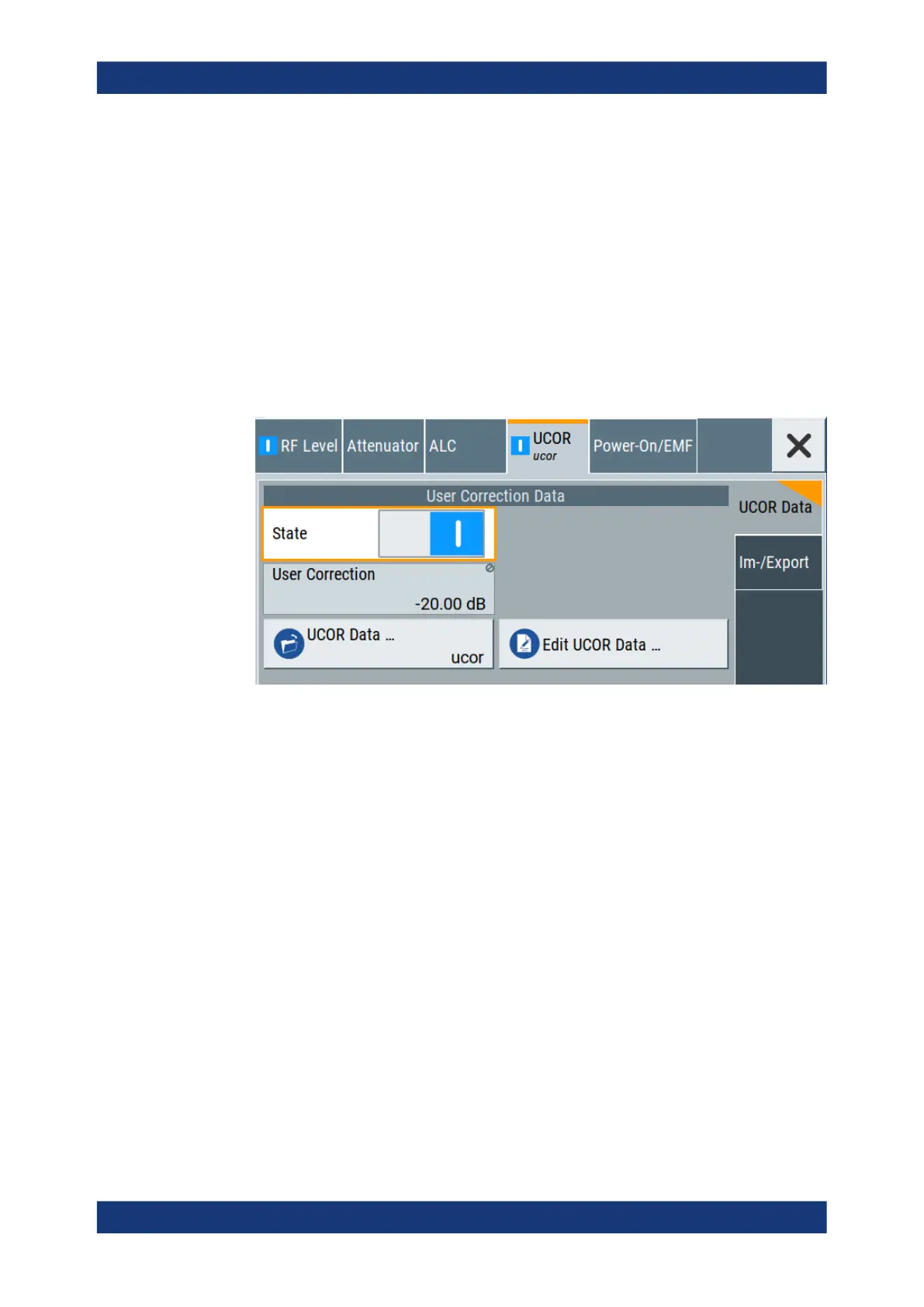

The "UCOR" dialog contains all settings for creating and handling files with user-
defined level correction values.
The remote commands required to define these settings are described in Chap-
ter 14.16.3, "SOURce:CORRection subsystem", on page 634.
Settings
State............................................................................................................................224
User Correction...........................................................................................................224
UCOR Data.................................................................................................................225
Edit UCOR Data..........................................................................................................225
State
Activates user correction.
The R&S SMA100B displays the status icon "Lev Ucor" in the "Level" panel.
Remote command:
[:SOURce<hw>]:CORRection[:STATe] on page 639
User Correction
Indicates the corrected level value for a specific frequency point.
User correction
