3C-10 STEERING WHEEL, COLUMN AND LOWER SHAFT
STEERING LOWER SHAFT
Removal

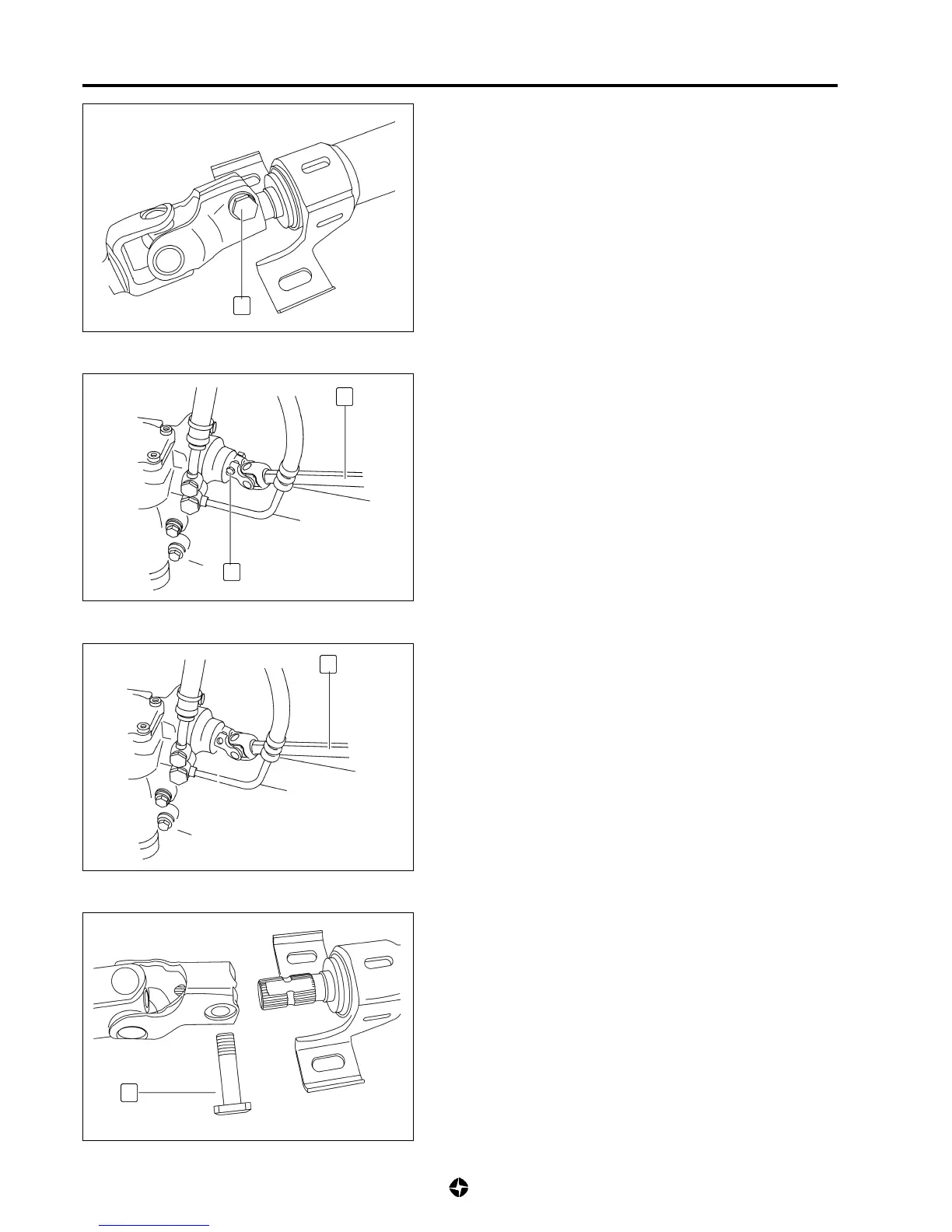

1) Remove screw (1) connecting steering column with steering
lower shaft.
2
1
1
2) Remove screw (2) connecting steering lower shaft with the
power steering gear box.
3) Remove lower shaft (3) toward the steering box until
disconnect it of the threading of the steering column.
4) Remove steering lower shaft.
Installation
1) Fit steering lower shaft (3) till the bottom of the box till.
2) Connect steering lower shaft (3) in the threaded end of the
steering column.
3) Install screw joining lower shaft to the steering box, tightening
to the specified torque.
Tightening torque of the screw joining lower shaft to
the box:
2 ÷ 3 Kg-m (20 ÷ 30 Nm)
4) Install bolt (1) joining lower shaft to steering column,
tightening to the specified torque.
Tightening torque of the screw joining lower shaft to
the steering column:
2 ÷ 3 Kg-m (20 ÷ 30 Nm)
3
3
