Santana PS-10 User Manual

FRONT DRIVE SHAFT 4A-13
2
1
4
5
3
6
7
8
6

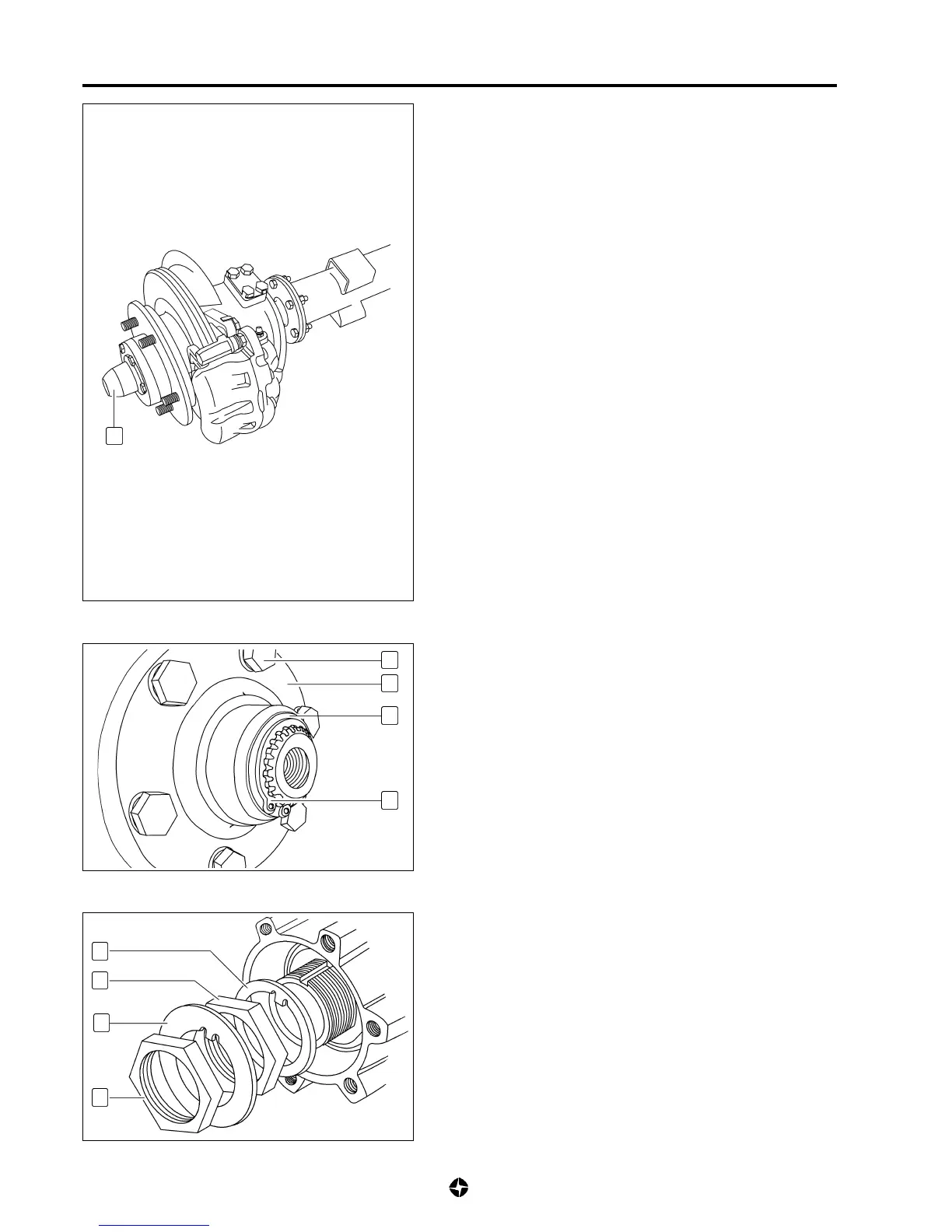

REMOVAL, REVISION AND INSTALLATION OF
THE STEERING PIVOT AND WHEEL HUB
ASSEMBLY
NOTE:
If repair is going to be done as a whole ensemble
away from the vehicle, remove steering pivot ens-
emble (see 4A-3) and screw it to support ref. 192170.
Removal
1) Remove or disconnect the following components: the o
adequate wheel.
• Caliper.
• Tie rod end (see 4A-3).
2) Dismantle hub cap (1).
Hub and flange removal
3) Remove oil-seal circlip (2) from rotating shaft and shim (3).
4) Remove fixing screws (4) from the drive shaft flange (5) and
take it away.
5) Straighten wings of catching washer (7).
6) Remove bushing nut and counter nut (6) using key ref. no.
161950, catching washers (7) and (8).
