4A-14 FRONT DRIVE SHAFT
11
9

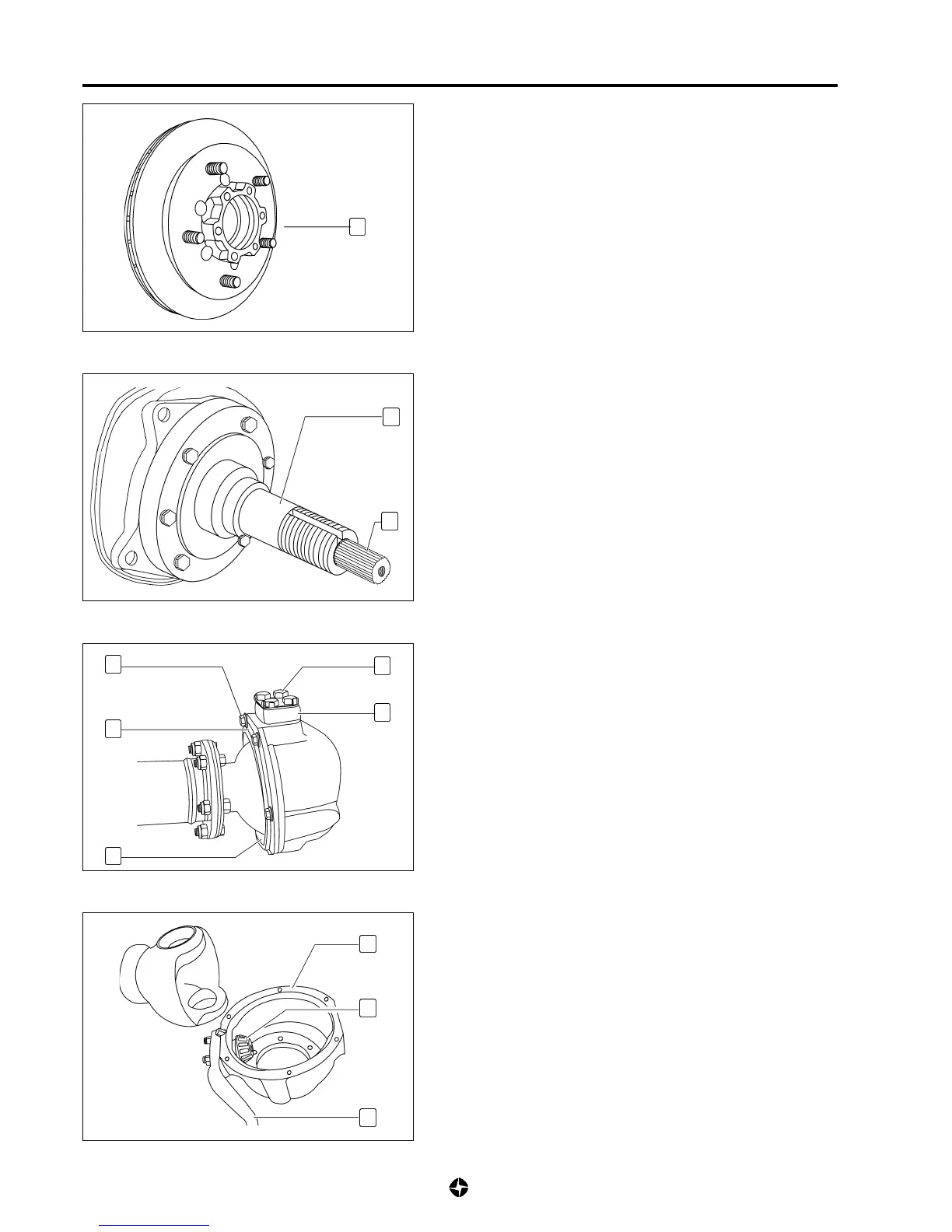

7) Withdraw wheel hub and disc (9)
8) Remove wheel spindle (10) and after the drive shaft remove
(11).
Removal hemisphere and housing lodging rotation
shaft
9) Remove screws (12) fixing the oil-seal to extension case
(13), take away extension case and oil-seal (14).
10) Straighten screw blocking plates (15), remove screws and
withdraw upper rotation axle (16) with the adjustment plates;
the upper bearing will remain lodged into the hemisphere.
14
13
12
16
15
11) Take away housing (17) lodging rotation axles, joined to the
rotation axle/lower arm (19) and bearing (18).
17
18
19
10
