5-24 BRAKES
BRAKE DISC ASSSEMBLY REPAIR
AND INSPECTION
PADS SUBSTITUTION
1) Loose wheel nuts.
2) Lift the vehicle and remove wheel.

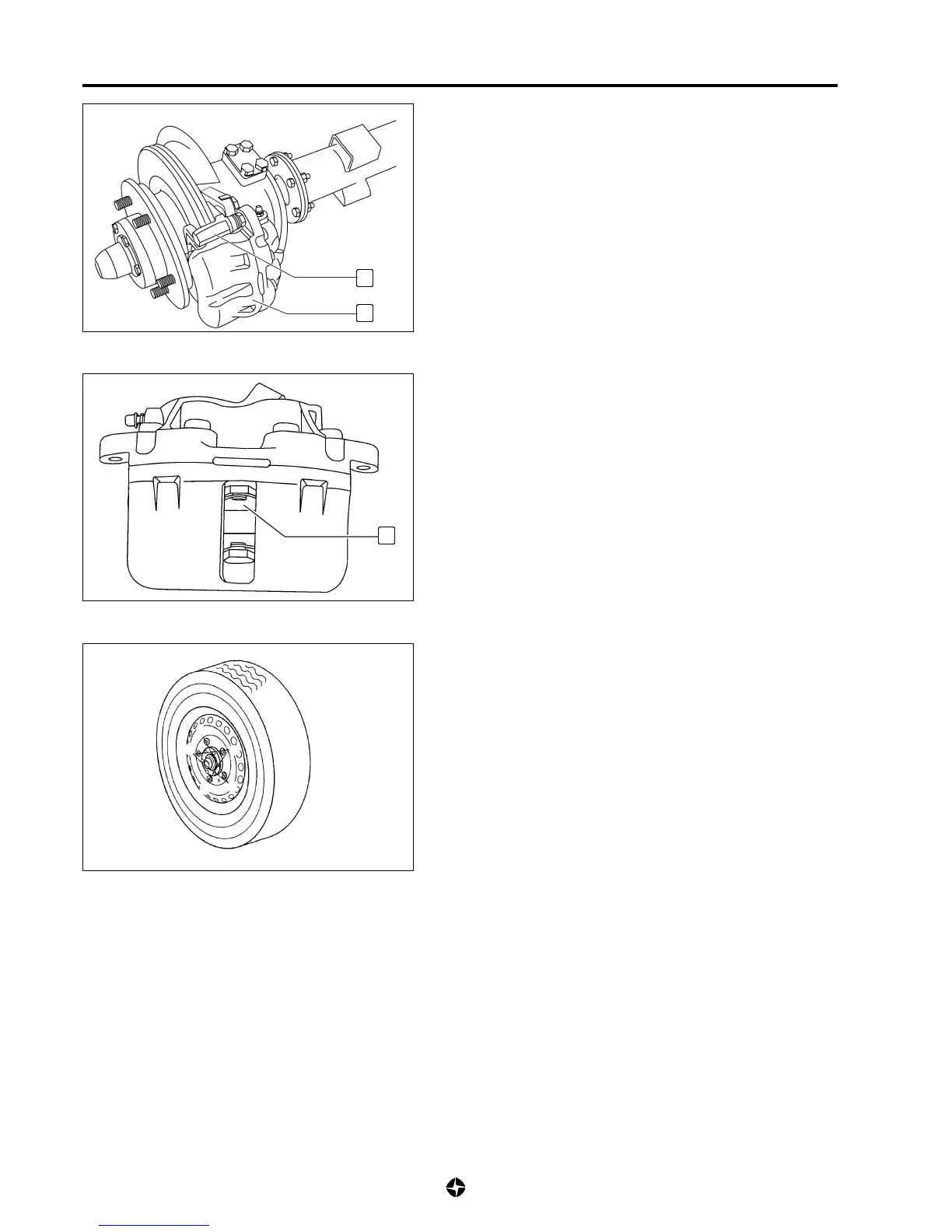

3) Remove brake caliper fixing screws (1) from connection to
support (2) and pull them apart without forcing hose.
4) Substitute pads (3) by new ones.
5) Install caliper (1) in support (2) and tighten screws to specified
tightening torque.
Tightening torque for screws fixing clamp:
3.1 ÷ 3.5 Kg-m (31 ÷ 35 Nm)
6) Install wheel and fit tightening nuts.
7) Bring down the vehicle and tighten wheel fixing nuts to
specified tightening in the sequence order shown in the
figure.
Tightening torque for wheel nuts:
11 ÷ 17 Kg m (110 ÷ 170 Nm)
2
1
3
3
1
4
2
5
