BRAKES 5-25
PARKING BRAKE SHOES AND DRUM
MECHANISM SUBSTITUTION
1) To carry out substitution of the parking brake shoes and
drum assembly, (see 7D-9).

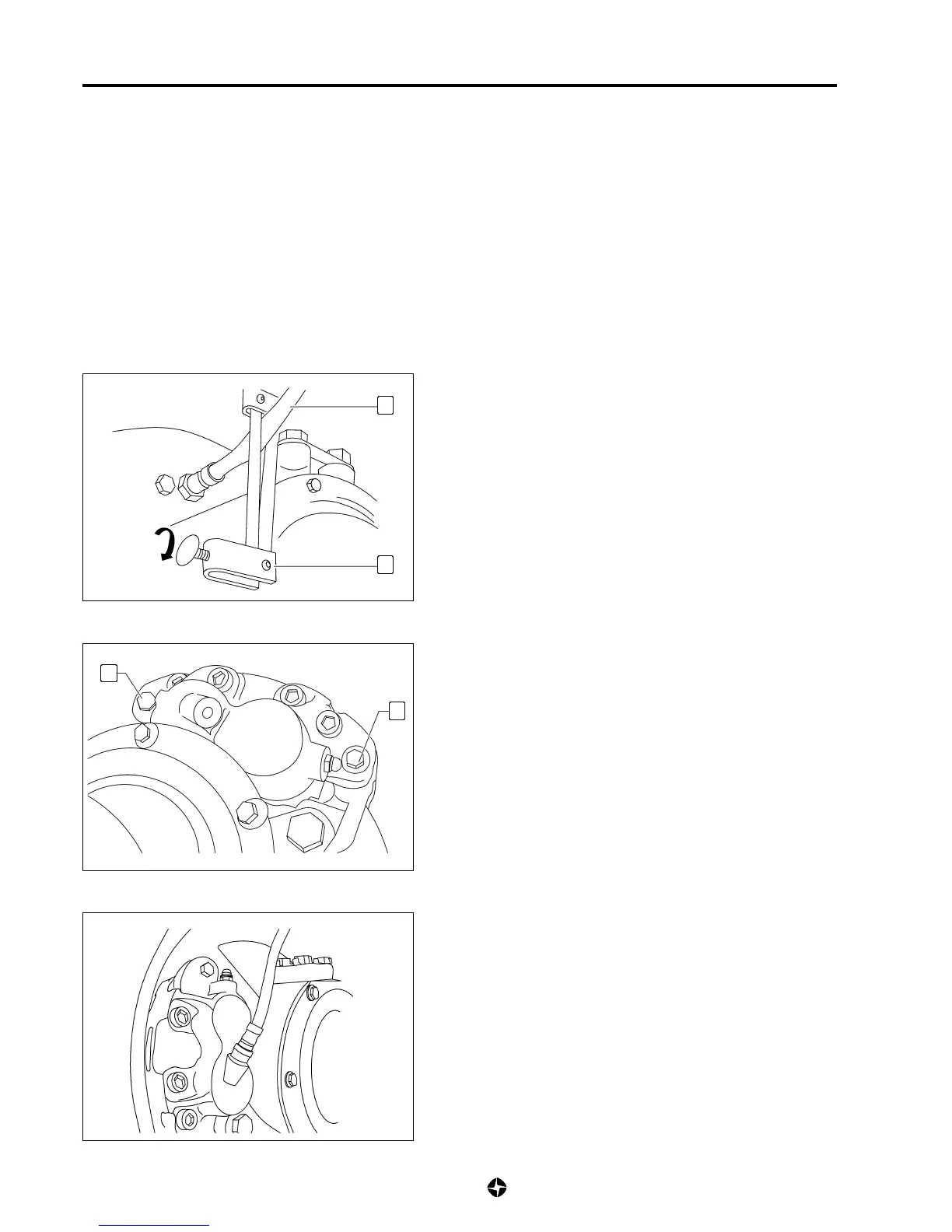

BRAKE CALIPER ASSEMBLY SUBSTITUTION
1) Remove wheel.
2) Install a Girling clamp (A) ref. 181661 in the brake hose (1) to
strangle brake fluid falling out
3) Remove hose from connection to brake caliper.
4) Remove screws (2) fixing brake caliper to support and extract
it.
5) Substitute brake pads if necessary.
6) Install a new brake caliper and fix it with screws to specified
tightening torque.
Tightening torque for screws fixing brake clamp:
3.1 ÷ 3.5 Kg-m (31 ÷ 35 Nm)
7) Install brake hose, fixing it at the specified tightening torque
and withdraw the strangulation Girling clamp.
Tightening torque for fixing brake sleeve to the brake
clamp: 2 ÷ 2.5 Kg m (20 ÷ 25 Nm)
8) Once the brake caliper assembly has been installed, carry
out purging of brakes system (see 5-17) and check there are
no leaks in the circuit.
9) Install wheel (see 3F-4) and check brakes on road.
1
A
2
2
