6A-52 ENGINE REPAIR

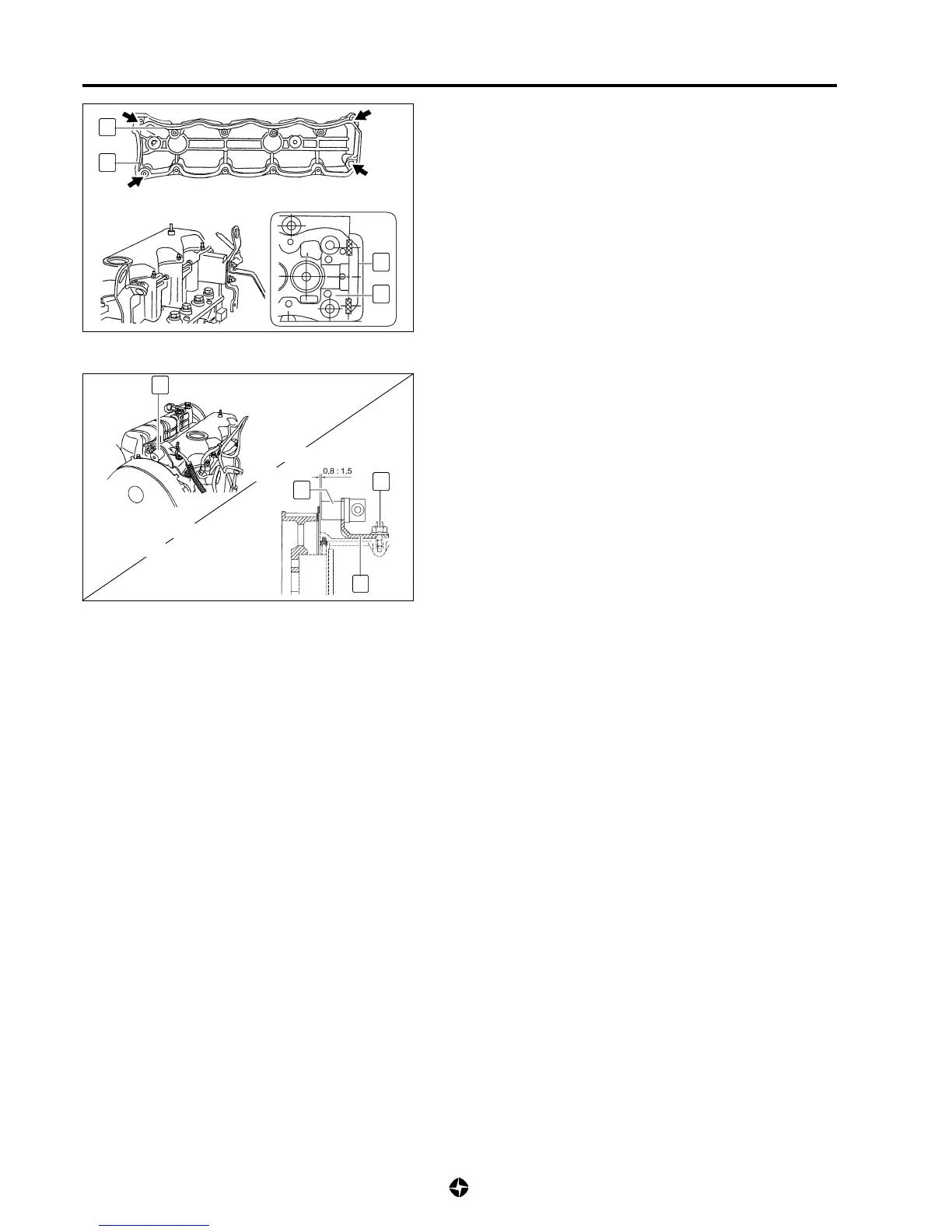

Assembly of plungers covers
8) Take away sealant from the cavities located between the
back cover (7) and cylinder head (8); fill them with
recommended sealant ref. 790962.
9) Fit new gasket (2) in plungers cover (6). Apply in angles
indicated ( ) at plungers cover ~10 gr. of recommended
sealant ref. 790963; install cover and tighten nuts to the
specified tightening torque.
Tightening torque at nuts in plungers cover:
1 Kg-m (10 Nm)
6
2
7
8
10) Install camshaft sensor (9) and position adjust the clearence
to the specified measure with nuts (10) and support (11)
(common rail engine)(common rail engine)
(common rail engine)(common rail engine)
(common rail engine)
NOTE:
When install maintain the parallelism betwen sensor
and inside surface of pulley
Clearence between sensor and camshaft pulley:
0,8 ÷ 1,5 mm
11) Install upper soundproof cover with its nuts tighten moderaty.
Tightenin torque for nuts of upper soundproof cover:
0,5 Kg-m (5 Nm)
12) Fix electroinjectors wire in its yokes, fixing its with support
and install the side soundproof
(common rail engine)(common rail engine)
(common rail engine)(common rail engine)
(common rail engine)
¨
9
10
9
11
