ENGINE REPAIR 6A-59
REMOVAL AND INSTALLATION OF GENERATOR
AND SUPPORT
Removal
1) Disconnect battery.
2) Disconnect generator electrical terminals.
3) Remove driving belt of water pump and generator (see
6A-26).

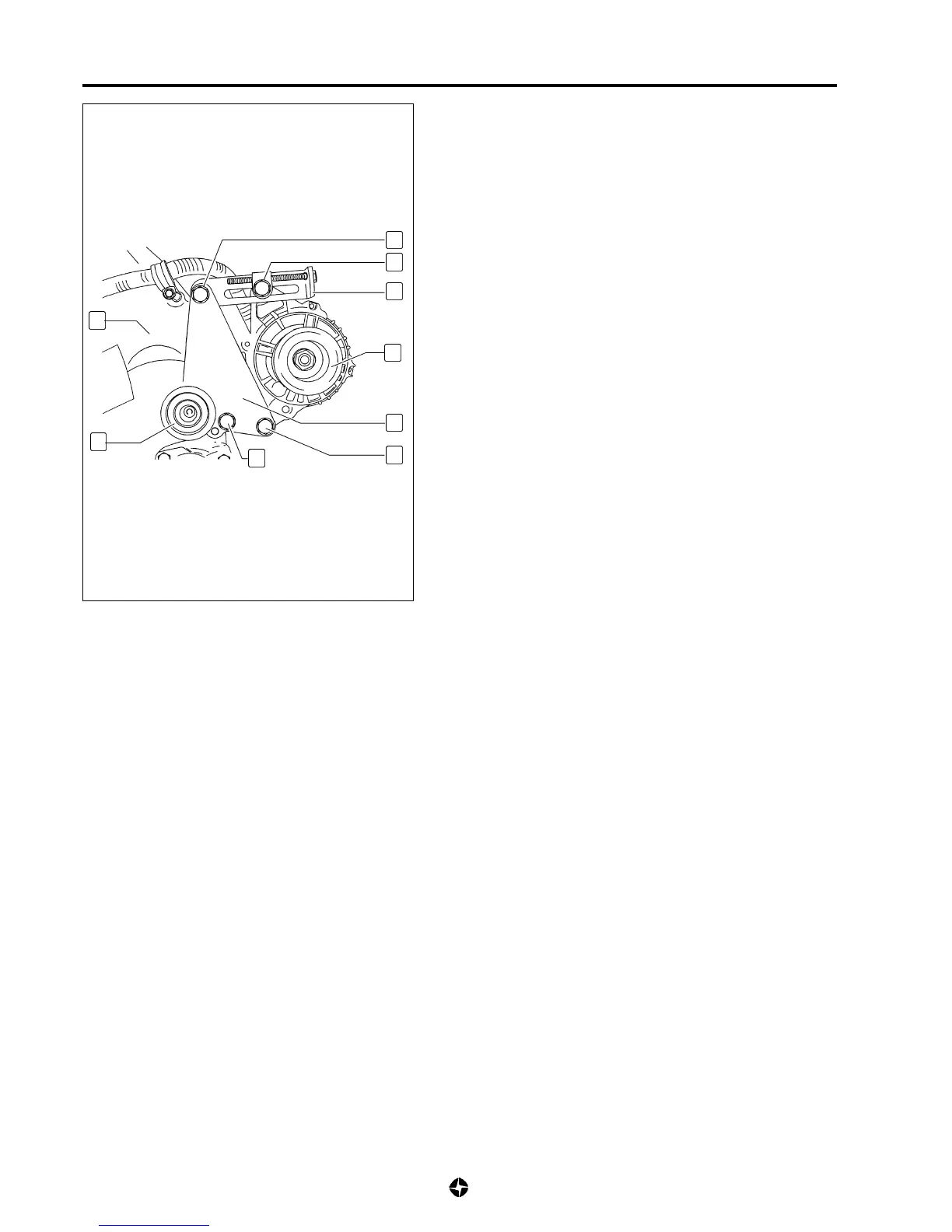

4) Remove screws (2) and (6) and take away generator (4).
Front support removal
5) Remove screws (1) and (7), withdraw front support (5) and
tensor (3).
NOTE:
Front support (5) should be removed when the required
tasks warrant the need of remove the timing upper
cover (A).
6) If there is play or abnormal noises on rotation of roller (8),
replace it.
Installation
1) Reverse removal procedures, apply the specified tightening
torques and those specified in the complementary tasks.
Tightening torque for screw (7) of front support:
5 Kg-m (50 Nm)
2) For installation of driving belt of water pump and generator
as well as for applying the tightening torques of screws fixing
front support and generator, (see 6A-26).
A
8
1
2
3
4
5
6
7
