6A-88 ENGINE REPAIR

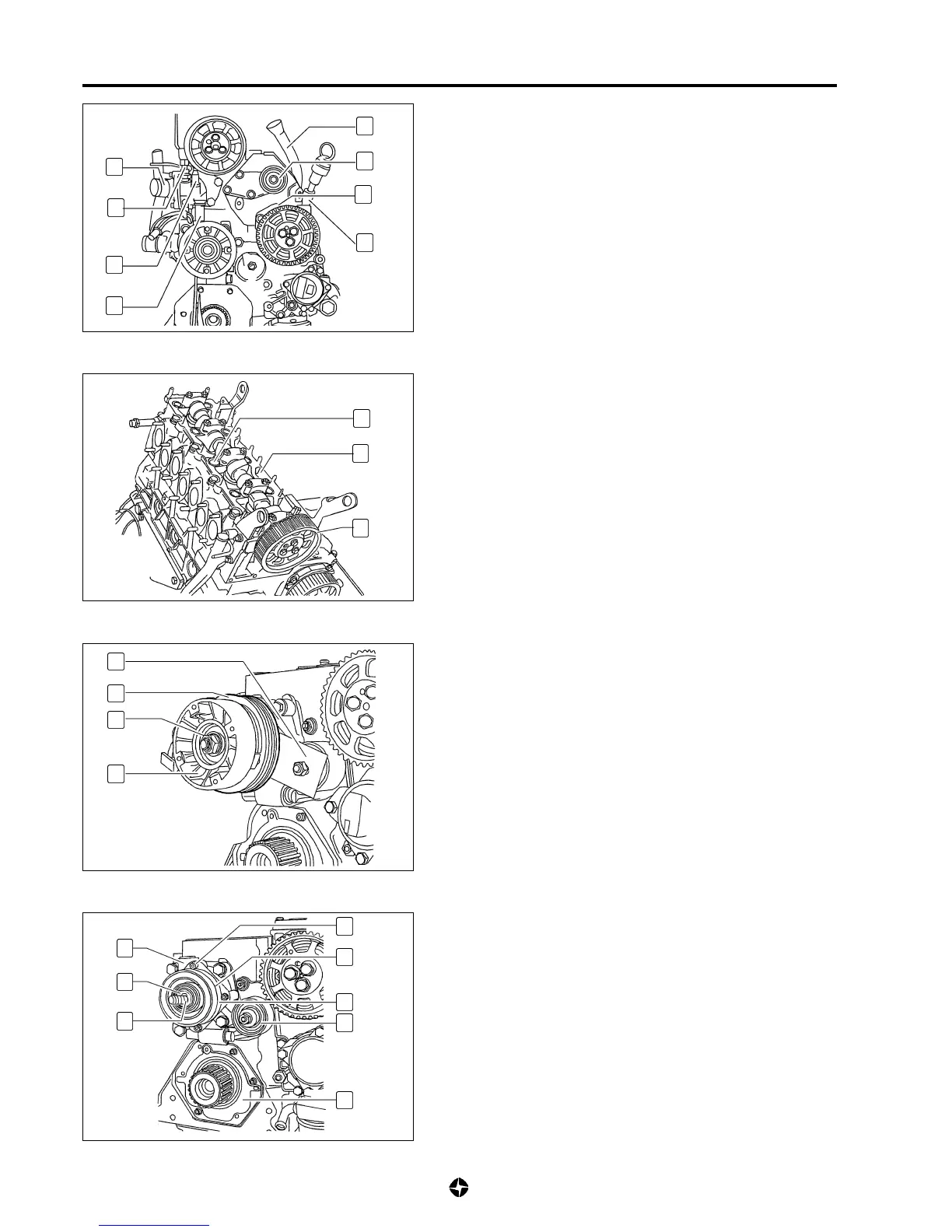

6) Remove:
• Fixed tensioning roller (38) and internal protection (39).
• Thermostat box (33), switches of temperature (34) and (35)
and hose (36) of connection with water pump.
• Oil filling spout (37) and assembly oil level gauge rod (40).
7) Remove the camshaft driving gear (43).
8) Remove the screws (41) fixing cylinder head (42); extract it
and withdraw gasket.
D
44
45
46
43
42
41
48
47
49
50
51
52
53
54
Cylinders block removal
Front part
1) Prepair a metal sheet (D) in order to use it as a tool, to
prevent electromagnetic pulley from turning (44). Fix the sheet
as shown, dismantle nut (45) and remove fan hub (46).
NOTE:
The nut (45) fixing hub threads leftwards.
2) Remove:
• Pulley (52), elastic opening ring (47) and rear end washer
(49).
• Fixing nuts (50) and remove the electromagnetic gasket
(51).
• Water pump (48) and adjusting tensioning roller (53).
• Assembly cover and front oil-seal (54).
33
34
35
36
37
38
39
40
