7C-6 CLUTCH
REPLACEMENT OF THE MAIN CLUTCH
CYLINDER
Removal
1) Release liquid inlet and outlet pipes.
2) Remove pedal support setscrews from dashboard.

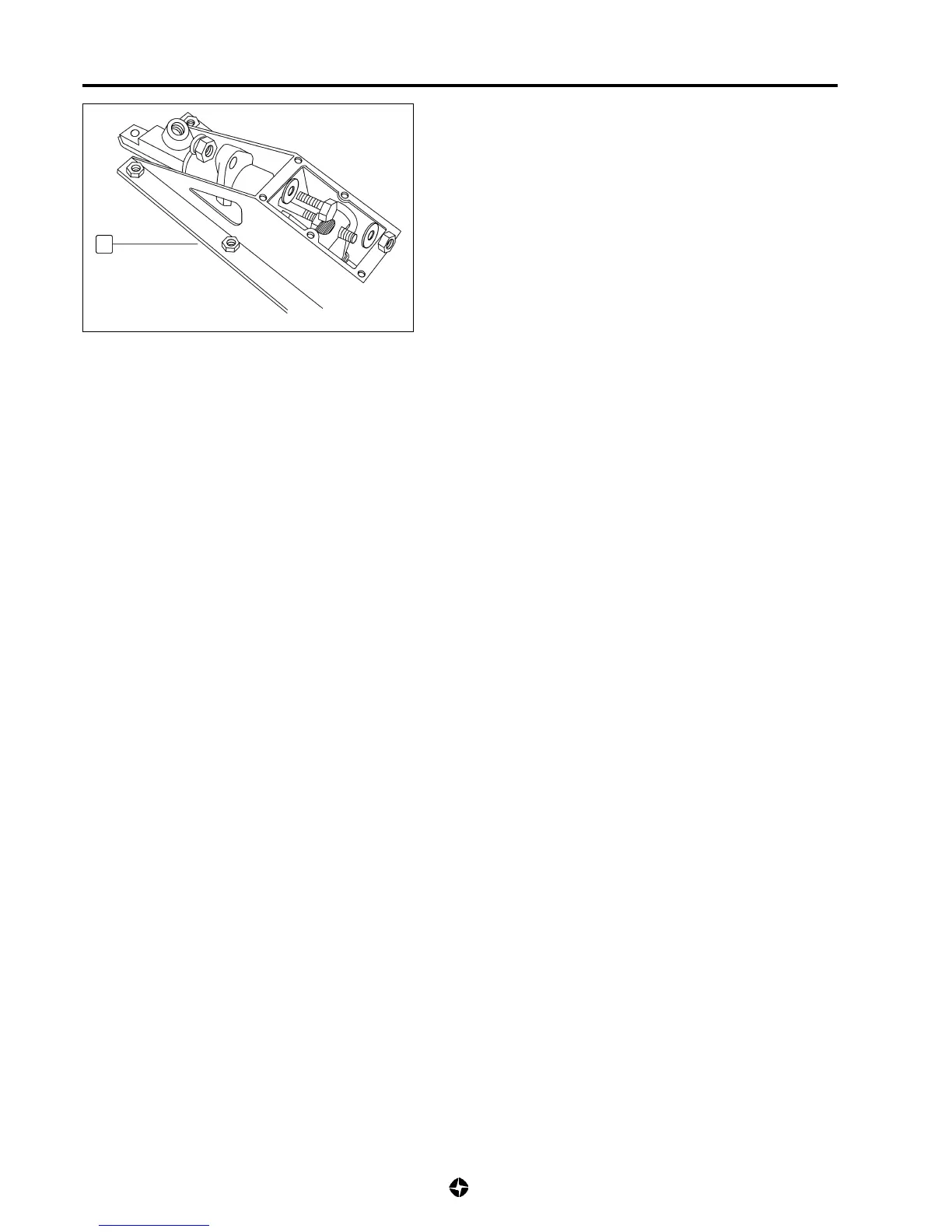

3) Remove support (1) with pedal and cylinder.
4) Clean assembly on a workbench and removing the cylinder
fixing elements from the support and pedal.
Instalation
1) To install the main clutch cylinder, reverse the order of
dismantling, noting the indicated torque and the clutch pe-
dal height adjustment (see 7C-4).
Torque for main cylinder control rod fixing nuts:
2 ÷ 2,5 Kg-m (20 ÷ 25 Nm)
