TRANSFER BOX 7D-21

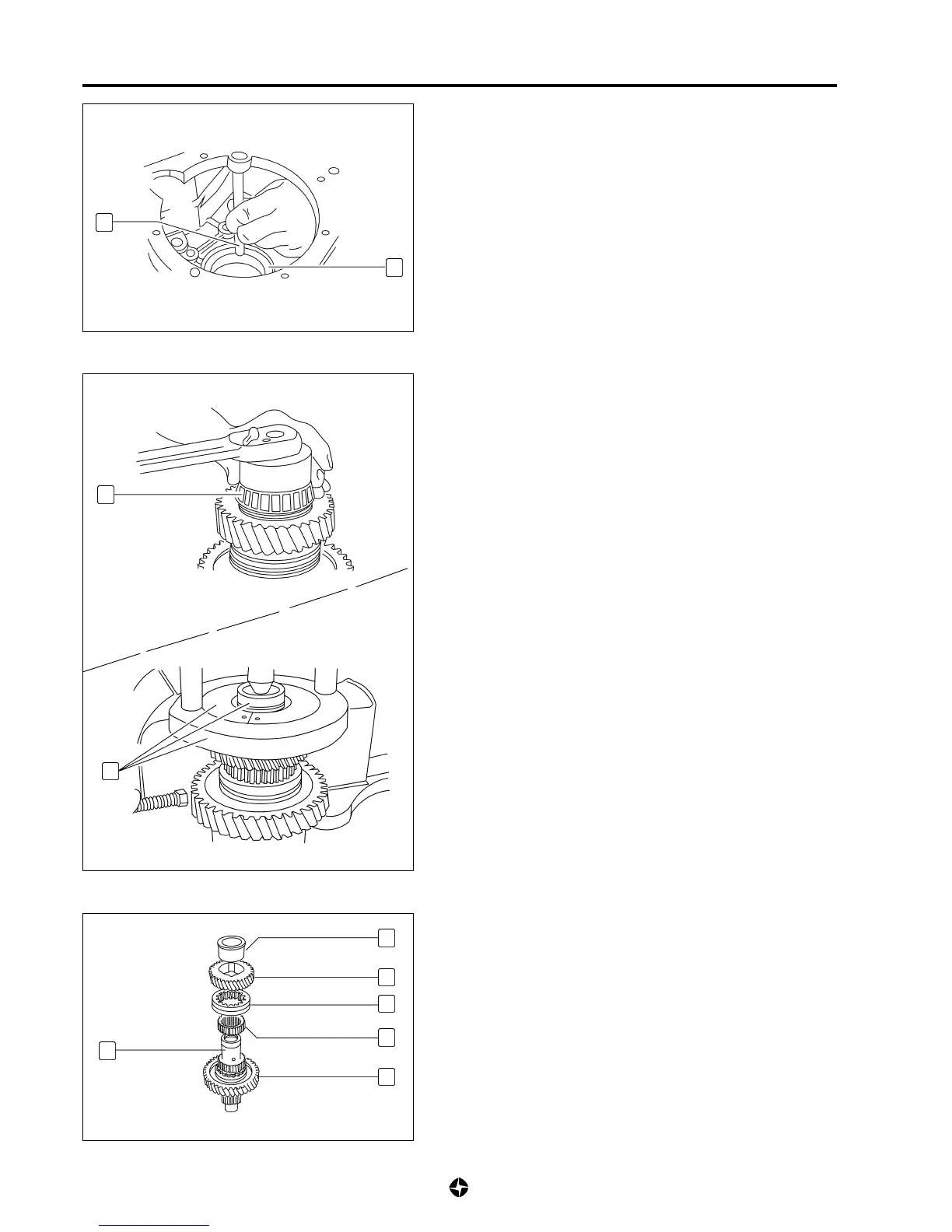

22) Remove output ring (38) from main shaft rear bearing, using
a copper rod (C).
23) To repair the speedometer gear box, (see 7D-12).
C
38
24) Take off the brake for the extreme rear nut which forms the
unit of main shaft gears and remove the aforesaid nut.
25) Remove front and rear bearing (41) from the main shaft, use
a press and conical bearing extractor.
41
D
26) Remove main shaft (39):
• "High" gear bush (42)
• "High" gear (43)
• Moveable sleeve (44)
• Sleeve interior nucleus (45)
• "Low" gear (46).
42
43
44
45
46
39
