7D-22 TRANSFER BOX

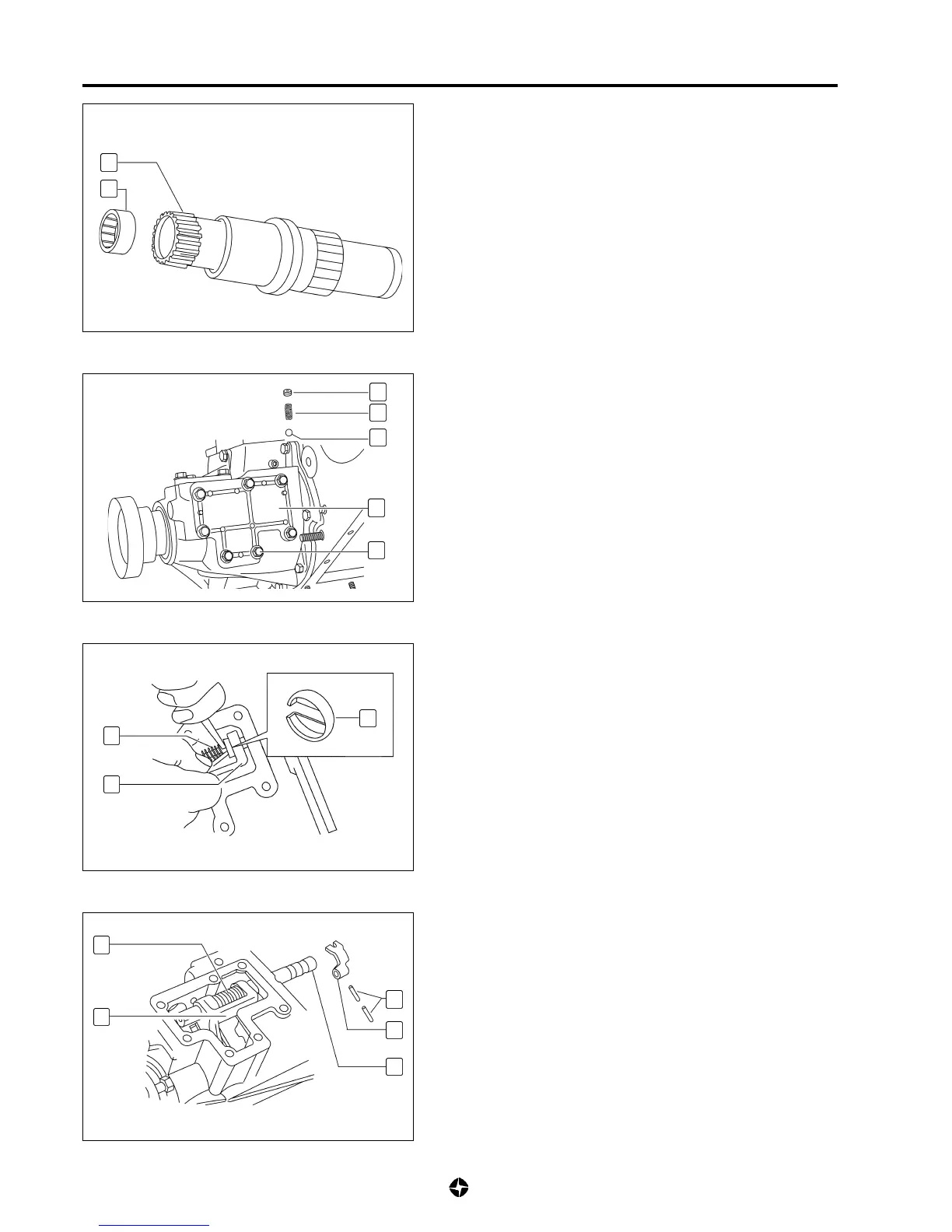

30) Remove, through the central register, retaining washers (54)
found in each extreme spring (55) which drives double traction
selector rod (56).
31) Remove elastic pins (57) which fix double traction selector
yoke (58).
32) Remove:
• Double traction selector shaft (59).
• Spring (55)
• Rod (56)
• Double traction yoke (58).
54
55
56
55
56
59
58
57
28) Take out screws (47) which fix side cover (48) and remove it.
29) Remove hexagonal-headed plug (51), take out spring (52)
and locking ball (53) from double traction shaft.
51
52
53
47
48
27) Take out cog bearing (40) from the shaft front inner side (39),
using a bearing extractor.
40
39
