7D-34 TRANSFER BOX
62) Replace the front oil seal, situating the closing lip towards
the interior of the casing and the rear part flush with assembly
face.
63) Lubricate the closing lip using tool (H) ref. 494688 for the
assembly.
64) Fit the rest of the components in reverse order to the removal,
noting the specified torque for each task.
H
3

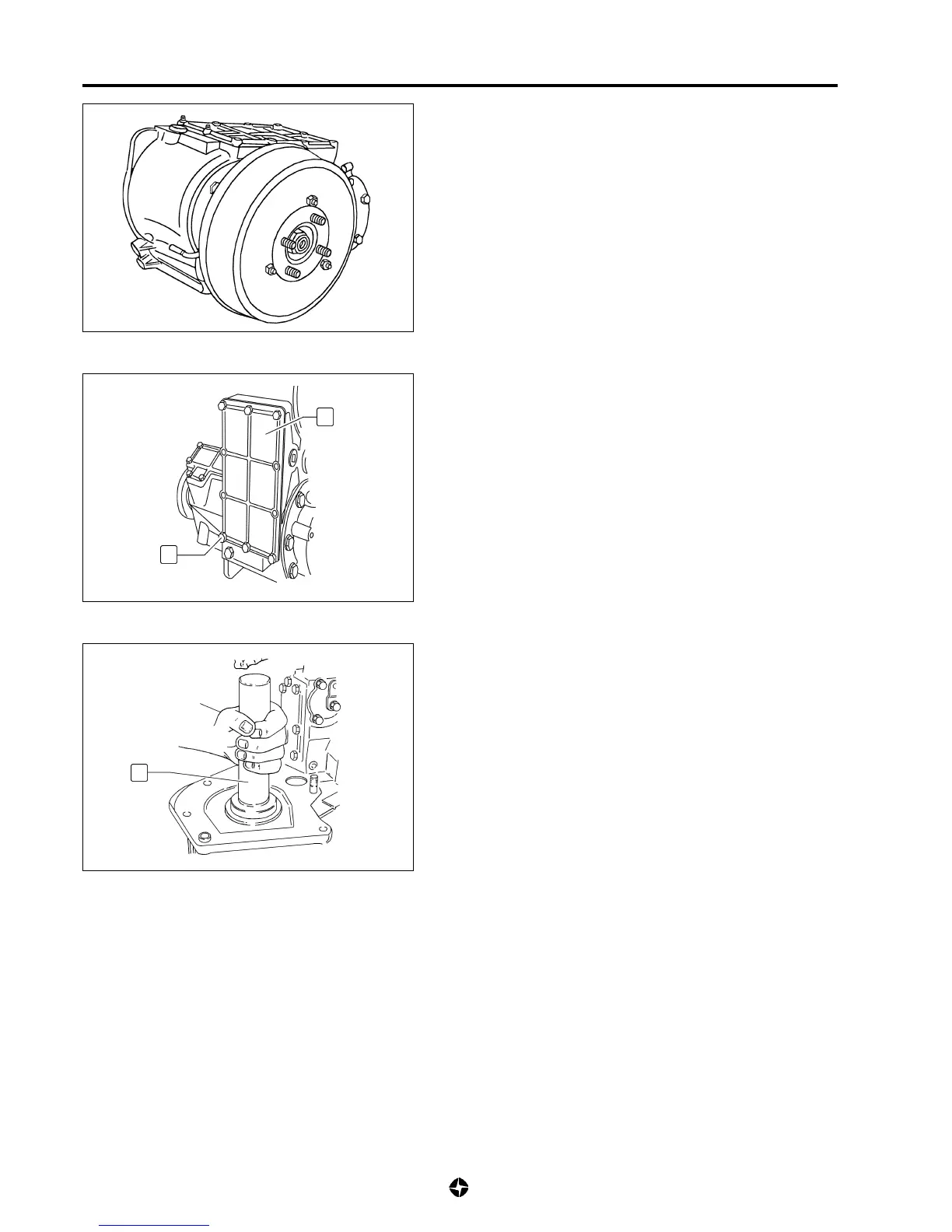

60) Fit brake drum and clamp assembly, fixing it with screws to
the specified torque.
Torque for brake drum and clamp setscrews:
11,75 Kg-m (117,5 Nm)
61) Fit transfer box lower cover (4), applying the recommended
sealant to the joint face of the casing and fix with screws (3)
to the specified torque.
Torque for the lower cover setscrews:
1,5 ÷ 2 Kg-m (15 ÷ 20 Nm)
4
