TRANSFER BOX 7D-33

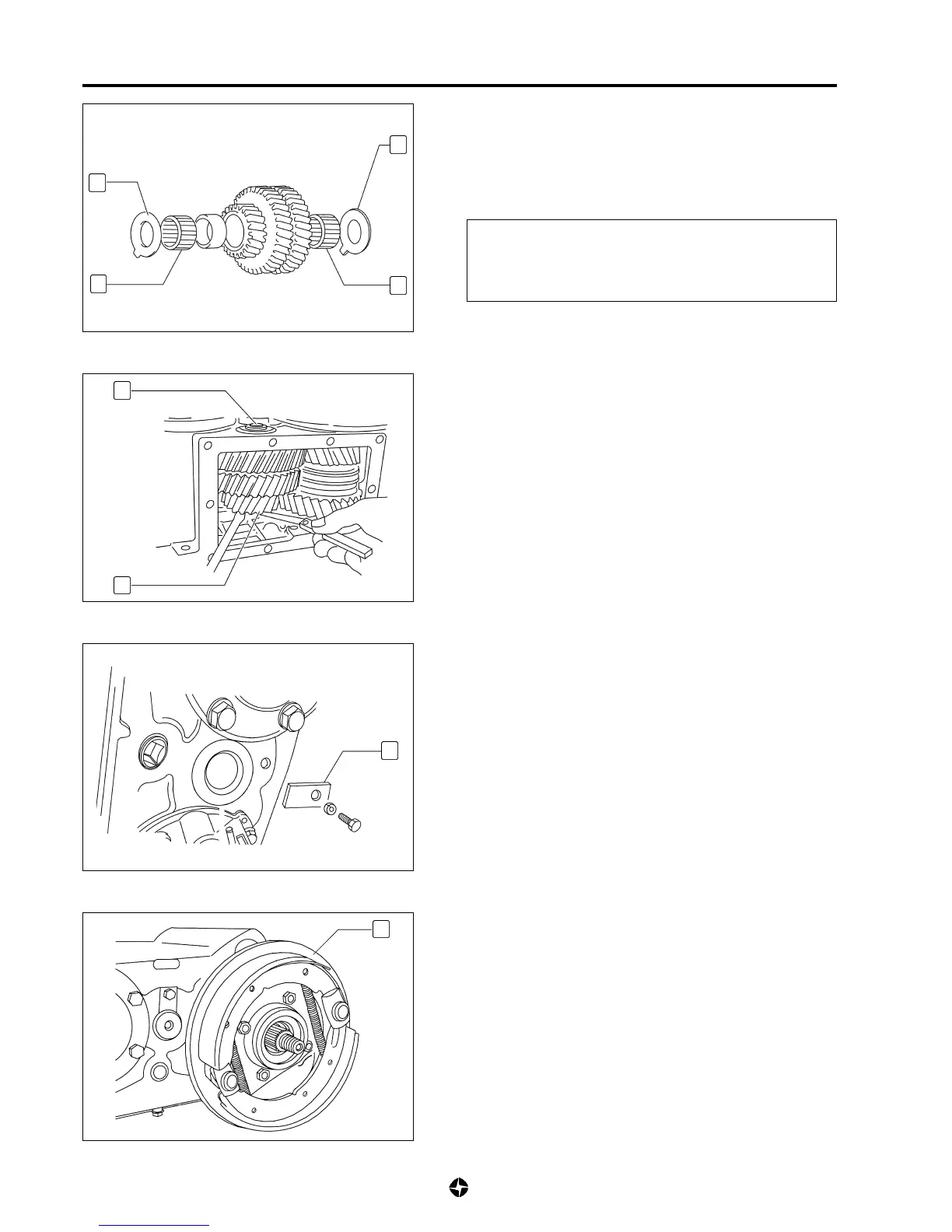

52) Lubricate assembly formed by the gears, bearings and shaft.
53) Apply a layer of grease to both axial washers (10) and place
them in their position in the casing with the bevelling towards
the inside (towards the gears).
54) Situate the gear, bearing and supplement assembly so that
the bearing cage face the centre:
WARNING:
Carry out the assembly of the intermediate gearing
carefully and safely. The difficulty in handling this
part can cause injury to the hands.
55) Install triple intermediate gear (9) and fix it with its shaft (7).
56) Check the axial gear play - this must be within the stipulated
measurement.
Axial play: 0,00 ÷ 0,40 mm
57) If the average play is not within the indicated limits, replace
the axial washers (10).
NOTE:
Make sure that the axial washers are not displaced
during the assembly of the intermediate gear assembly.
10
11
10
11
7
9
1
58) Fit gear shaft with its retaining plate (6), applying the
recommended sealant to the screw thread and tightening it
to the specified torque.
Torque for retaining plate setscrew:
2,2 ÷ 2,8 Kg-m (22 ÷ 28 Nm)
59) Fit shoe-holder plate (1) and oil collector.
