7D-32 TRANSFER BOX
13

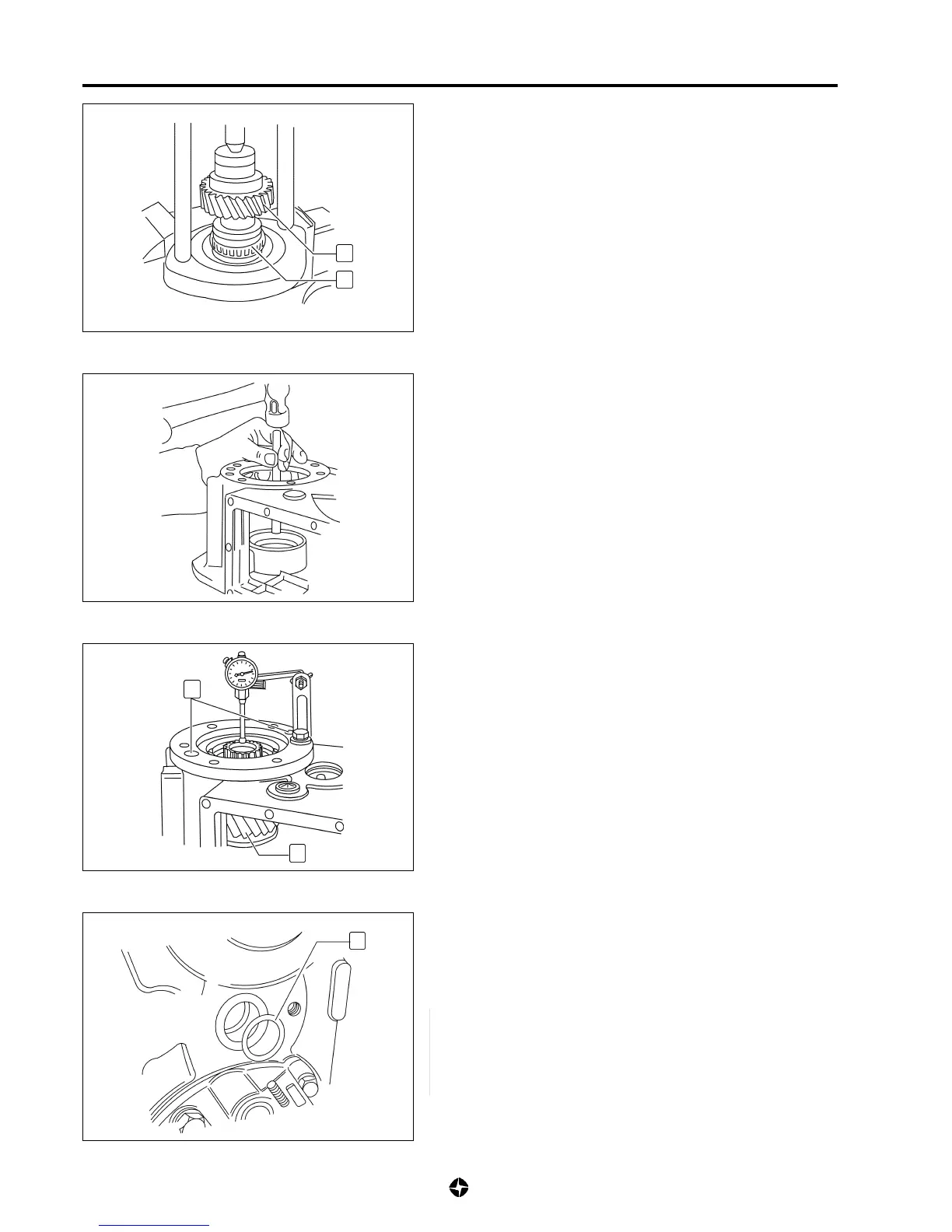

47) Fit drive gear (23) and the rear cover fixed with screws (16)
48) Attach a meter to the gear and measure its longitudinal play.
49) Add to this measurement the corresponding thickness of
the pre-tingten of the bearings.
Pre-tingten thickness:
0,025 ÷ 0,076 mm
50) Look for a washer the same thickness as the play plus the
pre-tingten thickness, place it in the ring in the rear cover
and carry out the final assembly.
51) Fit one new "O" ring (13) in the assembly groove of the
intermediate gear shaft and another in the groove of the shaft
itself.
NOTE:
Apply a layer of grease to both "O" rings.
23
16
45) Fit conical bearings (22) of drive gear (23).
46) Fit drive gear bearing exterior rings to the transfer box ca-
sing and to the support cover to the rear of the gears.
NOTE:
Do not fit the assembly washer between the rear cover and
the exterior ring of the bearing at the moment.
22
23
