7E- 6 DIFFERENTIALS
GENERAL REPAIR OF THE
DIFFERENTIALS
REPAIR OF THE FRONT DIFFERENTIAL
Disassembly
1) Extract the front differential group (see 4A-5).
NOTE:
It is essential to identify with marks those pieces which
work together as well as the assembly position.
2) Install the differential group on a work bench support.

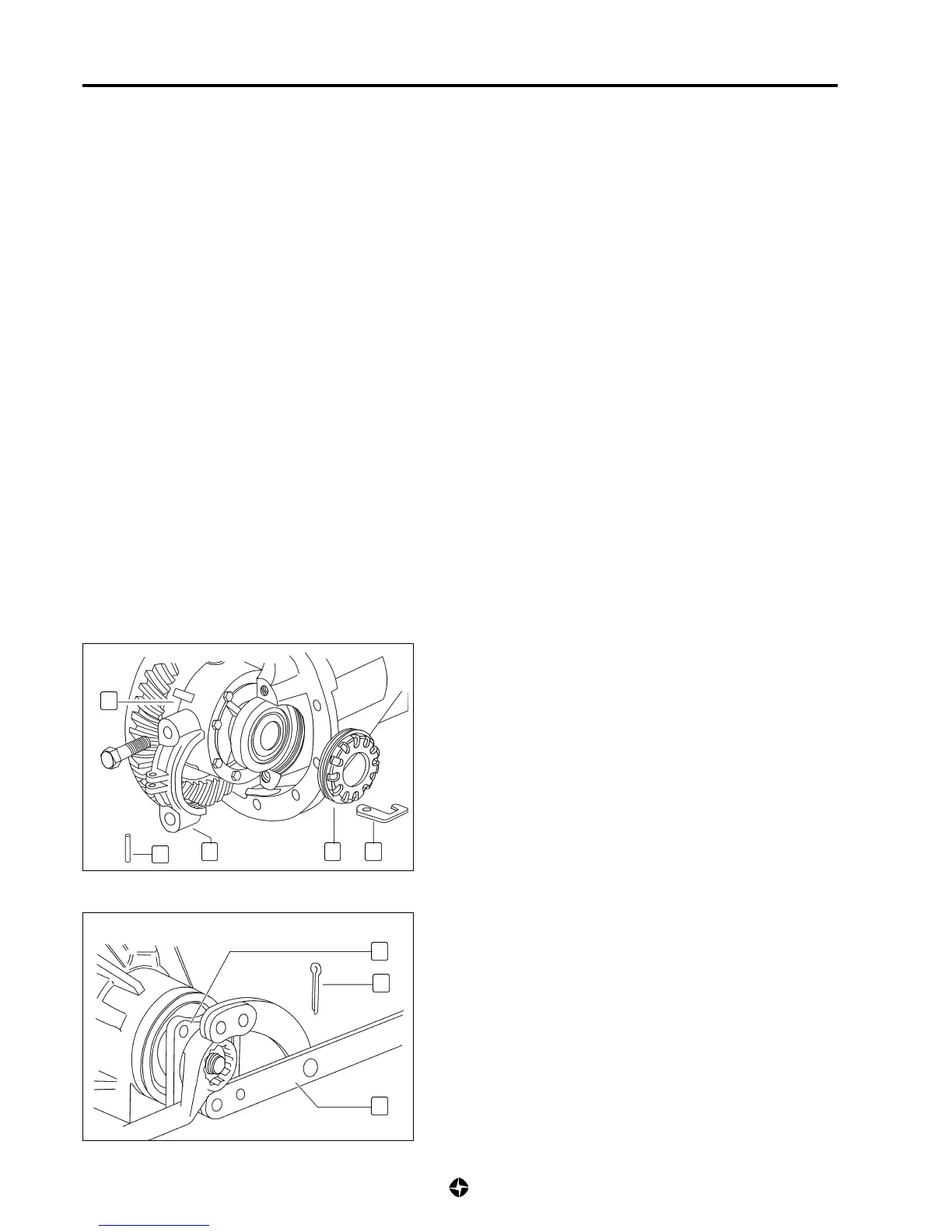

3) Mark the position of the lids (1), extract the brake ensem-
ble (2) and dismantle:
• The lids (1).
• The nuts (3).
• The differential ensemble (4), paying attention to keep in
the right position the external traisls.
4) Dismantle cotter pin (5) from nut fixing the flange
5) Hold flange (6) using tool (A), dismantle nut and extract
flange.
4
2
1 3
2
6
5
A
